Component Feeding

SIPLACE D4 Component Changeover Table

Description

The component changeover

tables are stand-alone mod-

ules that can be set up at an

external set-up area with

feeder modules. Up to four

component changeover

tables may be docked in the

machine. A component

changeover table can be re-

placed with just a short inter-

ruption of the production

process.

The chassis runs smoothly

and is easy to maneuver. The

component table has a

capacity of up to 12 locations

for 3 x 8 mm S tape feeder

modules. The total capacity

with four component

changeover tables is thus

144 x 8 mm tracks. Bulk case

feeder modules, linear vibra-

tory feeders, dipflux mod-

ules, component disposal

modules and waffle-pack tray

holders can all be set up in

addition to the tape feeder

modules. Dummy feeder

modules are used at un-

assigned locations to protect

the operators. The compo-

nent feeders are at rest dur-

ing the placement process -

allowing tapes to be spliced

without stopping the

machine.

Location 1

Location 3

Location 2

Location 4

Component Feeding

Component Changeover Table

Technical Data

Length

Length with handle folded up

Width

711 mm

871 mm

475 mm

Height of bottom edge of table bed for

830 mm PCB conveyor height

900 mm PCB conveyor height

930 mm PCB conveyor height

950 mm PCB conveyor height

680 mm

750 mm

780 mm

800 mm

PCB transport height 830 mm ± 15 mm (standard)

900 mm ± 15 mm (option)

930 mm ± 15 mm (option)

950 mm ± 15 mm (SMEMA option)

Weight

without feeder modules

with feeder module at all locations

75 kg

130 kg

Reel diameter

standard

maximum

up to 432 mm (17“)

483 mm (19“)

Locations for feeder modules max. 12

Changeover time less than 1 min.

Communication

unit

Tape container

Waste container for pieces of used tape

Component

feeder table

Tape container

Waste container for pieces of used tape

Communication unit

Component Feeding

S Tape Feeder Modules

Technical Data

Packag-

ing

Model Loca-

tions

Transport

distance

Max.

height

Paper

and

plastic

tapes

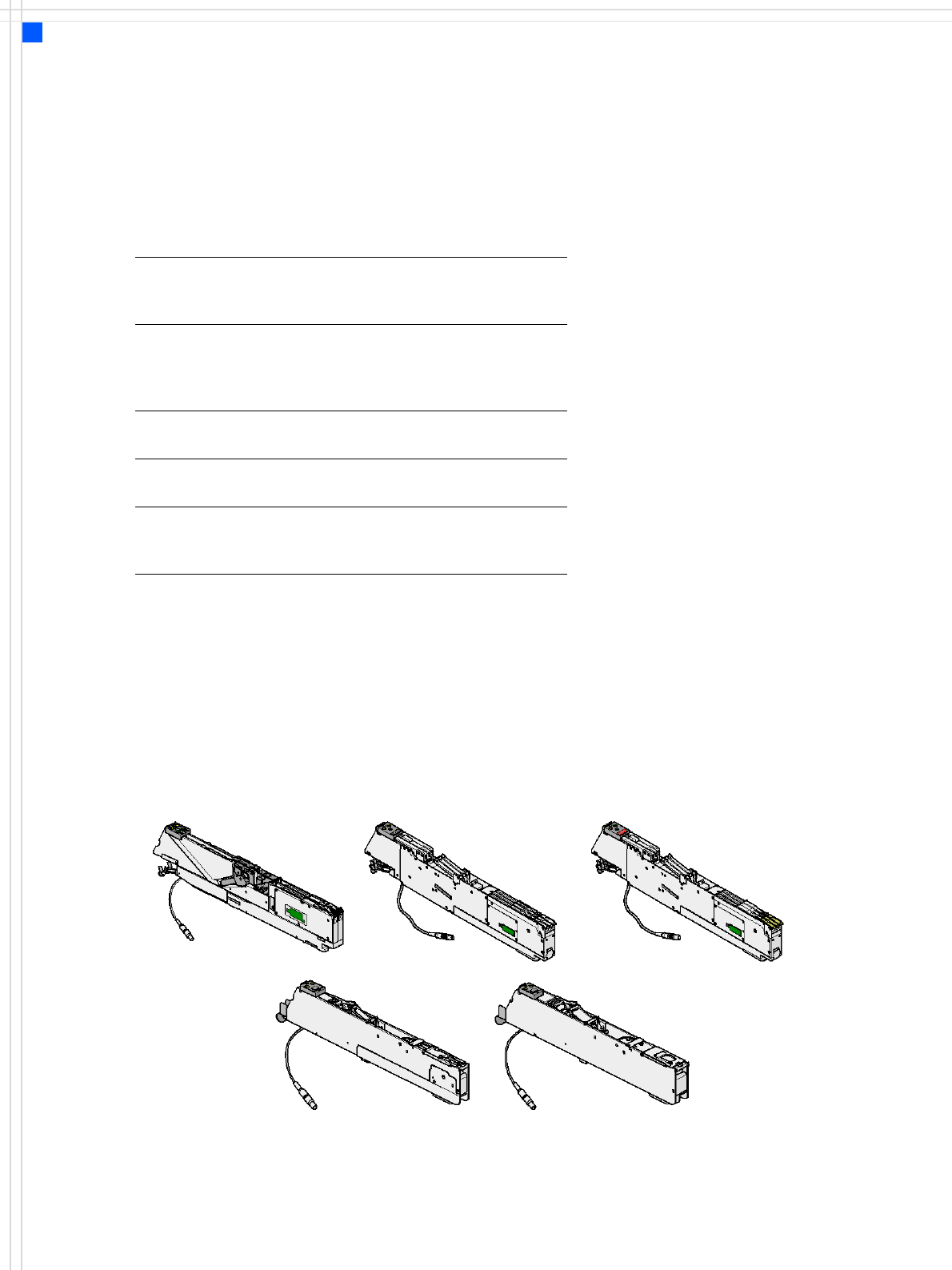

2 x 8 mm S

3 x 8 mm S

1 x 12/16 mm S

2/4 mm

2/4/8 mm

2/4 mm

4/24 mm

2.5 mm

0.7 mm

14 mm

Blister

tapes

1 x 24/32 mm S 1,5 4/40 mm

14 mm

Tape

reels

178 - 483 mm diameter (7" - 19")

Feeder

module

cycle

S feeder modules up to 20 mm transport distance

< 150 ms

a) Fiducial for feeder module position recognition;

b) for 0201 and 0402 only;

c) variable in 4 mm increments.

2 x 8 mm S

3 x 8 mm S

3 x 8 mm S 0201

12/16 mm S

24/32 mm S

A cutting device automati-

cally cuts the used tape.

SIPLACE S feeders have short

cycle times and high-preci-

sion pick-up positions. Even

multiple products and small

batch sizes are easy to handle

since the feeder modules can

be quickly changed over.

Both the tape cycle incre-

ment and the use of tape

materials are variable.

SIPLACE S feeder modules are

suitable for both paper and

plastic tapes. This represents

a significant benefit in terms

of both cost and logistics.

When activated by a signal

from the communication

interface, the feeder modules

automatically control the en-

tire feeder sequence, includ-

ing automatic film tear-off.

Description

The SIPLACE S feeder modules

process component tapes

from 8 to 32 mm wide.

The reels are kept in the tape

container on the component

changeover table.
