New Functions in Setup Center 6.3
Domain-Wide Threshold Settings
48 SIPLACE Setup Center 6.3 SP2
5.8
5.8 Domain-Wide Threshold Settings
Domain-Wide Threshold Settings
Purpose
Up to now, the threshold settings for the component level indicator were entered for the respective lines.
Now, the threshold settings for the component level indicator are configured for the domain.
Function
► Open with Extras => Settings => Lines.

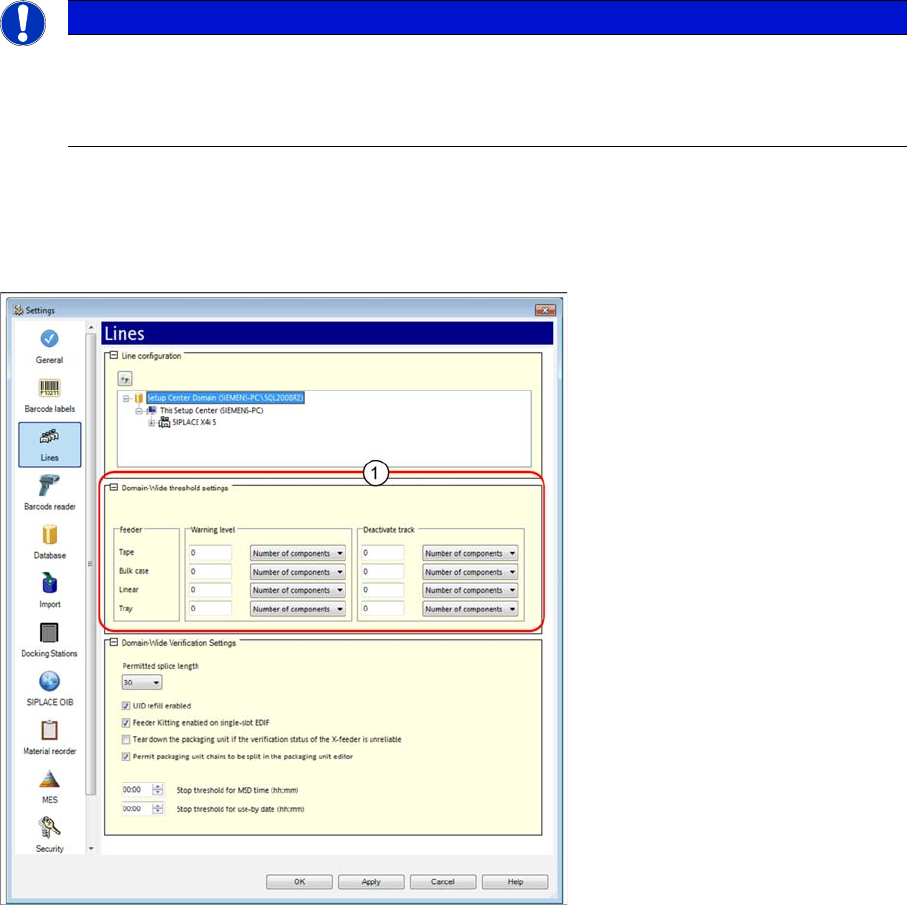

► Open Line configuration and mark a domain. The Domain-Wide Threshold Settings view is dis-
played.
► For detailed information, refer to the user manual "Setup Center 6.3" or the Online Help.
NOTICE
The domain settings are transferred to the lines
The domain settings are transferred and applied to the connected lines and their stations. You
can change these settings individually for each station later on. See also "5.8.1 Adapting
Threshold Settings for Line or Station" [ ➙ 49].
New Functions in Setup Center 6.3
5.8.1 Adapting Threshold Settings for Line or Station Domain-Wide Threshold Settings
SIPLACE Setup Center 6.3 SP2 49
5.8.1
5.8.1 Adapting Threshold Settings for Line or Station
Adapting Threshold Settings for Line or Station
The threshold settings for the component level indicator are configured for the domain by default. This
means that all connected lines and their stations have the same settings. You can, however, adapt these
global threshold settings for single lines or stations.

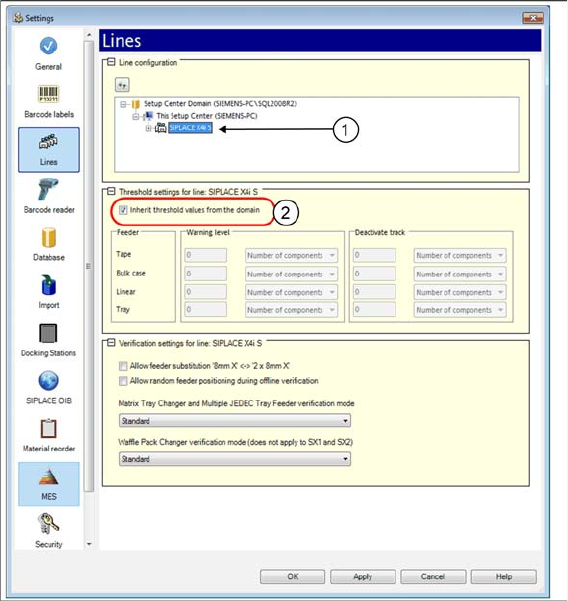

Adapting Threshold Settings for the Line
► Open with Extras => Settings => Lines.
► Open Line configuration and mark the line (1).
⇨ The Threshold settings for the line: view is displayed.
► Disable the Inherit threshold values from the domain option. You can now change the threshold val-
ues for this line.

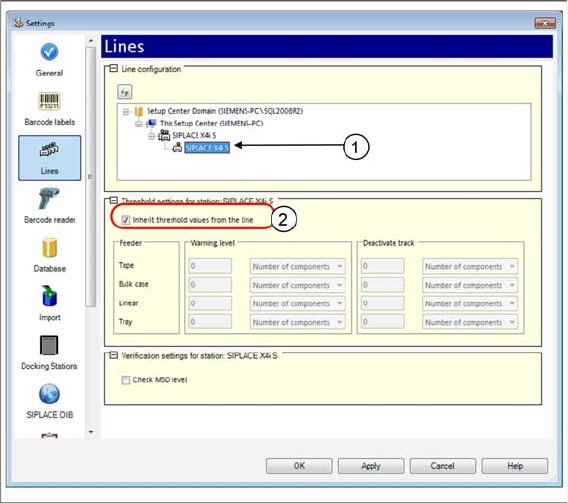

Adapting Threshold Settings for the Station
► Open with Extras => Settings => Lines.
► Open Line configuration and mark the station (1).
New Functions in Setup Center 6.3
Domain-Wide Threshold Settings 5.8.1 Adapting Threshold Settings for Line or Station
50 SIPLACE Setup Center 6.3 SP2
⇨ The Threshold settings for the station: view is displayed.
► Disable the Inherit threshold values from the line option. You can now change the threshold values
for this line.
