TRANSPORT RAILS MODULE
OVERVIEW
16.2 Technical Reference Manual Chapter Issue 6 Oct 06
The transport rails are a programmable width conveyor system, set by the board
product file, which transports the board using belts from the upline machine, into
this machine, where the board is positioned, clamped and printed. After printing
the board is transferred using the same belts to the downline machine.
The heavy board transport rails can transport boards up to 6kg. This is achieved
using an extra drive pulley on each rail and flat profiled transport belts.
CAUTION
CAMERA BOARD STOP.
To prevent damage to the camera board stop the
remote board stop must be used for product boards over 1kg in weight.
NOTE
Information on the remote board stop is detailed in the Rising Table chapter of
this manual.
The transport rails can be fitted with one of the following board clamping
arrangements:
• 250mm Board Clamps
• 500mm Board Clamps
• Board Snugger Assembly
• Foil-less Clamps
Board snuggers are an alternative to the standard board clamps and are utilized
when there is a requirement to print close to the board edge.
Foil-less clamps are utilized for thin pliable boards where there is a requirement
to print close to the board edge. The foil-less clamps are assisted with the use
of a vacuum box beneath the product board.
TRANSPORT RAILS MODULE
OVERVIEW
Chapter Issue 6 Oct 06 Technical Reference Manual 16.3
Figure 16-1 Board Clamping Arrangements
Board
Transport Belts
Rear Snugger Plate
Counterweight Block
Board
Transport Belts
Rear Foil-less Clamp
Foil-less Clamps
Board
Transport Belts
Rear Board Clamp
Board Clamps
Board Snuggers
TRANSPORT RAILS MODULE

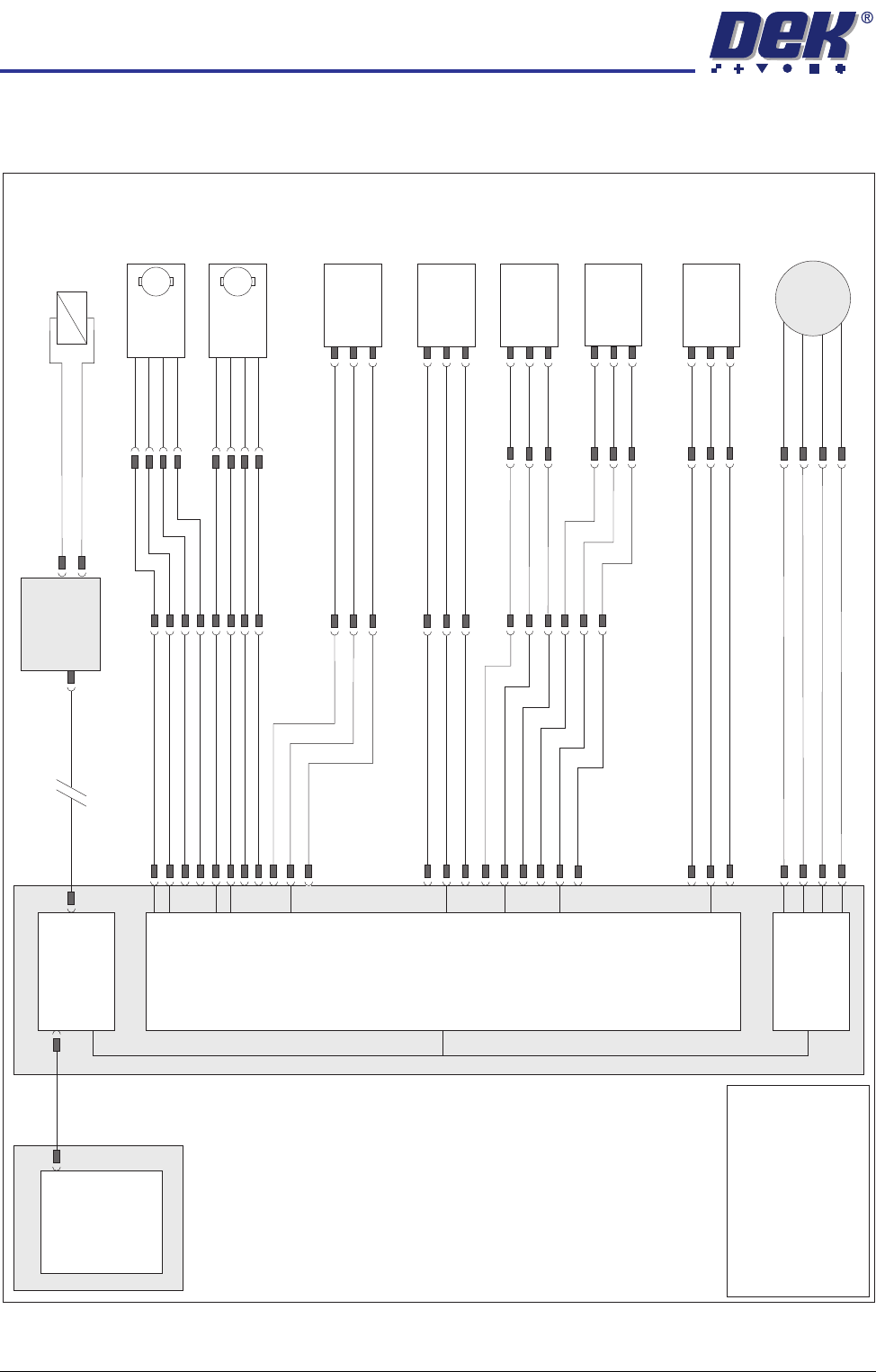

ELECTRICAL SCHEMATIC
16.4 Technical Reference Manual Chapter Issue 6 Oct 06
ELECTRICAL SCHEMATIC
Machine PC
Motherboard
Machine Control Enclosure
Front Belt
Drive (8M03)
Rear Belt
Drive (8M04)
DIG IN 10
DIG IN 11
DIG IN 6
Rail Lift Left
(8SE5)
Board at Right
Sensor (8SE7)
Board at Left
Sensor (8SE8)
8PL10
8PL04
M36PL17
8PL03
Sig
Sig
Sig
+12V
+12V
+12V
0V
0V
0V
8PL12
M36PL22
Moving Rail
Stepper
Motor 2B-
Motor 2A-
Motor 2B+
Motor 2A+
8PL20
8M2
Dual Stepper
X3
NextMove
Interface Card
X4
M
Enable
Direction
24V SW
0V
M
Enable
Direction
24V SW
0V
8SK21
8PL22
8SK23
M36PL18
!DIG OUT 3
DIG OUT 3
DIG OUT 2
DIG OUT 2
NextMove ES
(I/O Node 1)
X5
Board Clamp/
Snugger Solenoid
(16SOL10)
DIG OUT 9
GND
Main Machine
I/O Node 2
N2PL4
CAN Bus
N2SK2
USB
Moving Rail
Home (8SE6)
Sig
8PL26
M36PL19
+12V
0V
DIG IN 5
DIG IN 7
Rail Lift Right
(8SE4)
Sig
+12V
0V
8PL15
NOTE
The breaks in the CAN Bus
chain reflect that additional
I/O Nodes may be fitted,
refer to Machine Control
chapter for the complete
CAN Bus chain.
