TRANSPORT RA ILS MODULE ADJUS TMENT S AND SETT INGS Chapter Issue 6 Oct 06 Technical Reference Manual 16.7 3. Re-adjust the sensitivity contr ol clockwise until the amber LED illuminates. NOTE If the amber LED is fl ashi…
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
16.6 Technical Reference Manual Chapter Issue 6 Oct 06
14. Select Adjust, the following window is displayed:
15. Using the Next, Previous, Incr. and Decr. keys, set the Board Width to
50mm.
16. Select Exit.
17. Select Drive Rail To Board Width, the rear rail moves to the new board
width.
18. Repeat Steps 10 and 11 for setting the vane at the 50mm width. Lock the
adjusting screws.
19. Select Home Rail Width.
20. Select Run Diagnost, the rear rail moves to the home position.
21. Repeat Steps 10 and 11 at the home position, adjust vanes if necessary.
22. Select Cycle Rails.
23. Select Run Diagnost, ensure the sensors LED are On over the full travel of
the rail.

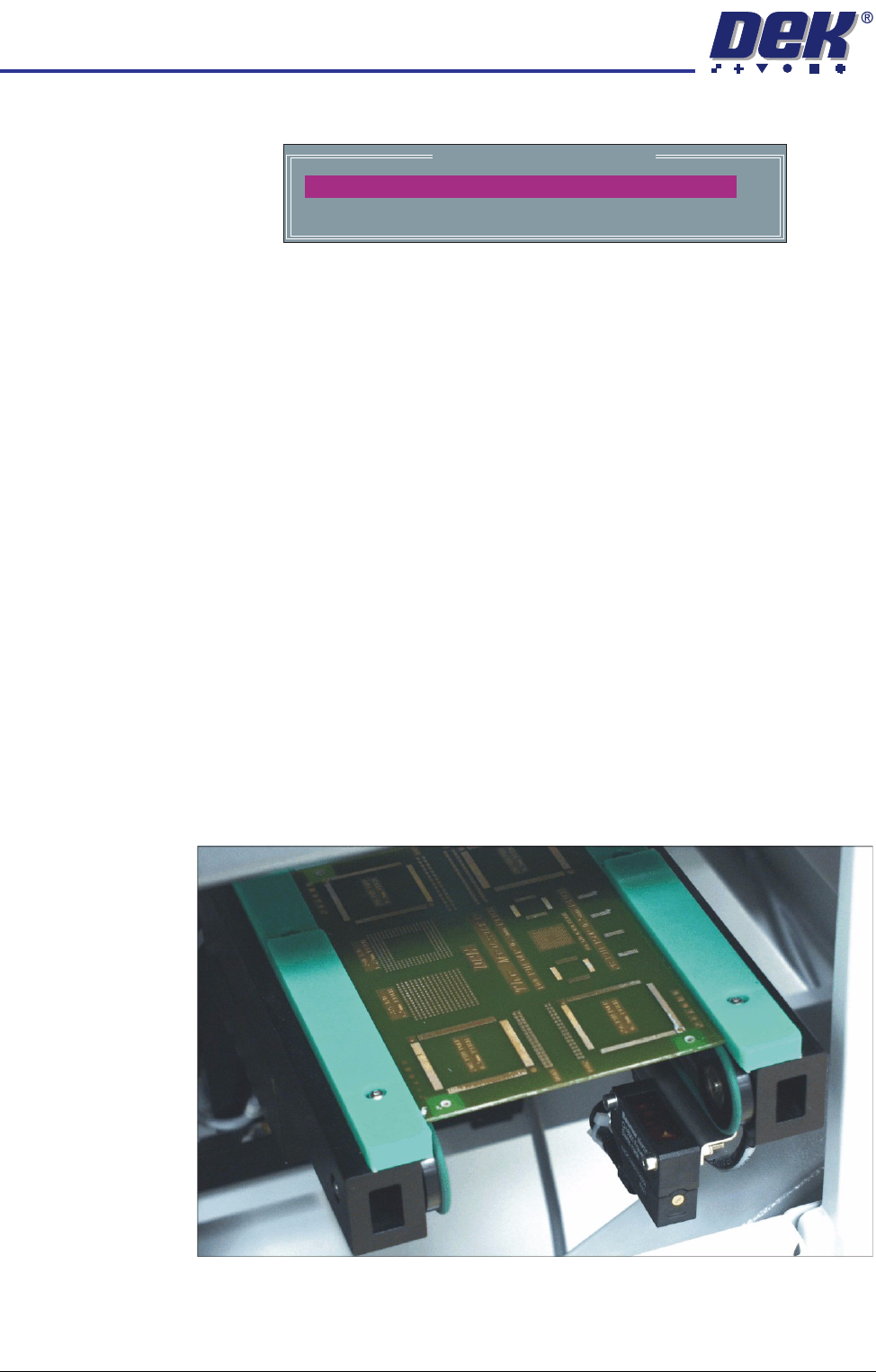

Board at Left/Right
Optos
When fitted to the machine rails the diffuse sensors switching threshold can be
adjusted by means of a sensitivity control switch. This ensures that when a
board is fed into the machine (via the transport belts) the sensor output switches
to ON.
To achieve an optimum setting carry out the following procedure:
1. Place a board on the rails covering the sensor.
2. Turn the sensitivity control fully anti-clockwise, ensure that the amber LED
is extinguished.
Rail System Test Parameters
BOARD WIDTH
CYCLE COUNT
250.0
50
mm
Cycles
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 6 Oct 06 Technical Reference Manual 16.7
3. Re-adjust the sensitivity control clockwise until the amber LED illuminates.
NOTE
If the amber LED is flashing, this indicates a week signal. Re-adjust the
sensitivity control.
4. Remove the board from the rails and confirm that the amber LED extin-
guishes.
5. Turn the board 90° and position back onto the rail system, (so that the board
lies on top of the rail system as shown in the figure below).
6. Confirm that the amber LED is extinguished. If the amber LED illuminates,
turn the sensitivity control anti-clockwise until the amber LED extinguishes.
7. Remove the board.
8. Position the board back on the rail system, as in Step 1, and confirm that the
amber LED illuminates.
9. Remove the board from the rails and confirm that the amber LED extin-
guishes.
10. This completes the adjustment. If the board has holes or cut-outs, continue
with this procedure.
11. Slide the board backward and forward across the sensor ensuring that the
LED is only triggered by the leading and trailing edges of the board.
12. If the LED flickers when encountering holes or cut-outs, turn the sensitivity
control clockwise a further quarter turn.
13. Repeat Steps 11 and 12 until the correct setting is achieved.
14. Remove the board from the rails and confirm that the amber LED extin-
guishes.
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
16.8 Technical Reference Manual Chapter Issue 6 Oct 06
Front Rail Parallelism
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
NOTE
The Front Rail Parallelism is factory set and shouldn’t normally need to be
adjusted.
1. In Rising Table Diagnostics, select Raise Table to Vision Height.
2. In Rail System Diagnostics, select Toggle Board Clamp, to release the
clamps.
3. Open the front printhead cover/shutter.
4. Remove the board clamp from the front transport rail.
5. Using feeler gauges from the underside of the front rail, check the gap
between the belt support plate and the main rail, as close as possible to both
linear guides. Make a note of the measured gaps (0.65mm ±0.15mm).
View on Top of Front Rail
View on Underside of Front Rail
Linear Guide
Feeler Gauge
(in 2 positions)
Belt Support Plate
Main Rail
