15 Description The SIPLACE Bulk Case feeder with 2 tracks is used to handle components packaged in standar d bulk containers. It transports rec- tangular and cylindrical passive components to the pick up area of the mach…
14
Description
The tape reels of the feeder mod-
ules are accommodated in the tape
container of the component
changeover table. A cutter auto-
matically chops up empty tape
when it comes out.
Feeder modules used on SIPLACE
are distinguished by a short cycle
time and a highly accurate pick-up
position. The feeder pitch is easily
adjustable. Thanks to the general
purpose tape feeder modules
which are equally suitable for pa-
per and blister tapes, a small range
of module types is sufficient. This
is a decisive advantage for invest-
ment and logistics. Once activated
by a signal from the component
table, the modules control the en-
tire feeder operation of the auto-
matic strip removal all by them-
selves.
The feeders series feature very
short cycle times and they can
handle tapes with 2 mm grids
(8 mm S). 8 mm S and
12 / 16 mm S are equipped
with component cover.
Component Supply:
Tape Feeder
Technical Data
Packaging Model Feeder
locations
Transport
distance
Max. Height
of component
Paper and
blister tapes
2 x 8 mm S
a
3 x 8 mm S
3 x 8 mm S
b
12/16 mm S
1
1
1
1
2 or 4 mm
2 or 4 mm
2 mm
4 - 12 mm
c
2.5 mm
2.5 mm
0.7 mm
14 mm
Blister tape 24/32 mm S 1.5 4 - 32 mm
c
14 mm
Tape reels Ø 7" to 19" (178 - 470 mm)
a) Fiducial for recognition of position of feeders;
b) only for 0201 and 0402;
c) adjustable in increments of 4 mm.

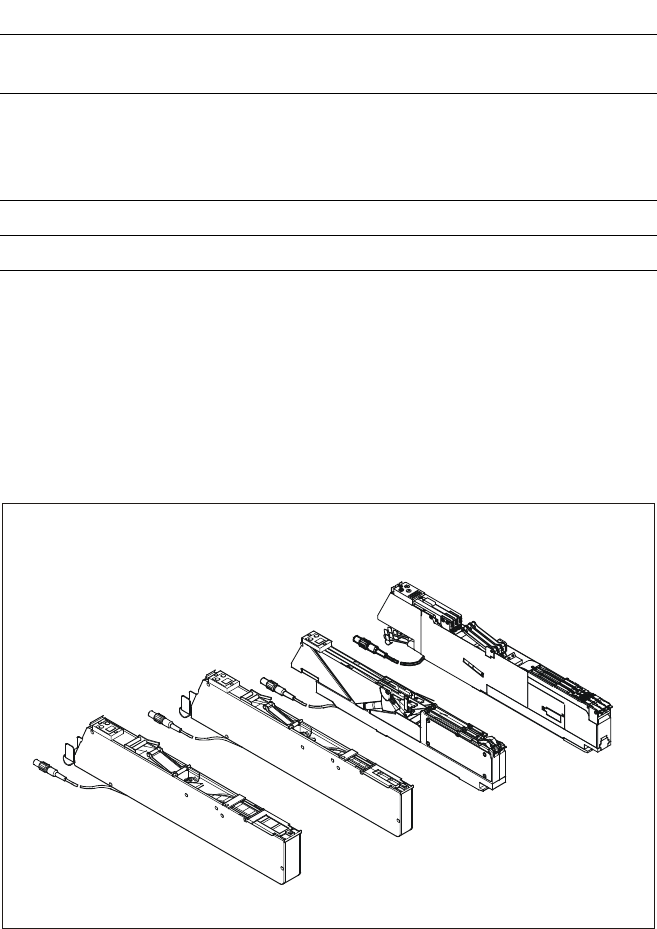

Tape Feeder Modules S
24 / 32 mm S
12 / 16 mm S
3 x 8 mm S
2 x 8 mm S
15
Description
The SIPLACE Bulk Case feeder
with 2 tracks is used to handle
components packaged in standard
bulk containers. It transports rec-
tangular and cylindrical passive
components to the pick up area of
the machine. To replenish the sup-
ply, the Bulk Cases are removed
and replaced outside the machine
eliminating stoppages for replen-
ishment.
Essentially, this feeder module
consists of a base which holds 2
feeder rails. The components are
separated and transported through
the feeder rail via compressed air.
The principle of stationary compo-
nent tables has been tried and
tested specifically with Bulk Case
components. Vibrations, which de-
veloped when other placement
methods are used may cause wear
to the components compromising
quality and reliability of the com-
ponents.
Component Supply:
Bulk Case Feeder
Technical Data
Bulk Case feeder
a
Packaging form Bulk Case
Feed rails for: Chip 0402 component height 0.35 mm
Chip 0402 component height 0.50 mm
Chip 0603 component height 0.45 mm
Chip 0603 component height 0.80 mm
Chip 0805 component height 0.45 mm
Chip 0805 component height 0.60 mm
Chip 0805 component height 0.85 mm
Chip 0805 component height 1.25 mm
Mini-Melf
Feeder location 1 feeder location for 2 different compo-
nent types
a) Reference mark to recognize the position of feeder.
Bulk Case Feeder
Bulk Case Feeder
16
Description
Some local safety requirements
dictate that all feeder locations
must be equipped with feeders.
If the feeder set-up does not fill all
feeder locations, guards may be
used in place of the modules.
SAFETY
WARNING
Component Supply:
Guard for Feeder Locations
1
3
2
Various Guards for Feeder Locations
The following guard-variants can be used:
1 SIPLACE guard for 1 location
2 SIPLACE guard for 6 - 10 locations
3 SIPLACE guard for 11 - 20 locations
