29 Technical Data: Connections Power Supply 5 m cable with CEKON-connector 3 x 16 A PC + LAN + Signal In terface Compressed Air PCB Transpor t Direction Connectio ns and Energy Required Mains voltage requirement 219/380 …
28
Technical Data:

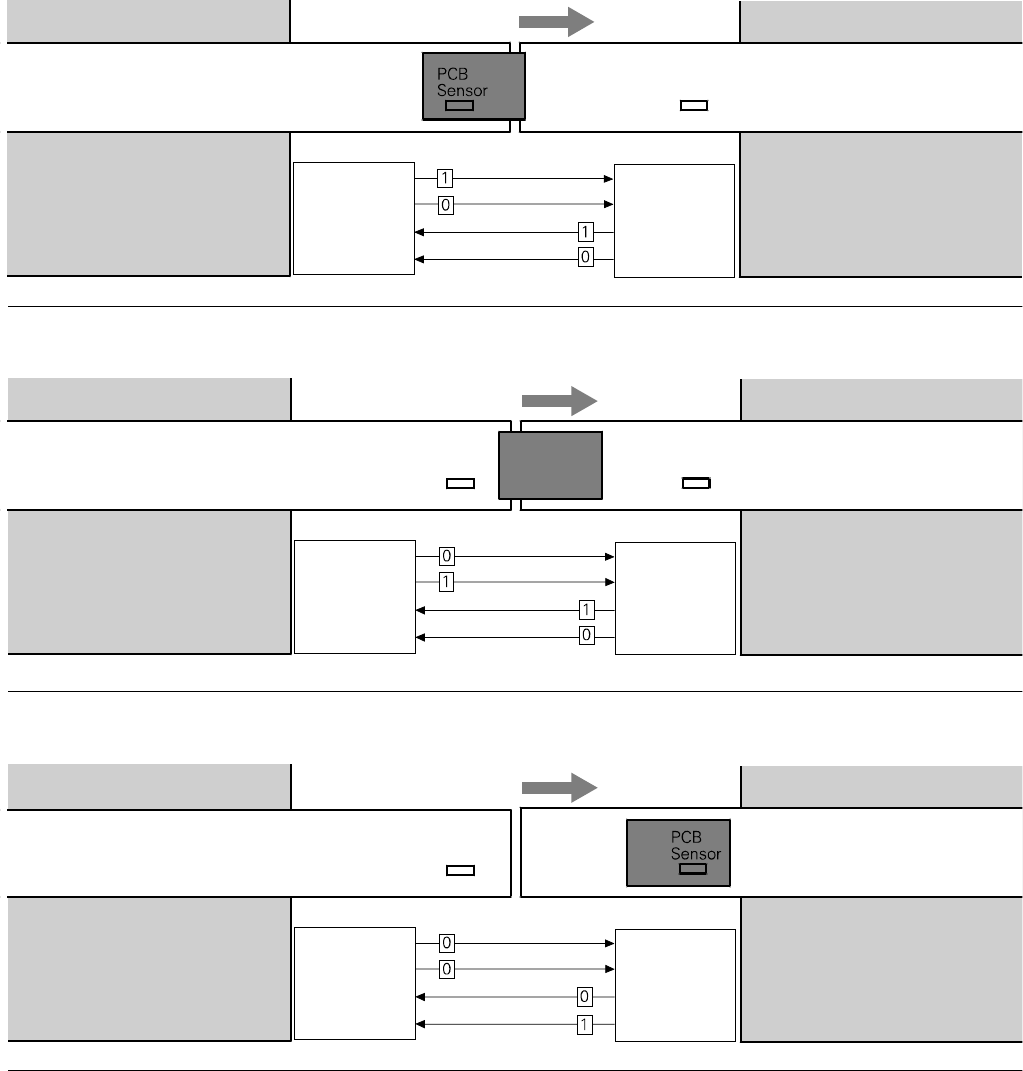

Signal Interfaces
2. PCB handling has started
Conveyor 1 is On Conveyor 2 is On
Transport Direction
Conveyor Section 1
Conveyor Section 2
Station n
delivers PCB
to station n+1
Station n+1
waits for PCB
from station n
Requirement
Delivery
Permission
Receiva
l
Requirement
Delivery
Permission
Receiva
l
PCB
Sensor
Transport Direction
Conveyor Section 1
PCB
Sensor
Conveyor Section 2
Station n
has just
delivered PCB
Station n+1
waits for PCB from
station n, but has
not received it
Requirement
Delivery
Permission
Receiva
l
Requirement
Delivery
Permission
Receiva
l
PCB
Sensor
3. PCB is at delivery
Conveyor 1 is Off Conveyor 2 is On
Conveyor 1 is Off Conveyor 2 is On
Transport Direction
Conveyor Section 1
PCB
Sensor
Conveyor Section 2
Station n Station n+1
has just received
the PCB
Requirement
Delivery
Permission
Receiva
l
Requirement
Delivery
Permission
Receiva
l
4. PCB transport is finished
29
Technical Data:
Connections
Power Supply
5 m cable with
CEKON-connector
3 x 16 A
PC
+ LAN
+ Signal Interface
Compressed Air
PCB Transport
Direction
Connections and Energy Required
Mains voltage requirement
219/380 V
∼ / 230/400 V∼ / 239/415 V∼ /
133/230 V
∼ / 117/204 V∼ ± 5%, 50/60Hz
Power 4 kW
Circuit braker 3 x 16 A (380 / 400 / 415)
3 x 32 A (204 / 230)
Power outage max. 20 ms
Compressed air requirements
6.5 - 10 bar, 950 Nl/min, Tube
3
/4"
Compressed Air Specification
Particles: max. particle size by density,
based on ISO/DIS 8573-1 Class
Particle size
Particle density
0.1
µm
0.1 mg/m³
Dew: Pressure dewpoint
Dewpoint
Class 4
+ 3° C
Oil: Max. oil content
Particle density
Class 1
0.01 mg/m³
30
Technical Data:
Dimensions and Set-Up Conditions
Values
Length 2385 mm
Width 2860 mm
Height with warning lamp 1700 mm standard height / 830 mm
1770 mm optional / 900 mm
1800 mm optional / 930 mm
1820 mm SMEMA height / 950 mm
a
Weight of basic model 2800 kg
Weight fully equipped 3500 kg
Room temperature
Humidity
Between 15° and 35°C
30 - 80%, on average not higher than
45%, so that no condensation can ever
form on the machine
Maximum noise development 74 dB
A
a) SMEMA interface can be adopted by software.
2385
Compressed Air
SIPLACE HS-50
1700
1541
800
2202
2860
with Tape
Container
PCB Conveyor Height
830
± 15 mm (standard)
900
± 15 mm (option)
930
± 15 mm (option)
950
± 15 mm (option)
SMEMA
All Units in mm
Power
Supply
Handle
to handle
PCB Transport Direction
Foot height 120 mm
2920
