SMT Software Engineering Group IM Operations Y AMAHA MOT OR CO.,L TD MDOC-SO FT50035 18/34 ＯＫ ＮＧ +0 ﾟ +180 ﾟ 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 9.3. C heck Global Lead Bend Suitable for perf or…
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
17/34
ＯＫ
ＮＧ
9. SOP
9.1. Side Lead Fitting
Suitable for SOP components where the lead reflection is uneven, with
recognition not possible in the "Normal" algorithm.
When the end lead is detected, the positional relationship of the leads is
checked, and the pairing that most closely matches the component definition is
selected in order to increase the recognition rate.
Particular parameter
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
9.2. Check Upside-Down
Suitable for top/bottom judgments at SOP components.
Near the lead tip and base pitches are compared to
check for upside-down components. This recognition
algorithm is effective when using a single camera. In
multi-camera formats, recognition is possible by lining the
leads up in the N/S direction.
Particular parameter
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
18/34
ＯＫ
ＮＧ
+0
ﾟ
+180
ﾟ
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5

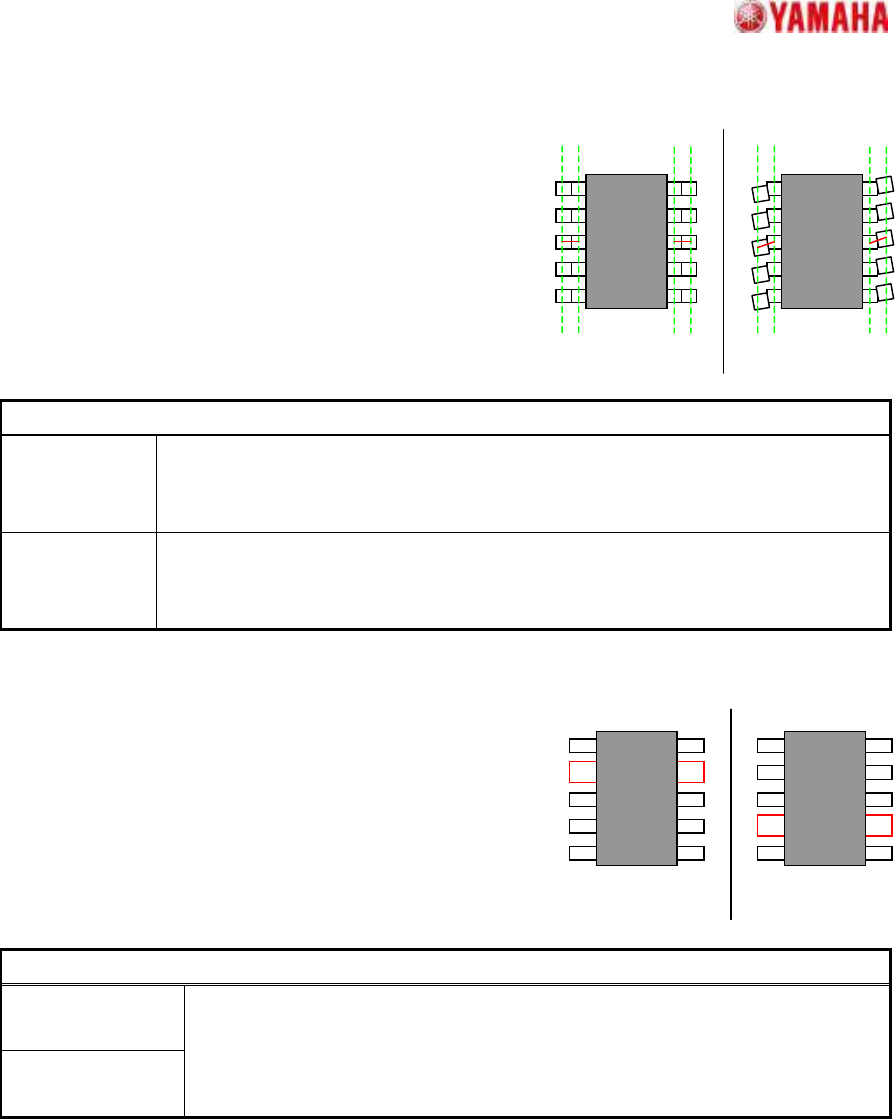

9.3. Check Global Lead Bend
Suitable for performing an overall-lead-bend check at
SOP components.
The overall bends of the lead rows are determined by
measuring near the lead tips and base to determine the
deviation from the row center. An error occurs if the
both-side bend angle total (absolute value) exceeds the
specified tolerance value.
Particular parameters
Lead Bend
Tolerance
(deg)
If the measured degree of total lead bend is larger than the value set up here, it
becomes an error. If 0, 5 will be set.
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
9.4. Direction Check by Lead Width
Suitable for determining the direction of SOP components
with polarity leads.
The component direction is determined by the position of
the wide lead in the lead row.
Particular parameters
Position of Wide
Lead W
Position of Wide
Lead E
It is specified where the broad leads are. “0” is specified when a broad lead
does not exist in the target direction. When “0” is specified in both parameters,
the direction check is not performed.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
19/34
9.5. Check Lead Position
Suitable for SOP components lead position checks.
The defined shape and the recognized shape are
compared and the position of the lead is checked.
Particular parameters
Lead Position
Tolerance
(mm)
The defined shape and the recognized shape are compared, and if it is larger
than value of set tolerance, it becomes an error.
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
Ｏ Ｋ
Ｏ ＫＯ Ｋ
Ｏ Ｋ ＮＧ
