SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
19/34

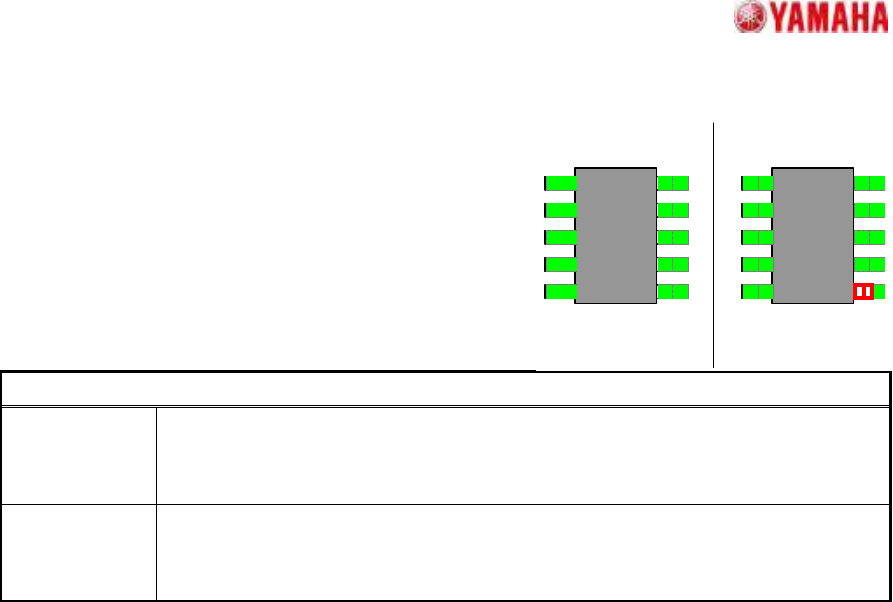

9.5. Check Lead Position
Suitable for SOP components lead position checks.
The defined shape and the recognized shape are
compared and the position of the lead is checked.
Particular parameters
Lead Position
Tolerance
(mm)
The defined shape and the recognized shape are compared, and if it is larger
than value of set tolerance, it becomes an error.
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
Ｏ Ｋ
Ｏ ＫＯ Ｋ
Ｏ Ｋ ＮＧ
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
20/34
10. QFP
10.1. Side Lead Fitting
Suitable for QFP components where the lead reflection is uneven, with
recognition not possible in the "Normal" algorithm.
When the end lead is detected, the positional relationship of the leads is
checked, and the pairing that most closely matches the component
definition is selected in order to increase the recognition rate.
Particular parameter
Excessive
Lead Check
If “Check” is specified, when the component whose lead pitch and width are same
and which have excessive leads is supplied, it becomes an error. In “No Check”,
the check is not performed.
10.2. Check Lead Length
Suitable for QFP component lead length checks.
The check is performed to verify that the difference between each lead
end and a straight line connecting the lead ends is within the "Lead
Length Tolerance" range.
Particular parameter
Lead Length
Tolerance (mm)
If the difference between the straight line which applied at the tip of leads and
each lead tip is larger than the value set up here, it becomes an error.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO.,LTD
MDOC-SOFT50035
21/34
11. PLCC
11.1. Side Lead Fitting
Suitable for PLCC components where the lead reflection is uneven, with
recognition not possible in the "Normal" algorithm.
When the end lead is detected, the positional relationship of the leads is
checked, and the pairing that most closely matches the component definition is
selected in order to increase the recognition rate.
Particular parameters
Lead Search The position used as the datum
of positioning is specified. In the case of
"Top", outward lead tip section is detected, and in the case of "Root", inner
lead tip section is detected.
Excessive Lead
Check
If “Check” is specified, when the component whose lead pitch and width are
same and which have excessive leads is supplied, it becomes an error. In “No
Check”, the check is not performed.
Lead Search Filter
The amount of application of luminescent spot removal is specified.
Right Angle Fitting
The extraction method of side leads is specified. If “Off”, the extraction method
by the usual distance relation is applied. If “On”, the method which give priority
to the degree of rectangular cross of two sides is applied. Usually, it specified
“Off”. When the right side leads which have the section with luminosity
unevenness are hard to be detected, if “On” is specified, a recognition rate will
increase.
