Brief Description
Sequence of the Placement Head Exchange Disassembly Sequence
52 Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP
Sequence of the Placement Head Exchange
2.5 Sequence of the Placement Head Exchange
Disassembly Sequence

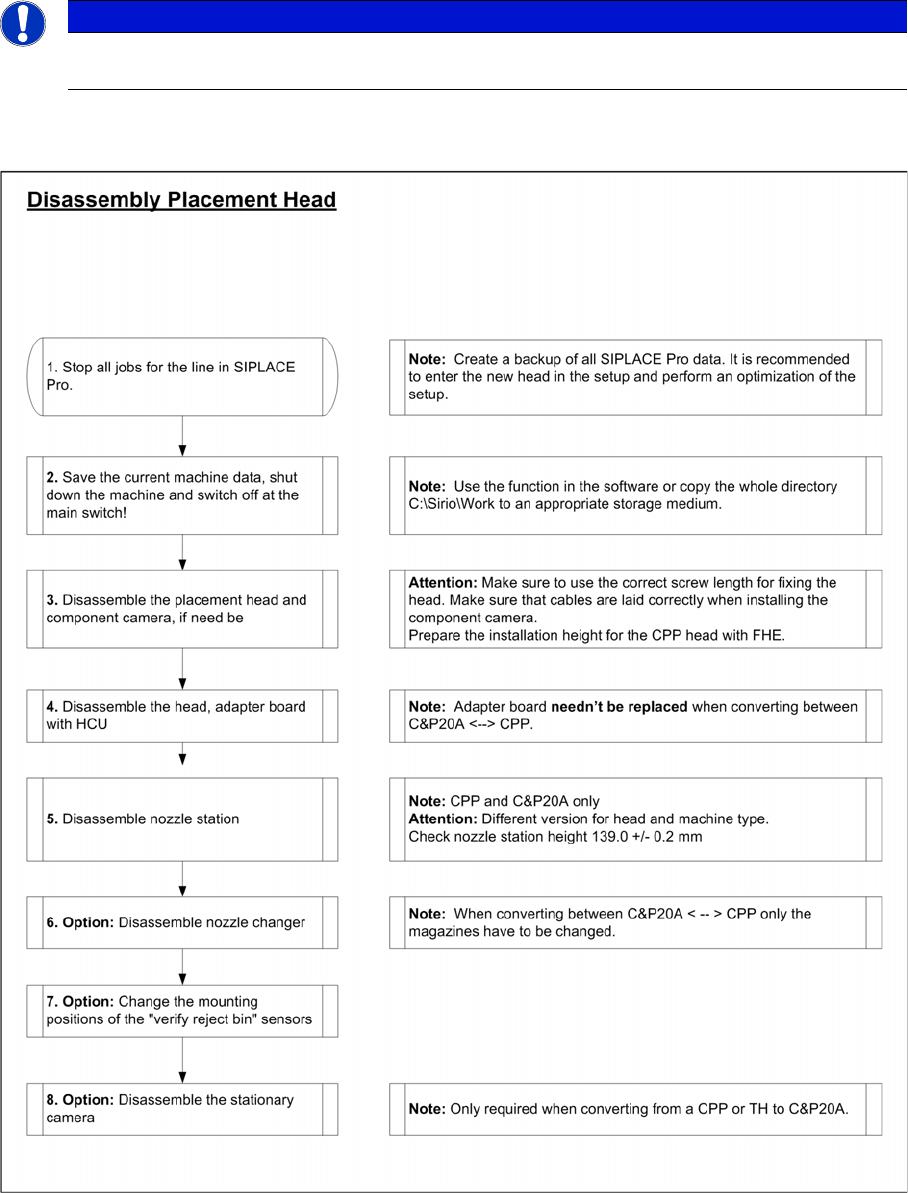

2.5.1 Disassembly Sequence
NOTICE
The flow charts describe the general procedure for switching between different placement head
types on SX1/2 machines from SW70x.
Brief Description
Assembly Sequence Sequence of the Placement Head Exchange
Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP 53
Assembly Sequence

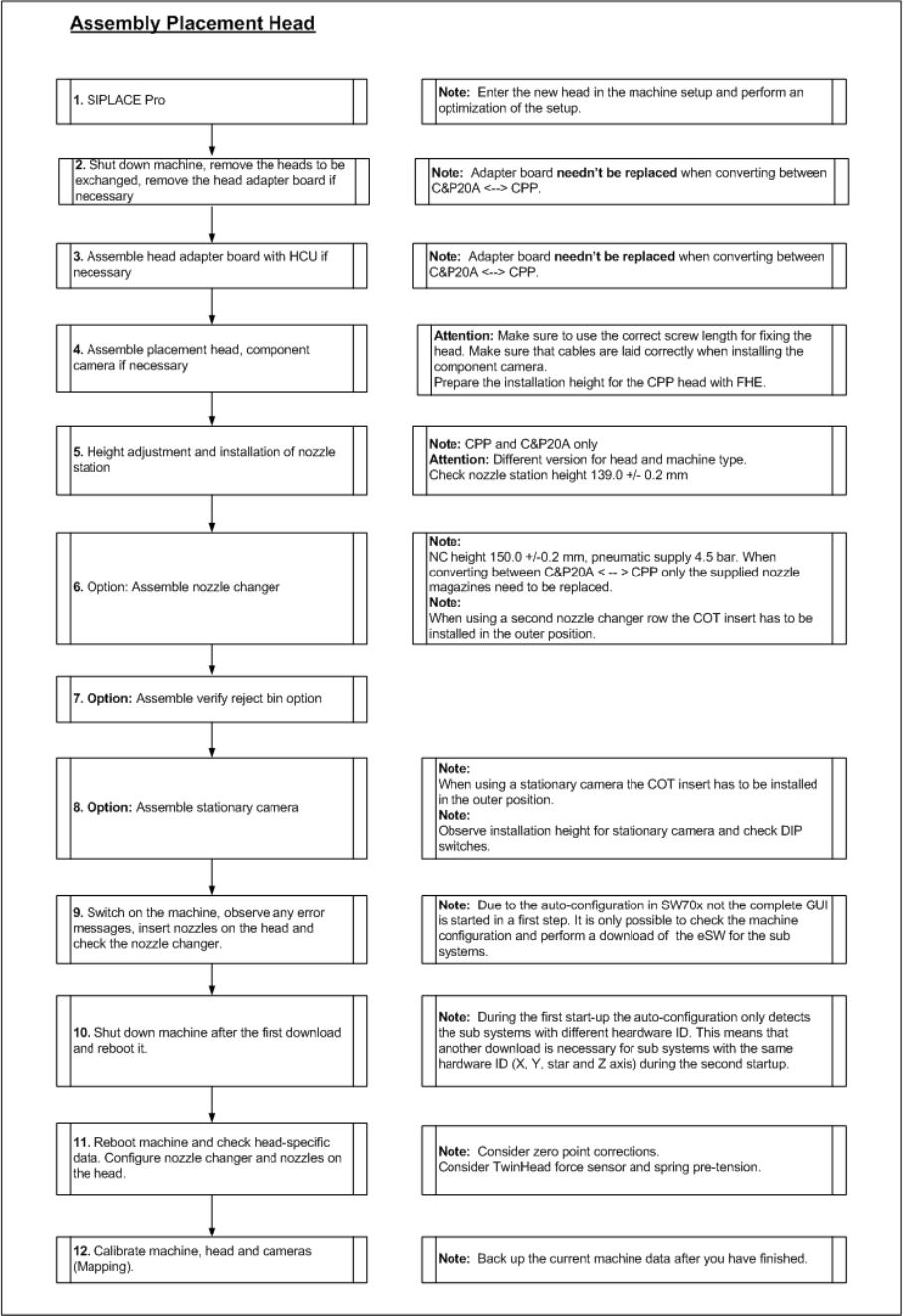

2.5.2 Assembly Sequence
Brief Description
Sequence of the Placement Head Exchange Assembly Sequence
54 Assembly Instructions / Montageanleitung Head Reconfiguration Kit CPP
