Installation Manual for Windows Vista (unattended setup) 11/2007 US+DE
Installationsanleitung für Windows Vista (unattended setup)
5.1.6 User Configuration
The following dialog is displayed:
Fig. 6 User Configuration
→ Enter the user name.
→ Enter the company name.
→ Click the Next button to continue.
5.1.7 Hardware Configuration
The following dialog is displayed:
Fig. 7 Hardware Configuration
If you want to change the configuration of an option, click on the Configure button.
If you want to reset the configuration, click on the Reset button.
→ Click the Next button when the configuration is finished.
11 / 36
Installation Manual for Windows Vista (unattended setup) 11/2007 US+DE
Installationsanleitung für Windows Vista (unattended setup)
1. Hard Disk Configuration
To change the default partition configuration of the first hard disk, click on the button Configure of the option
Harddisk Configuration.

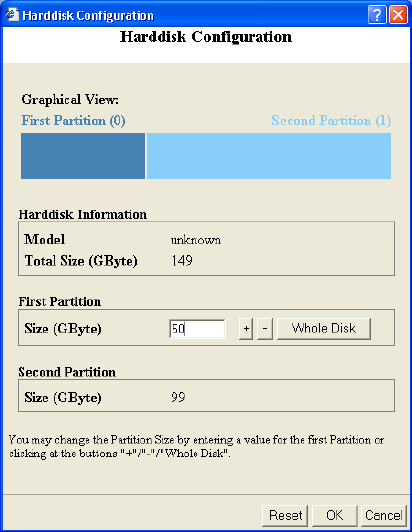

Fig. 8 Hard Disk Configuration
Your settings are displayed in the graphical view.
→ Enter the size of the first partition in the field Size. You can change the value by using the “+/-” button or enter
the value directly.
→ If you want to use the whole disk with only one partition, click on the Whole Disk button.
→ Click the OK button to apply your changes.
→ If you want to reset the default settings, click the Reset button.
→ If you want to cancel configuration and return to the main page, click the Cancel button.
2. Network Configuration
To change the default network configuration, click on the button Configure of the option Network Configuration.
12 36 /
Installation Manual for Windows Vista (unattended setup) 11/2007 US+DE
Installationsanleitung für Windows Vista (unattended setup)

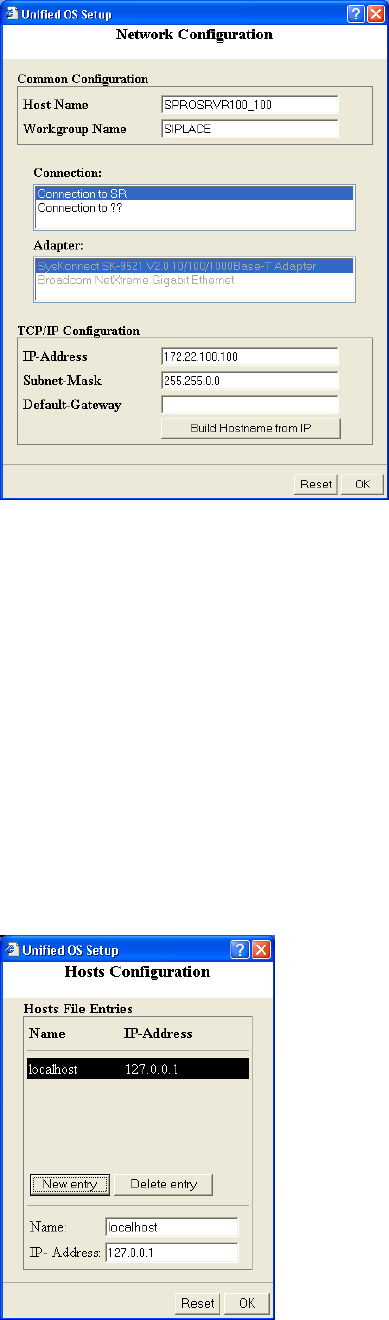

Fig. 9 Network Configuration
→ Enter the host name of your computer.
→ Enter the workgroup name.
→ Select the connection you want to configure.
→ Enter the IP address for the selected connection.
→ Enter the subnet mask for the selected connection.
→ Enter the default gateway for the selected connection.
→ If you want to extend the current hostname with the last two values of the IP address of the selected
connection, click on the button Build Hostname from IP
→ Click the OK button to apply your changes.
→ If you want to reset the default settings, click the Reset button.
3. Hosts Configuration
To change the entries of the hosts file, click on the button Configure of the option Hosts Configuration.
Fig. 10 Hosts Configuration
→ Select the entry.
13 / 37
