Technical data
D39489 | Date 12/2019
3. Technical data
Appliance size 29 49 101
Appliance width D [mm] 550 550 710
Appliance height E [mm] 600 680 760
Appliance depth F [mm] 400 480 550
Depth of door lock [mm] 38
Weight without/with pump [kg] 25 / 33 30 / 38 41 / 49
Power [W]* 140
Current consumption [A]* 1,9
*All other technical data can be found in the operating and installation manual for the KNF pump which follows
4. Spare parts and service
In the event of a malfunction or if the pre-installed membrane vacuum pump requires mainte-
nance or service work, contact the Customer Service department at Memmert.
The spare parts required for complete maintenance of the pump head are available from
Memmert under the following order number:
► E07534 spare parts kit for membrane
5. Maintenance and cleaning
Depending on the customer process, condensate may accumulate in the collection con-
tainer of the pump module. No condensate can be sucked in by the pump. Check and
empty the container regularly.
5.1 Emptying the collection container
1. Unscrew and remove the ducts from the collection
container.
2. Remove the collection container from the holder
and empty it.
3. Insert the collection container into the holder and
attach the ducts.
11
Operating and installation information
D39489 | Date 12/2019
6. Operating and installation information
Information about the assembly and functionality of the pre-installed KNF vacuum pump
N950.50 KNE-W can be found in the manufacturer’s original operating manual (provided).
12
Operating and installation information
D39489 | Date 12/2019

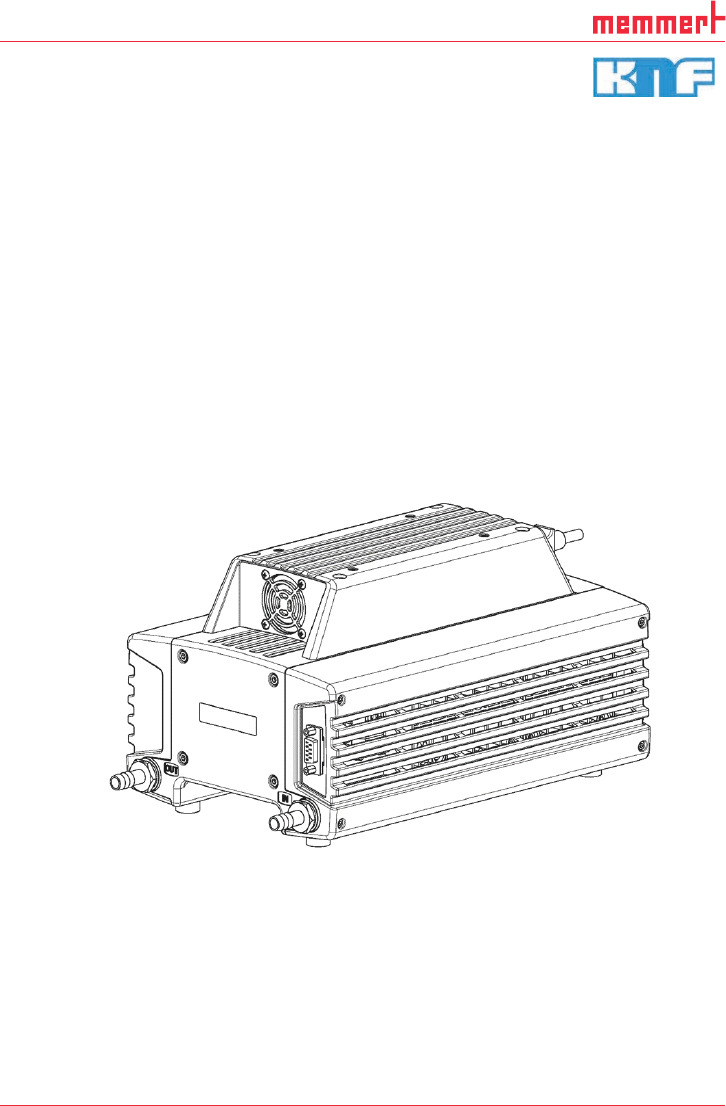

KNF 125530-316634 06/18
LAB
PJ25481-950.50.18
TRANSLATION OF ORIGINAL INSTALLATION
INSTRUCTIONS
ENGLISH
DIAPHRAGM PUMP
Note!
Before operating the pump and the accessories, please read the operating instructions and pay attention to
the safety precautions!
