8
Putting into operation
D39489 | Date 12/2019
2. Putting into operation
When operating the appliance for the first time, do not leave it unattended until it has
reached a steady state.
2.1 Connecting the vacuum pump
Connect the vacuum pump’s 230 V plug
with earthing contact to the internal socket
in the pump module.
2.2 Connecting the appliance
For connection, please observe the national regulations. Observe the connection and power
ratings (see nameplate and technical data).
Make sure to establish a safe PE conductor
connection. Place the power cable so that
► It is easily accessible at all times and can
be pulled out quickly, for example in
case of a malfunction or emergency;
► It does not represent a trip hazard;
► It cannot come into contact with any
hot parts.
NOTICE
9
Putting into operation
D39489 | Date 12/2019
2.3 Connecting the vacuum pump to the VO
The connection for the signal lead (left)
and the connection for the vacuum hose
(right) can be found at the rear of the
PM.
Connect the vacuum oven and the pump
module to the signal lead and the vac-
uum hose as described in the operating
manual for the MEMMERT vacuum oven.
2.4 Switching on
1. Press the main switch for the vacuum pump.
2. Press the main switch for the pump module.
10
Technical data
D39489 | Date 12/2019

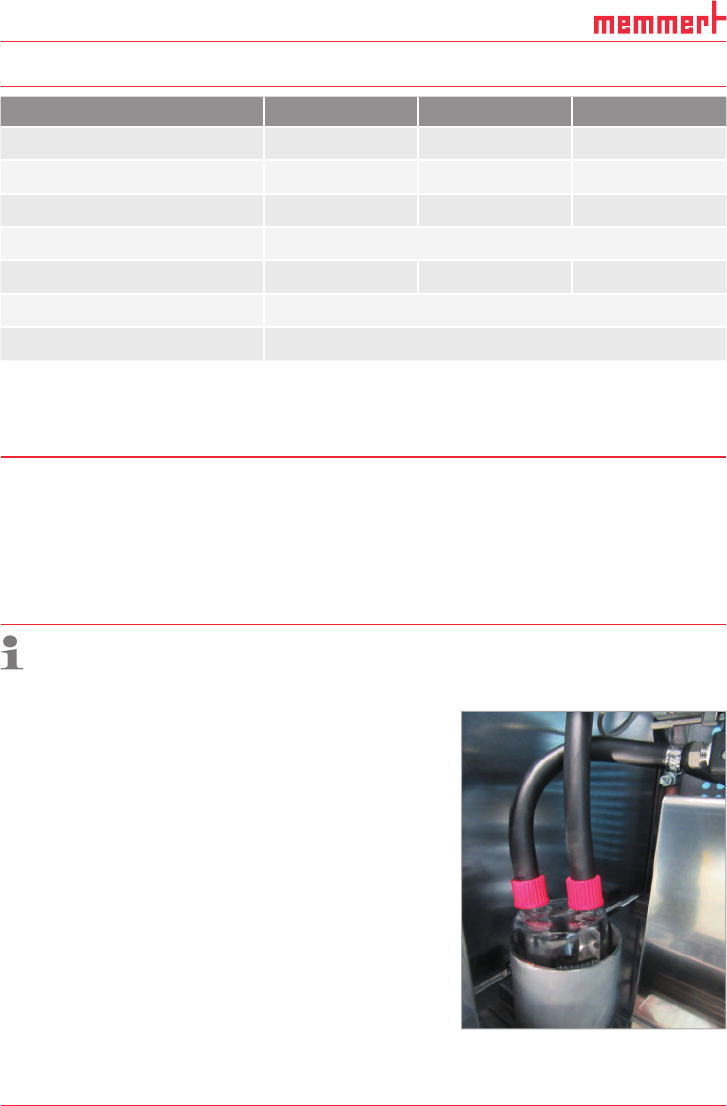

3. Technical data
Appliance size 29 49 101
Appliance width D [mm] 550 550 710
Appliance height E [mm] 600 680 760
Appliance depth F [mm] 400 480 550
Depth of door lock [mm] 38
Weight without/with pump [kg] 25 / 33 30 / 38 41 / 49
Power [W]* 140
Current consumption [A]* 1,9
*All other technical data can be found in the operating and installation manual for the KNF pump which follows
4. Spare parts and service
In the event of a malfunction or if the pre-installed membrane vacuum pump requires mainte-
nance or service work, contact the Customer Service department at Memmert.
The spare parts required for complete maintenance of the pump head are available from
Memmert under the following order number:
► E07534 spare parts kit for membrane
5. Maintenance and cleaning
Depending on the customer process, condensate may accumulate in the collection con-
tainer of the pump module. No condensate can be sucked in by the pump. Check and
empty the container regularly.
5.1 Emptying the collection container
1. Unscrew and remove the ducts from the collection
container.
2. Remove the collection container from the holder
and empty it.
3. Insert the collection container into the holder and
attach the ducts.
