Revision G / November 2021
Page 43 of 60
Note: It is not necessary to configure the Connection Type for all controller models.
8. Select the “Next” button.
9. Select the “Comm Port” (communication port) that the PC uses.
Figure 27: Serial Parameters
10. The Comm Speed in this box should match the comm speed set on the controller.
This is set to 19200 or 38400 by PVA.
11. Select “Hardware” under Handshaking Options.
12. Select “Finish”.
Figure 28: Controller Added
13. Select “OK” in the Controller Registry dialog box after the controller is added.
Revision G / November 2021
Page 44 of 60
14. To make changes, highlight the controller and select “Edit Controller Properties”.
15. Multiple control handles can be added.
16. To delete control handles, select the control handle and select “Delete”.
17. Select “Close” when you are finished.

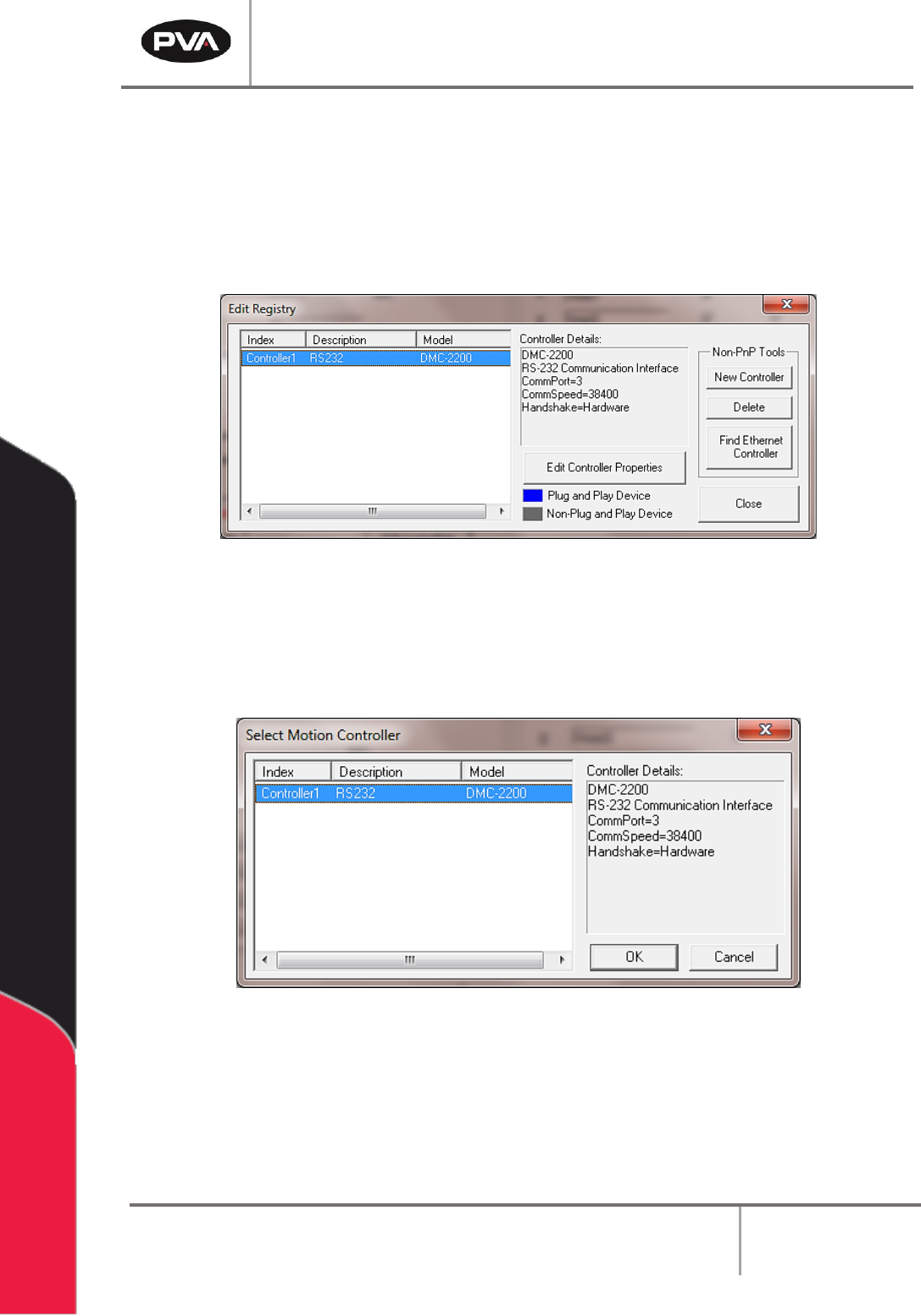

Figure 29: Edit Registry
18. Select the “Change Controller” button in the Machine Parameters window to
change the controller that PathMaster® uses with the workcell.
19. Select the controller to be used.
Figure 30: Change Controller
20. Select the “OK” button.
Revision G / November 2021
Page 45 of 60
Common Main Program Changes
Variable
Explanation
AP_EN
Default value for auto purge. 1=on, 0=off.
AP_LEN
Length of auto purge, in milliseconds.
AP_TIME
Time between auto purges, in milliseconds.
SLP_TM
Sleep timer value for solvent rest, in milliseconds.
SO_EN
Solvent rest enable/disable. 1=enable, 0=disable.
Figure 31: Variable Explanations
Install Spectra Lamp
1. Unpack the Spectra from crating.
2. Locate the irradiator (lamp) package(s) and carefully remove the lamps from the
packaging.
3. Place the irradiator on a flat surface so that the bulb/screen side is accessible.
Figure 32: Irradiator Bulb Side
4. Make sure that the reflectors, bulb, and RF screen are installed properly. Refer to
Heraeus F300S manual for more details.
