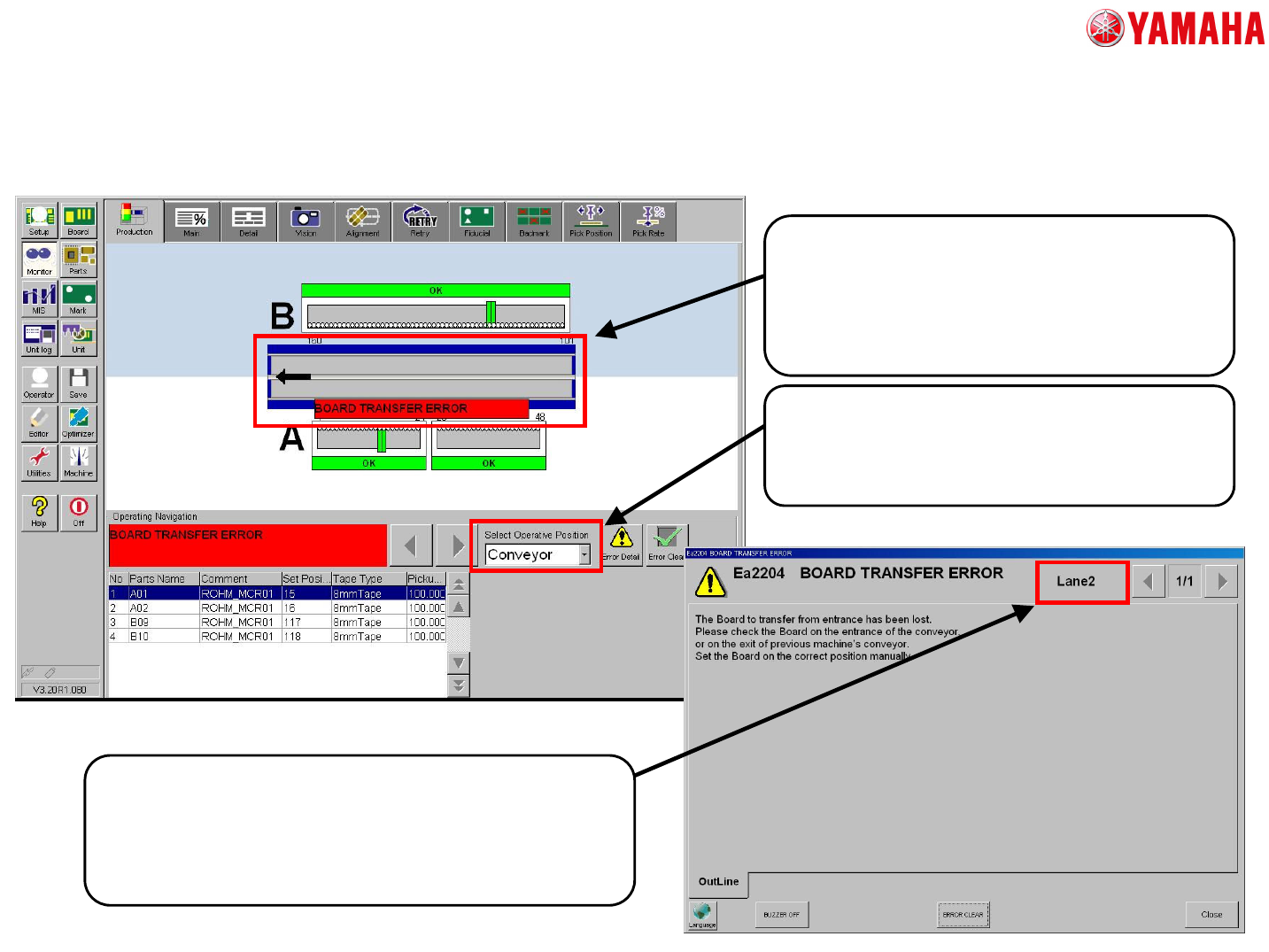

• [Monitor] – [Production] tab and Error message

[Production]

The boards in both lanes are displayed.

In order to display the place where error

occurred and the operation position, two

lanes are displayed on one screen.

[Select Operative Position]

If the transfer error occurred, the machine

stops immediately. So the operation position

is not divided into each lane.

[Error Message]

As for the error message in relation to the conveyor

lane, it is displayed by the right corner of the error

message.

3. The detail of each screen

MDOC

SOFT50073

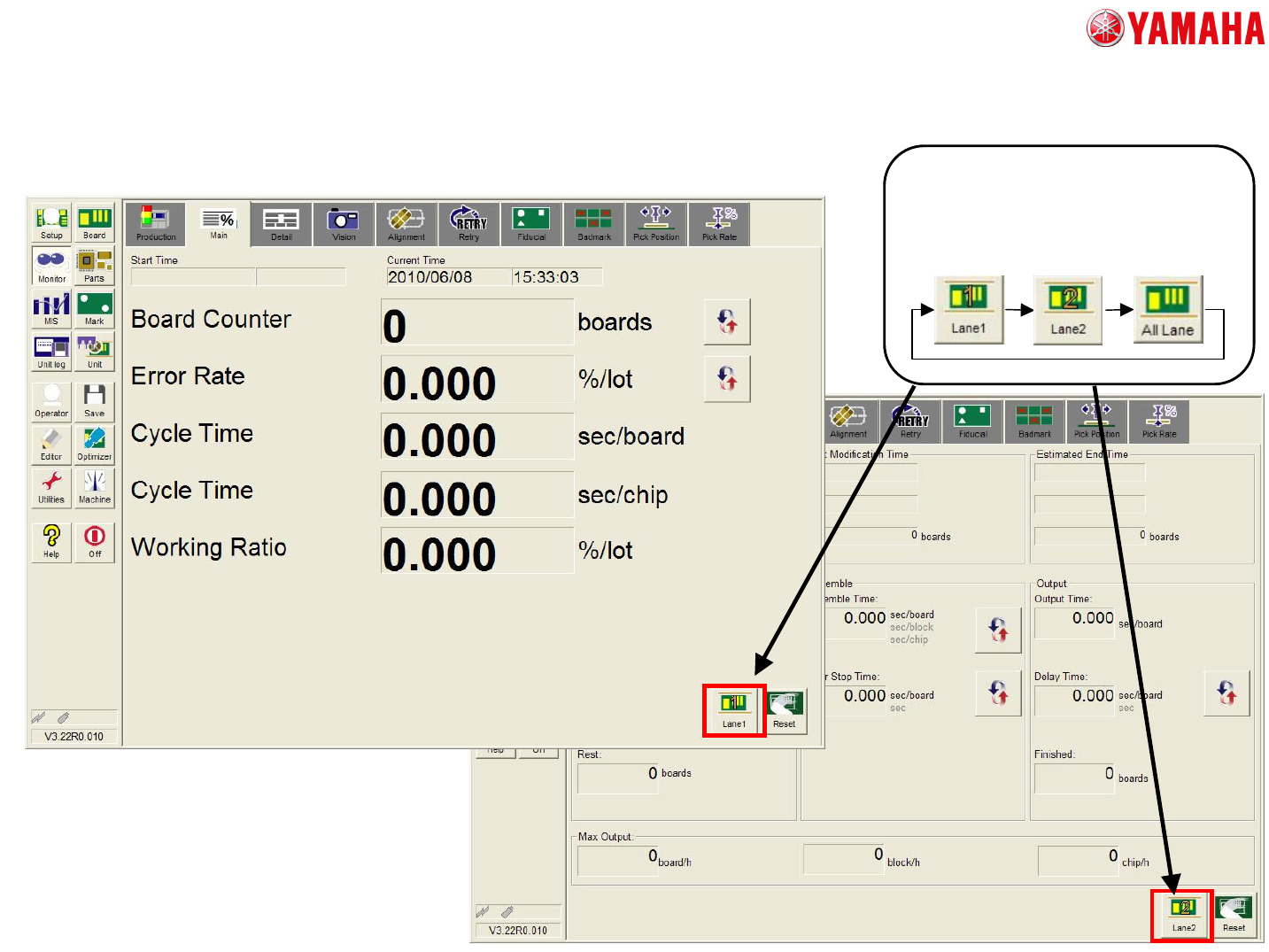

• [Monitor] – [Main] tab and [Detail] tab

[Lane select button]

This button is newly added, the

information of a chosen lane is

displayed.

3. The detail of each screen

MDOC

SOFT50073

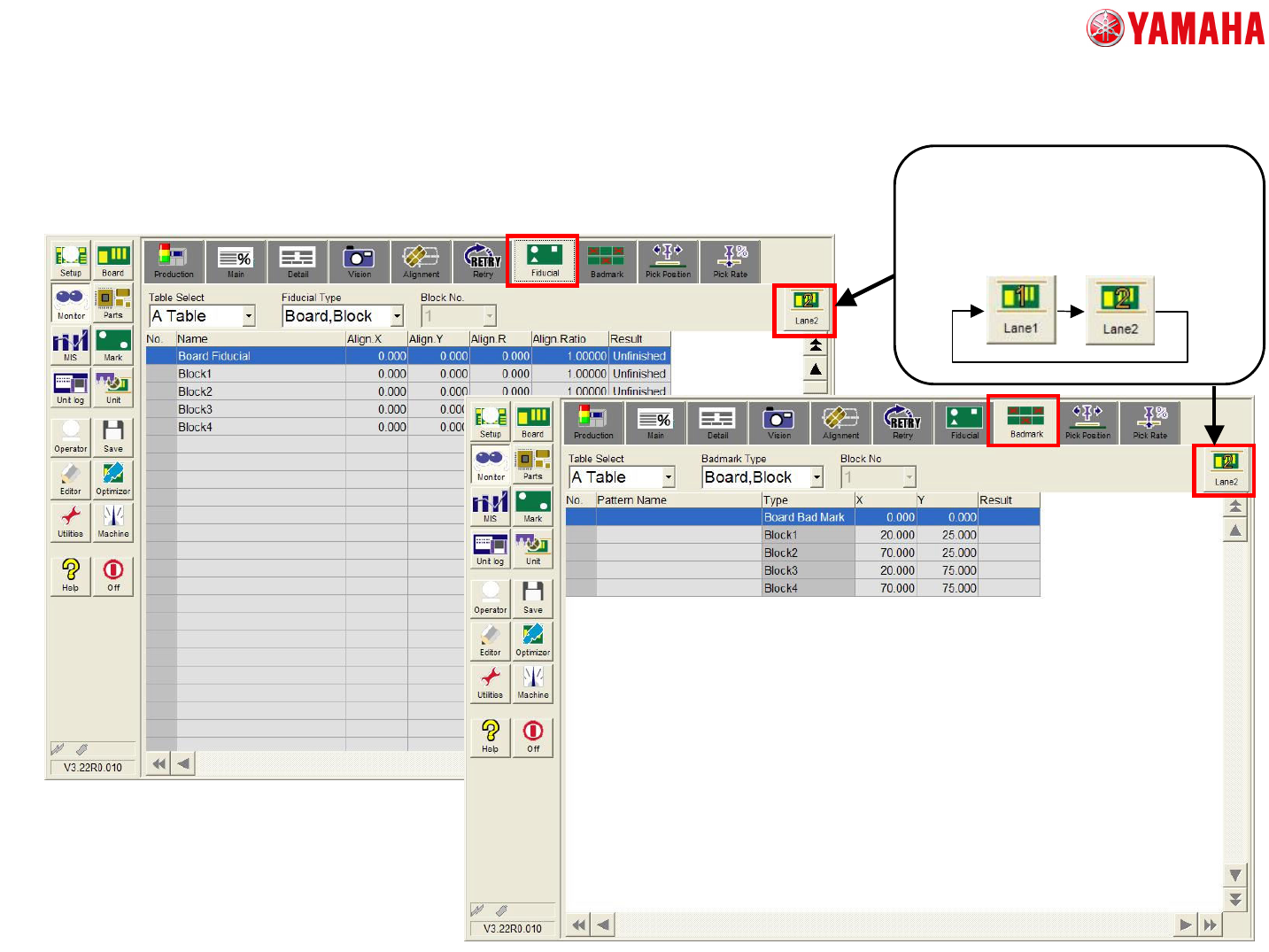

• [Monitor] - [Fiducial] tab and [Badmark] tab

[Lane select button]

This button is newly added, the

information of a chosen lane is

displayed.

3. The detail of each screen
