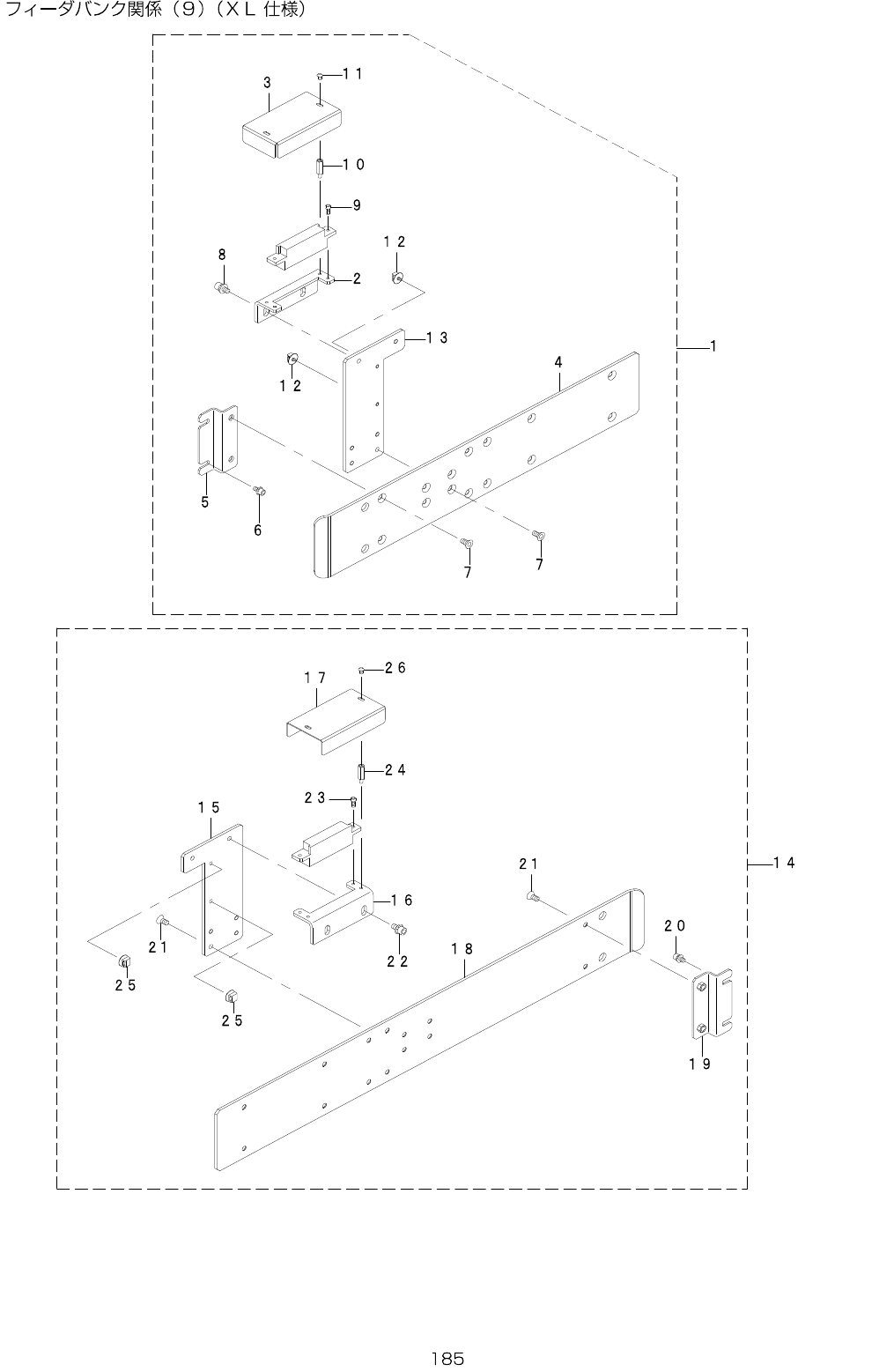

93.FEEDERBANKCOMPONENTS(9)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

401-83612 GUIDE_RAIL_FL_ASM 1

2 401-83192 BANK_CONNECTOR_B_BR (1)

3 401-83209 CONNECTOR_B_COVER (1)

#01

401-83193 ROLLER_GUIDE_F (1)

5 400-93852 ROLLER_GUIDE_SUPPORT_FL (1)

6 SL-6040892-TN SCREWM4L=8 (2)

7 SM-1051052-TN PLATESCREWM5L=10 (10)

8 SL-6051092-TN SCREWM5L=10 (2)

9 SM-6030802-TN SCREW (2)

10 HX-0035400-00 STUD (2)

11 SM-3030552-TN SCREWM3L=5 (2)

12 HX-0070600-0A MOUNTBASE (2)

13 401-83191 BANK_CONNECTOR_B_SUPPORT_BR (1)

#02

401-83613 GUIDE_RAIL_RL_ASM 1

15 401-83191 BANK_CONNECTOR_B_SUPPORT_BR (1)

16 401-83192 BANK_CONNECTOR_B_BR (1)

17 401-83209 CONNECTOR_B_COVER (1)

#02

401-83205 ROLLER_GUIDE_R (1)

19 400-93852 ROLLER_GUIDE_SUPPORT_FL (1)

20 SL-6040892-TN SCREWM4L=8 (2)

21 SM-1051052-TN PLATESCREWM5L=10 (10)

22 SL-6051092-TN SCREWM5L=10 (2)

23 SM-6030802-TN SCREW (2)

24 HX-0035400-00 STUD (2)

25 HX-0070600-0A MOUNTBASE (2)

26 SM-3030552-TN SCREWM3L=5 (2)

- -

94.FEEDERBANKCOMPONENTS(10)(TYPEXL)
