- - 40. X-YCOMPONE NTS(3)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 SM-4030801-SC SCREWM3X0.5L=8 1

2 401-46929 Y_SENSOR_BR 1

3 401-65028 XYLMTSENSORASM 2

4 SM-4030801-SC SCREWM3X0.5L=8 2

5 SL-6040892-TN SCREWM4L=8 2

6 401-82753 SHS20_L1404 2

7 401-46929 Y_SENSOR_BR 1

8 401-29002 NEARSENSORCABLEASM 1

9 SL-6040892-TN SCREWM4L=8 2

10 SM-6051602-TN SCREW 46

11 401-46931 Y_OIL_GUARD 2

12 401-28154 LOW_HEAD_SCREW_M4 8

13 401-61662 Y_UNDER_OIL_GUARD_350_R 1

14 401-66638 Y_STOPPER 4

15 400-49671 COVERCUSHION 8

16 SM-4030601-SC SCREWM3X0.5L=6 8

17 SM-6126002-TN SCREWM12L=60 8

18 401-61661 Y_UNDER_OIL_GUARD_350_L 1

19 SL-6061292-TN SCREWM6L=12 4

- -

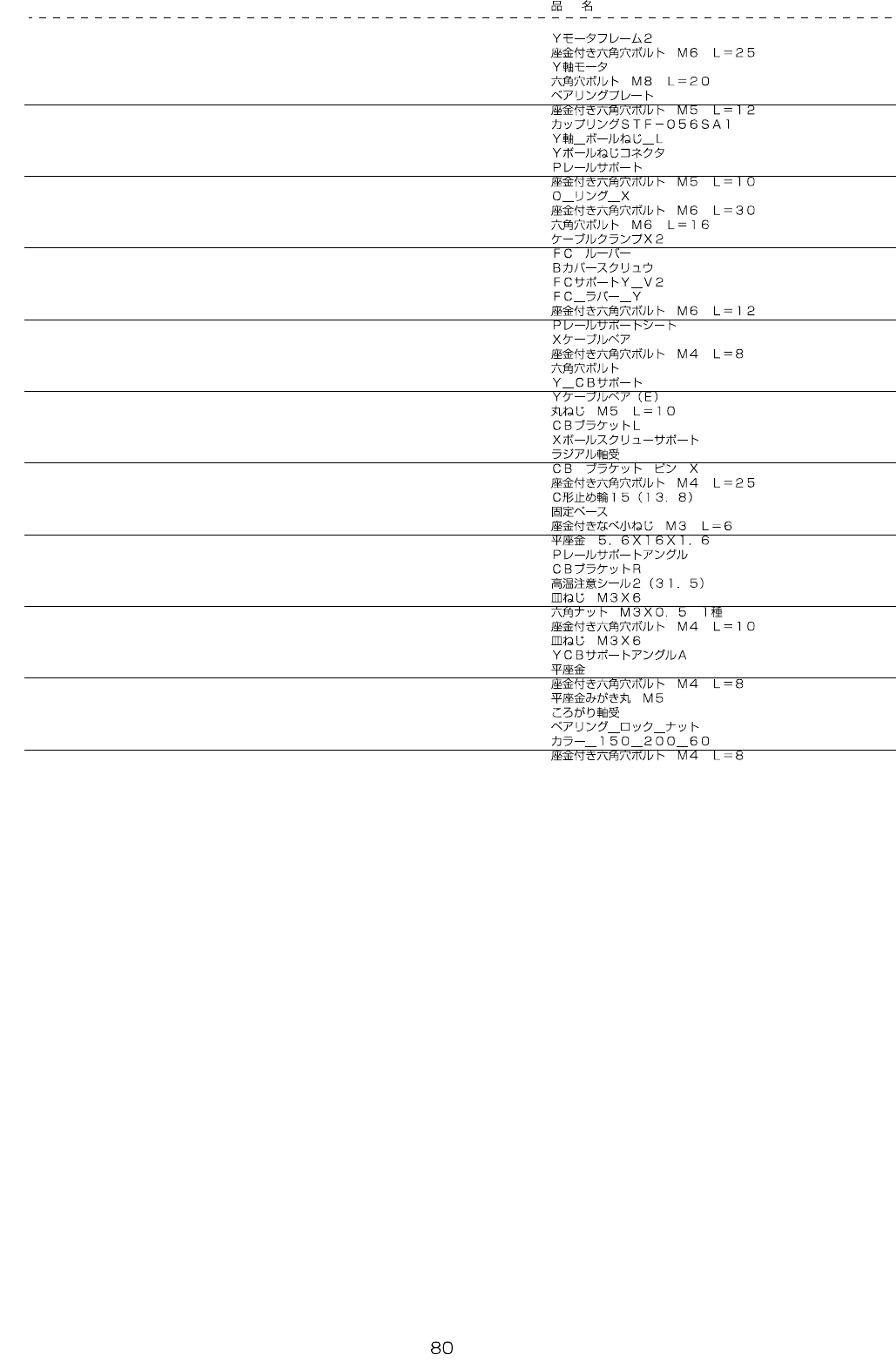

40.X-YCOMPONENTS(3)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-77461 Y_MOTOR_FRAME2 2

2 SL-6062592-TN SCREWM6L=25 8

3 401-46348 YAXISSERVOMOTOR 2

4 SM-6082002-TN SCREWM8L=20 8

5 401-77465 BEARING_PLATE 2

6 SL-6051292-TN SCREWM5L=12 8

7 401-82778 COUPLING_STF-056SA1 2

8 401-06041 Y_BALL_SCREW_L 2

9 401-06024 YBSCONNECTOR 2

10 401-82767 P_RAIL_SUPPORT 1

11 SL-6051092-TN SCREWM5L=10 3

12 400-93864 O_RING_X 2

13 SL-6063092-TN SCREWM6L=30 8

14 SM-6061602-TN SCREWM6L=16 8

15 401-82770 CABLE_CLAMP_X2 1

16 L153E-321-000 FCRUBBER 2

17 400-81751 B_COVER_SCREW 1

18 401-10219 FC_SUPPORT_Y_V2 1

19 400-98052 FC_RUBBER_Y 3

20 SL-6061292-TN SCREWM6L=12 2

21 401-82768 P_RAIL_SUPPORT_SHEET 1

22 401-10451 XCABLEBEAR 1

23 SL-6040892-TN SCREWM4L=8 2

24 SM-6041002-TN SCREW 8

25 401-82750 Y_CB_SUPPORT 1

26 400-60210 YCABLEBEAR(E) 1

27 SM-3051052-TN SCREWM5L=10 4

28 400-46005 CBBRACKETL 1

29 401-27577 X_BALL_SCREW_SUPPORT 2

30 SB-1150004-00 RADIALBEARING 2

31 L132E-421-000 CBBRACKETPINX 2

32 SL-6042592-TN SCREWM4L=25 8

33 RC-0150001-KP C-RING15(13.8) 2

34 HX-0029400-00 FIXEDBASE 3

35 SL-4030691-SC SCREWM3L=6 1

36 WP-0561616-SC WASHER5.6X16X1.6 3

37 401-83514 P_RAIL_SUPPORT_ANGLE 3

38 400-46006 CBBRACKETR 1

39 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 2

40 SM-1030601-SC SCREWM3X6 2

41 NM-6030001-SC NUTM3X0.5TYPE1 2

42 SL-6041092-TN SCREWM4L=10 3

43 SM-1030601-SC SCREWM3X6 3

44 401-82769 Y_CB_SUPPORT_ANGLE_A 1

45 WP-0431005-SP PLAINWASHER 1

46 SL-6040892-TN SCREWM4L=8 3

47 WP-0531001-SC WASHERM5 4

48 SB-1150016-00 BEARING 2

49 400-93876 BEARING_LOCK_NUT 2

50 401-77466 COLLAR_150_200_60 2

51 SL-6040892-TN SCREWM4L=8 3
