RS-1_RS-1-XL_RS-1R-Rev20.pdf - 第56页

- - 25. COVERCOMPONEN TS(7) (UNTILM/CREV.C)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-96674 SAFETY_COVER_F_UNIT_CD 1

2 401-96686 SAFETY_COVER_FRAME_F (1)

3 401-96687 SAFETY_COVER_STAY_F (2)

4 401-96689 SCF_PLATE_FU (1)

5 SL-6040892-TN SCREWM4L=8 (16)

6 NM-3050610-SF FLANGENUTM5 (21)

7 401-22998 HANDLE (1)

8 SM-6062002-TN SCREWM6L=20 (2)

9 NM-3060810-SF FLANGENUTM6 (2)

10 401-13968 HANDLE_S (1)

11 401-34618 SD_LOCK_BRACKET (1)

12 SL-6040892-TN SCREWM4L=8 (2)

13 400-80490 KEY_SCREW (2)

14 401-14319 EDGE_CUSHION_F_L (1)

15 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

16 400-51621 CHIPBOXNOTICELABELG1 (1)

17 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

18 400-01464 STOPPERSUPPORT (1)

19 SL-6041092-TN SCREW (2)

20 401-34189 MAGNET (1)

21 SM-4030601-SC SCREWM3X0.5L=6 (1)

22 402-21090 SAFETY_UNDER_COVER_A_LABEL (1)

23 401-96694 SCF_HINGE_BRACKET (4)

24 SL-6051292-TN BOLT (20)

25 400-92716 TAPECUTTERDANGERLABEL (1)

26 400-77321 STAY 2

27 401-96675 SAFETY_COVER_R_UNIT_CD 1

28 402-21090 SAFETY_UNDER_COVER_A_LABEL (1)

29 401-96694 SCF_HINGE_BRACKET (4)

30 400-92716 TAPECUTTERDANGERLABEL (1)

31 401-96688 SAFETY_COVER_FRAME_R (1)

32 401-96695 COVER_SIDE_R (1)

33 401-83451 SAFETY_COVER_STAY_RL (1)

34 401-83452 SAFETY_COVER_STAY_RR (1)

35 401-96691 SCF_PLATE_FIXED_BR_R (1)

36 SL-6051292-TN BOLT (20)

37 SL-6041092-TN SCREWM4L=10 (3)

38 401-83456 SCF_PLATE_RU (1)

39 400-49671 COVERCUSHION (1)

40 SM-4030601-SC SCREWM3X0.5L=6 (1)

41 SL-6040892-TN SCREWM4L=8 (11)

42 NM-3050610-SF FLANGENUTM5 (17)

43 401-22998 HANDLE (1)

44 SM-6062002-TN SCREWM6L=20 (2)

45 NM-3060810-SF FLANGENUTM6 (2)

46 401-13968 HANDLE_S (1)

47 SL-4041291-SC SCREWM4L=12 (2)

48 401-47221 STOPPER_NUT_PLATE (1)

49 NM-3040520-SF FLANGENUTM4 (1)

50 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

51 401-34618 SD_LOCK_BRACKET (1)

52 400-80490 KEY_SCREW (2)

53 401-14319 EDGE_CUSHION_F_L (1)

54 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

55 400-51621 CHIPBOXNOTICELABELG1 (1)

56 400-01464 STOPPERSUPPORT (1)

57 WP-0651646-SC WASHER (4)

58 WP-0482016-SC PLAINWASHER4.8X11.5X2 4

59 401-83471 LOCATION_LABEL_RS-1 1

60 400-79329 CAUTIONSEAL 2

61 SM-1040801-SC SCREWM4X0.7L=8 8

- -

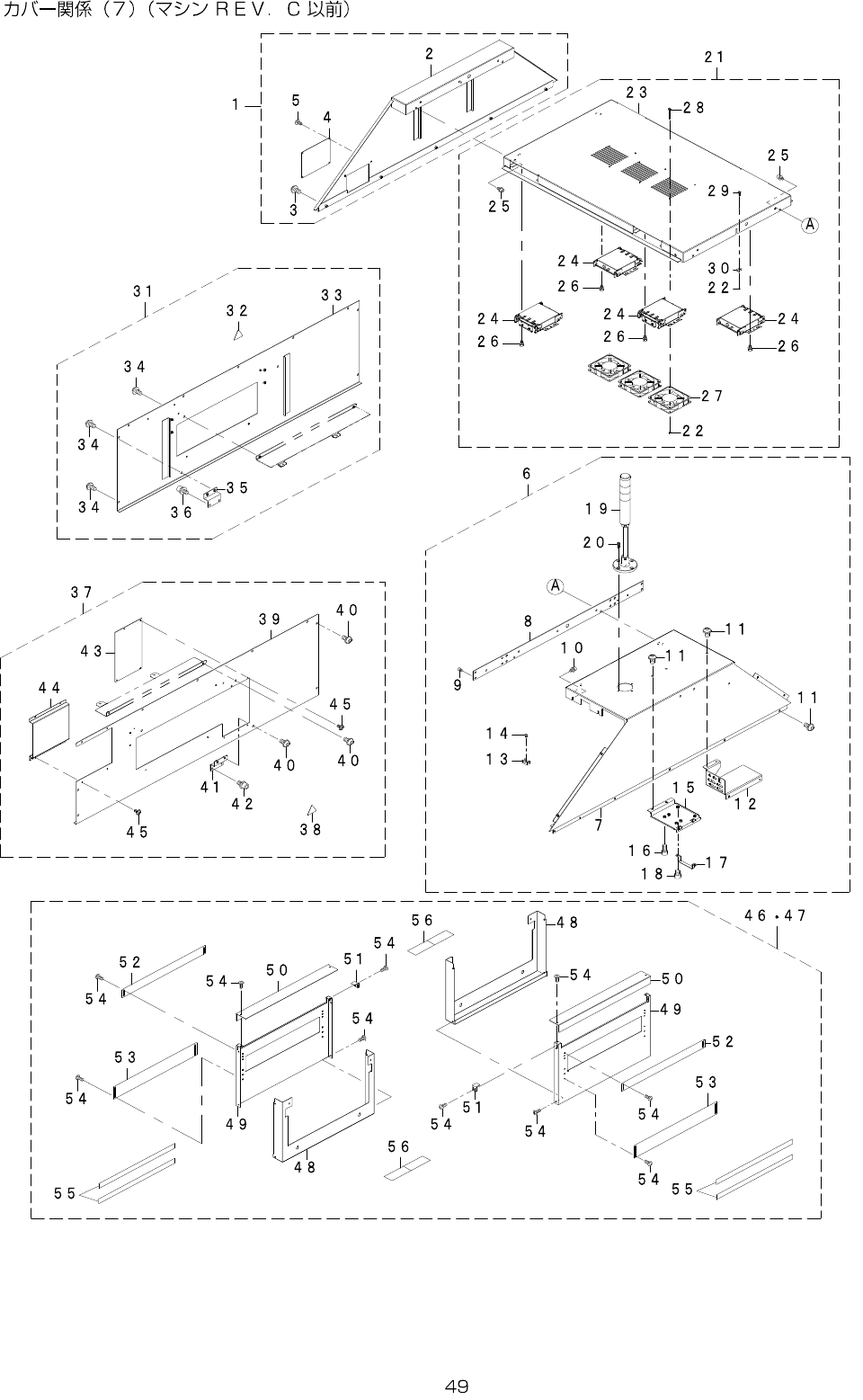

25.COVERCOMPONENTS(7)(UNTILM/CREV.C)

- -

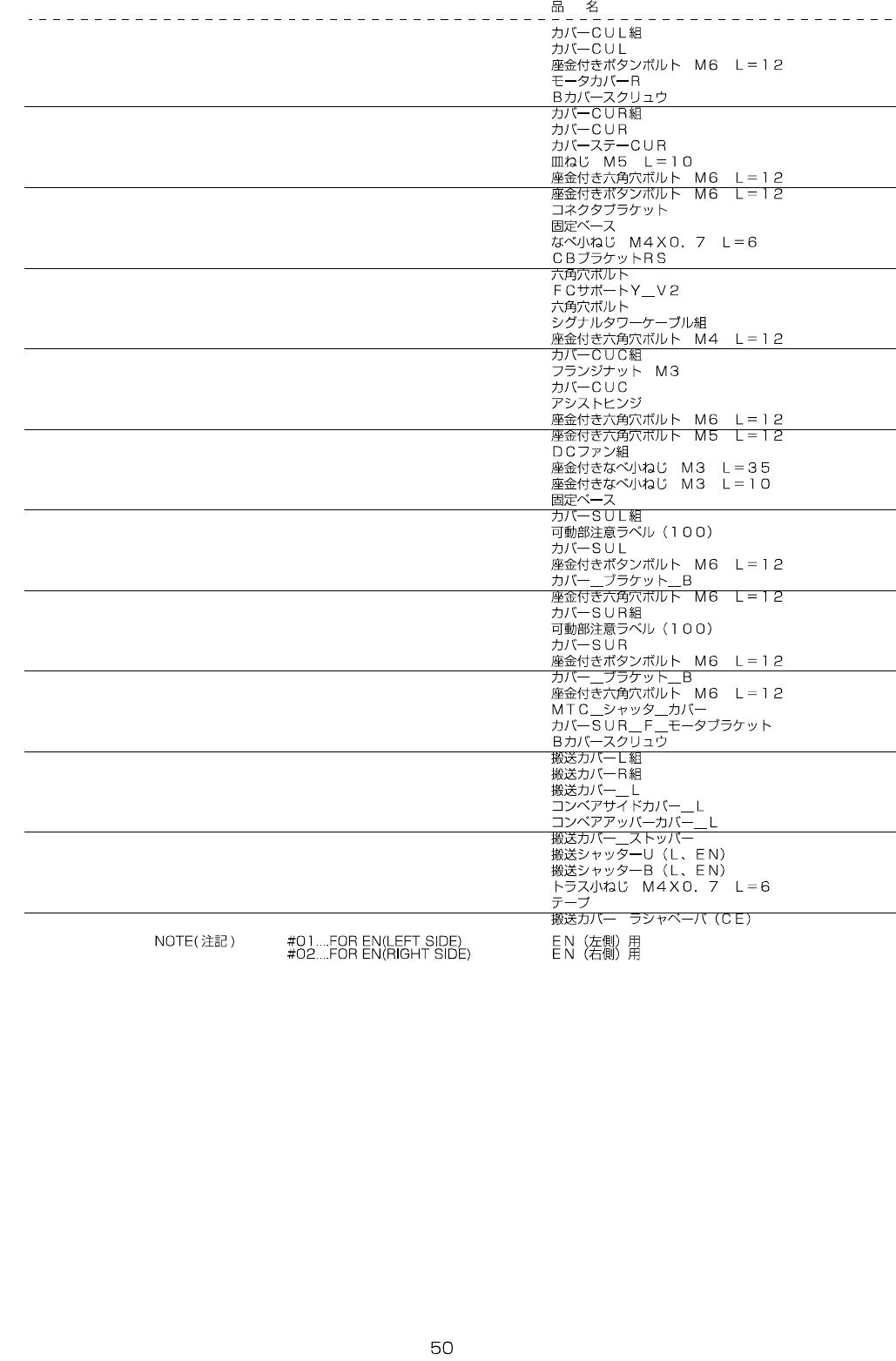

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83523 COVER_CUL_ASM 1

2 401-83441 COVER_CUL (1)

3 SL-3061232-TN SCREWM6L=12 (5)

4 401-36850 MOTOR_COVER_R (1)

5 400-81751 B_COVER_SCREW (4)

6 401-83524 COVER_CUR_ASM 1

7 401-83384 COVER_CUR (1)

8 401-83382 COVER_STAY_CUR (1)

9 SM-1051052-TN PLATESCREWM5L=10 (8)

10 SL-6061292-TN SCREWM6L=12 (4)

11 SL-3061232-TN SCREWM6L=12 (12)

12 401-83469 CONNECTOR_BR (1)

13 HX-0029400-00 FIXEDBASE (2)

14 SM-4040601-SC SCREWM4X0.7L=6 (2)

15 401-89268 CB_BRACKET_RS (1)

16 SM-6061202-TN SCREW (4)

17 401-10219 FC_SUPPORT_Y_V2 (1)

18 SM-6060802-TN SCREW (2)

19 401-29009 SIGNALTOWERCABLEASM (1)

20 SL-6041292-TN SCREWM4L=12 (4)

21 401-83525 COVER_CUC_ASM 1

22 NM-3034000-SF FLANGENUT (10)

23 401-83442 COVER_CUC (1)

24 401-83447 ASSIST_HINGE (4)

25 SL-6061292-TN SCREWM6L=12 (8)

26 SL-6051292-TN SCREWM5L=12 (24)

27 401-89090 DCFANASM (3)

28 SL-4033591-SC SCREWM3L=35 (6)

29 SL-4031091-SC SCREWM3L=10 (4)

30 HX-0051900-00 FIXINGBASE (4)

31 401-83528 COVER_SUL_ASM 1

32 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)

33 401-83439 COVER_SUL (1)

34 SL-3061232-TN SCREWM6L=12 (7)

35 401-47149 COVER_BR_B (1)

36 SL-6061292-TN SCREWM6L=12 (2)

37 401-83529 COVER_SUR_ASM 1

38 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)

39 401-83440 COVER_SUR (1)

40 SL-3061232-TN SCREWM6L=12 (7)

41 401-47149 COVER_BR_B (1)

42 SL-6061292-TN SCREWM6L=12 (2)

43 401-47150 MTC_SHUTTLE_COVER (1)

44 401-47151 COVER_SUR_F_MOTOR_BR (1)

45 400-81751 B_COVER_SCREW (8)

#01

401-87790 CONVEYOR_COVER_L_ASM 1

#02

401-87791 CONVEYOR_COVER_R_ASM 1

48 401-47167 CONVEYOR_COVER_L (2)

49 401-47168 CONVEYOR_SIDE_COVER_L (2)

50 401-47169 CONVEYOR_UPPER_COVER_L (2)

51 401-47170 CONVEYOR_COVER_STOPPER (2)

52 400-01484 CONVEYORSHUTTERU(LEN) (2)

53 400-01485 CONVEYORSHUTTERB(LEN) (2)

54 SM-0040601-SC SCREWM4X0.7L=6 (38)

55 400-01490 TAPE (3)

56 E1143-721-000 WOOLENCLOTHPAPER (4)
