17.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(11)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-86387 DUCT_ASSY_RS 1

2 400-77404 DUCT30_60_200 (7)

3 SL-4040891-SC SCREWM4X8 (14)

4 400-32368 DUCT40_60_125 (2)

5 SL-4040891-SC SCREWM4X8 (4)

6 400-94478 DUCT30_60_450 (4)

7 SL-4040891-SC SCREWM4X8 (8)

8 400-94479 DUCT30_60_200 (4)

9 SL-4040891-SC SCREWM4X8 (8)

10 401-83542 XY_DRIVER_UNIT 1

11 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

12 SL-6040892-TN SCREWM4L=8 (2)

13 401-83491 DRIVER_BR (1)

14 401-29654 YAXISDRIVER (2)

15 SL-4051691-SC SCREWM5L=16 (3)

16 401-29652 XAXISDRIVER (1)

17 401-83517 DRIVER_COLLAR (6)

18 SL-6041292-TN SCREWM4L=12 (6)

19 401-83541 ATX_UNIT 1

20 401-95246 ATX_BRACKET (1)

21 SL-6040892-TN SCREWM4L=8 (4)

22 E1038-871-000 PLATENLOCKCAMSCREW (2)

23 SL-4030891-SC SCREWM3L=8 (6)

24 HX-0070600-0A MOUNTBASE (2)

25 EZ-1468979-11 POWER(ENSP-300P-S20-11S) (1)

26 EZ-1756647-11 BATTERYPACK(BS06A-H24/2.5L) (1)

#01

402-15703 XY_CP_UNIT_EN_XL 1

28 HX-0070600-0A MOUNTBASE (3)

29 SL-4030691-SC SCREWM3L=6 (18)

30 402-14966 CNA5-X/YL/YRCNP1CABLEASM (1)

31 401-87799 XY_CP_BRACKET_EN (1)

32 401-82988 XY_CP_COVER_EN (1)

33 SL-6040892-TN SCREWM4L=8 (7)

- -

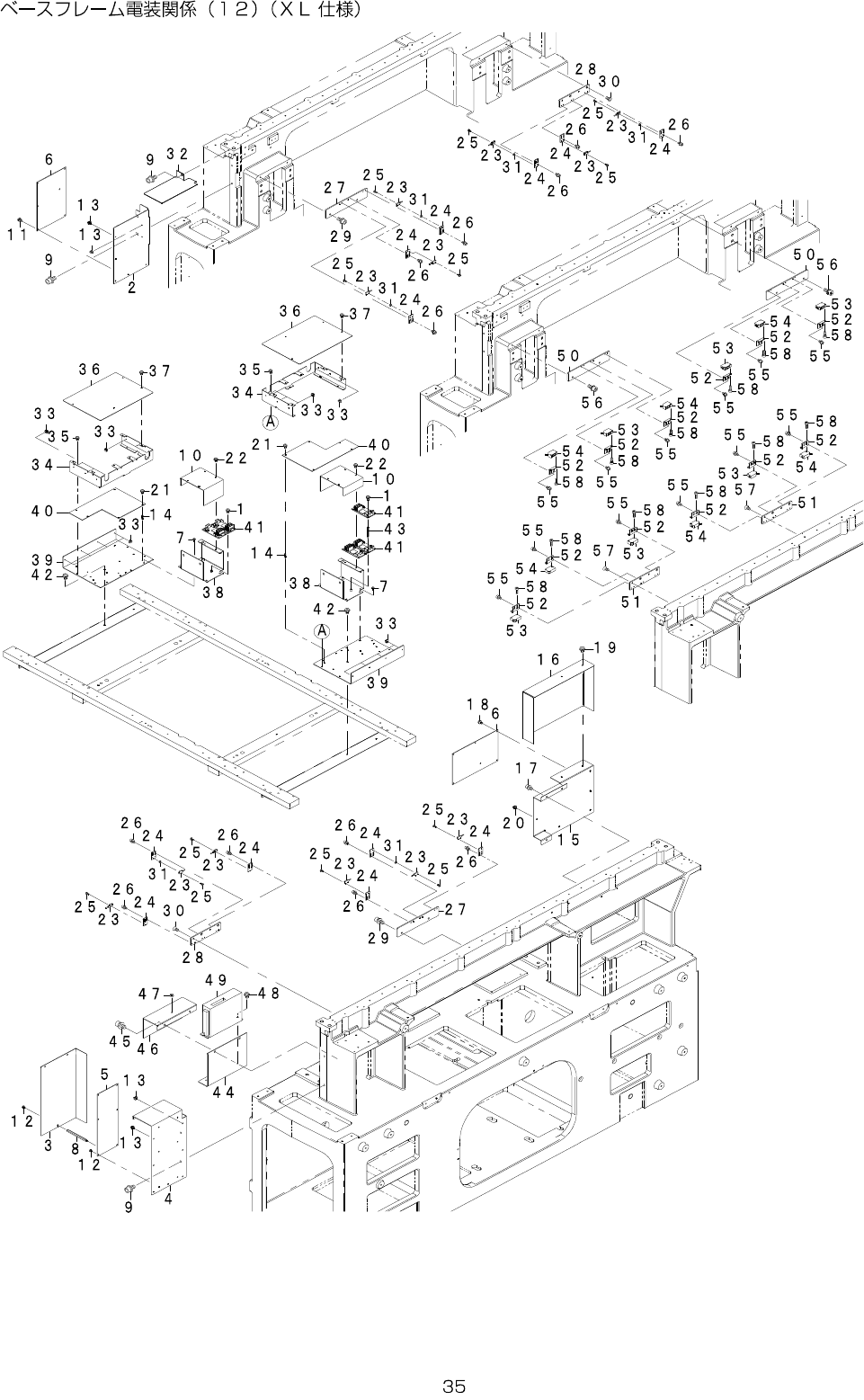

18.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(12)(TYPEXL)
