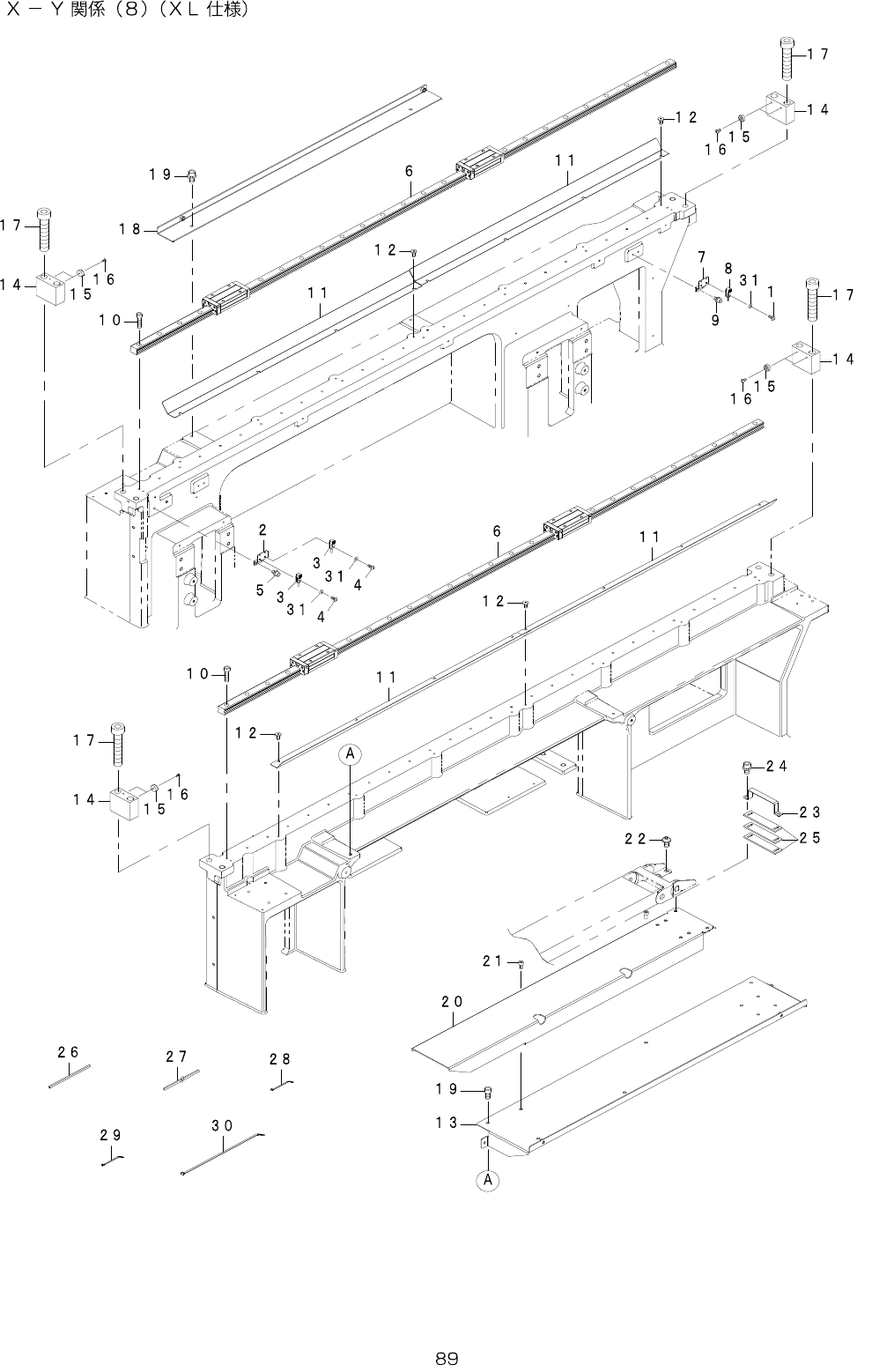

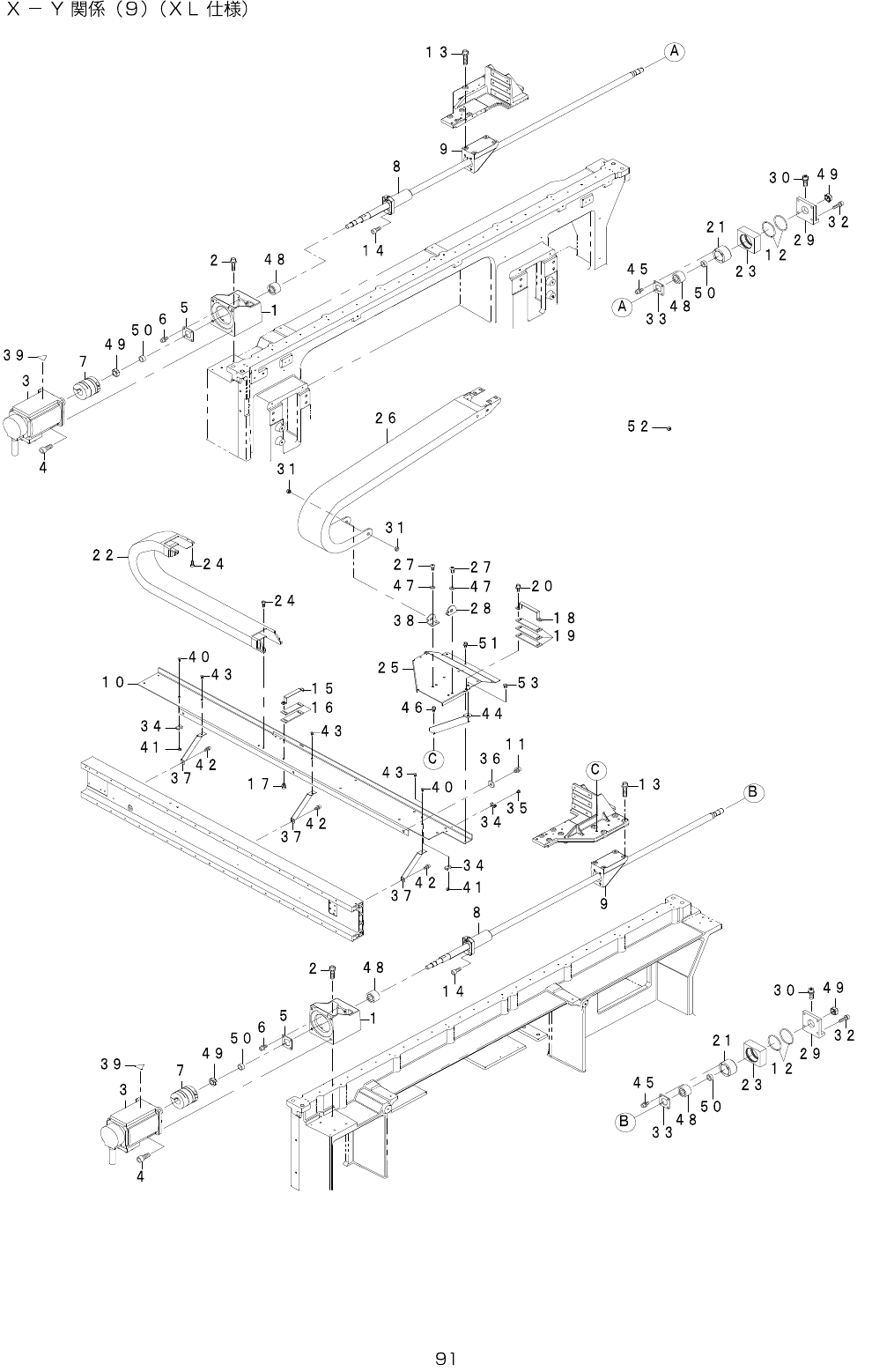

45.X-YCOMPONENTS(8)(TYPEXL)

- -

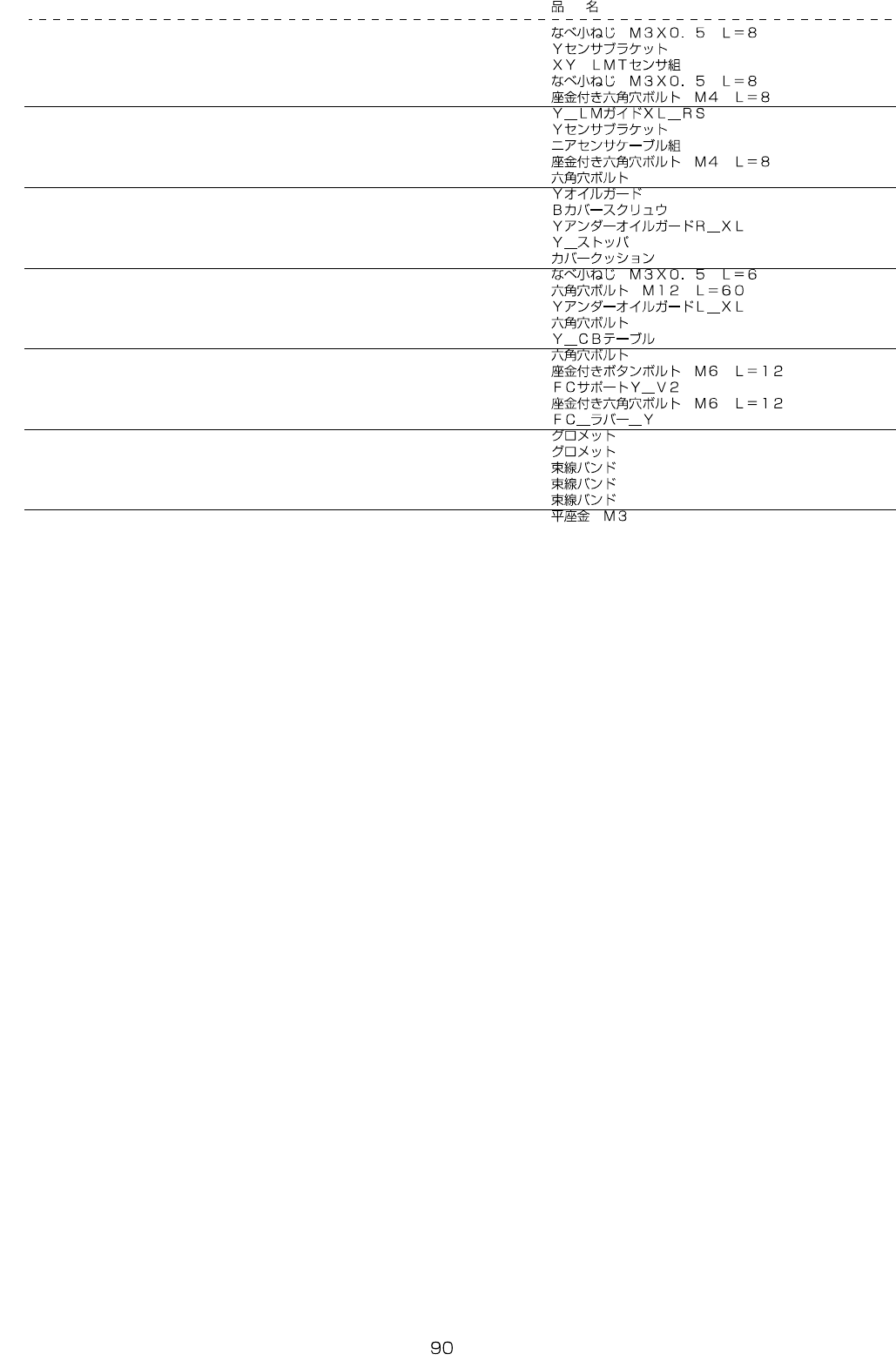

REF.NO NOTE PARTNO DESCRIPTION Qty

1 SM-4030801-SC SCREWM3X0.5L=8 1

2 401-46929 Y_SENSOR_BR 1

3 401-65028 XYLMTSENSORASM 2

4 SM-4030801-SC SCREWM3X0.5L=8 2

5 SL-6040892-TN SCREWM4L=8 2

6 402-15101 Y_LM_GUIDE_XL_RS 2

7 401-46929 Y_SENSOR_BR 1

8 401-29002 NEARSENSORCABLEASM 1

9 SL-6040892-TN SCREWM4L=8 2

10 SM-6051602-TN SCREW 54

11 401-46931 Y_OIL_GUARD 4

12 400-81751 B_COVER_SCREW 16

13 402-15107 Y_UNDER_OIL_GUARD_R_XL 1

14 401-66638 Y_STOPPER 4

15 400-49671 COVERCUSHION 8

16 SM-4030601-SC SCREWM3X0.5L=6 8

17 SM-6126002-TN SCREWM12L=60 8

18 402-15109 Y_UNDER_OIL_GUARD_L_XL 1

19 SM-6061202-TN BOLT 8

20 402-15108 Y_CB_TABLE 1

21 SM-6061202-TN SCREW 4

22 SL-3061232-TN SCREWM6L=12 4

23 401-10219 FC_SUPPORT_Y_V2 1

24 SL-6061292-TN SCREWM6L=12 2

25 400-98052 FC_RUBBER_Y 3

26 HX-0067100-00 GROMMET 0.27

27 HX-0067100-0A GROMMET 0.1

28 HX-0023300-00 CABLEBAND 8

29 HX-0023300-0E CABLEBAND 14

30 HX-0023300-0G CABLEBAND 5

31 WP-0320501-SC WASHERM3 3

- -
