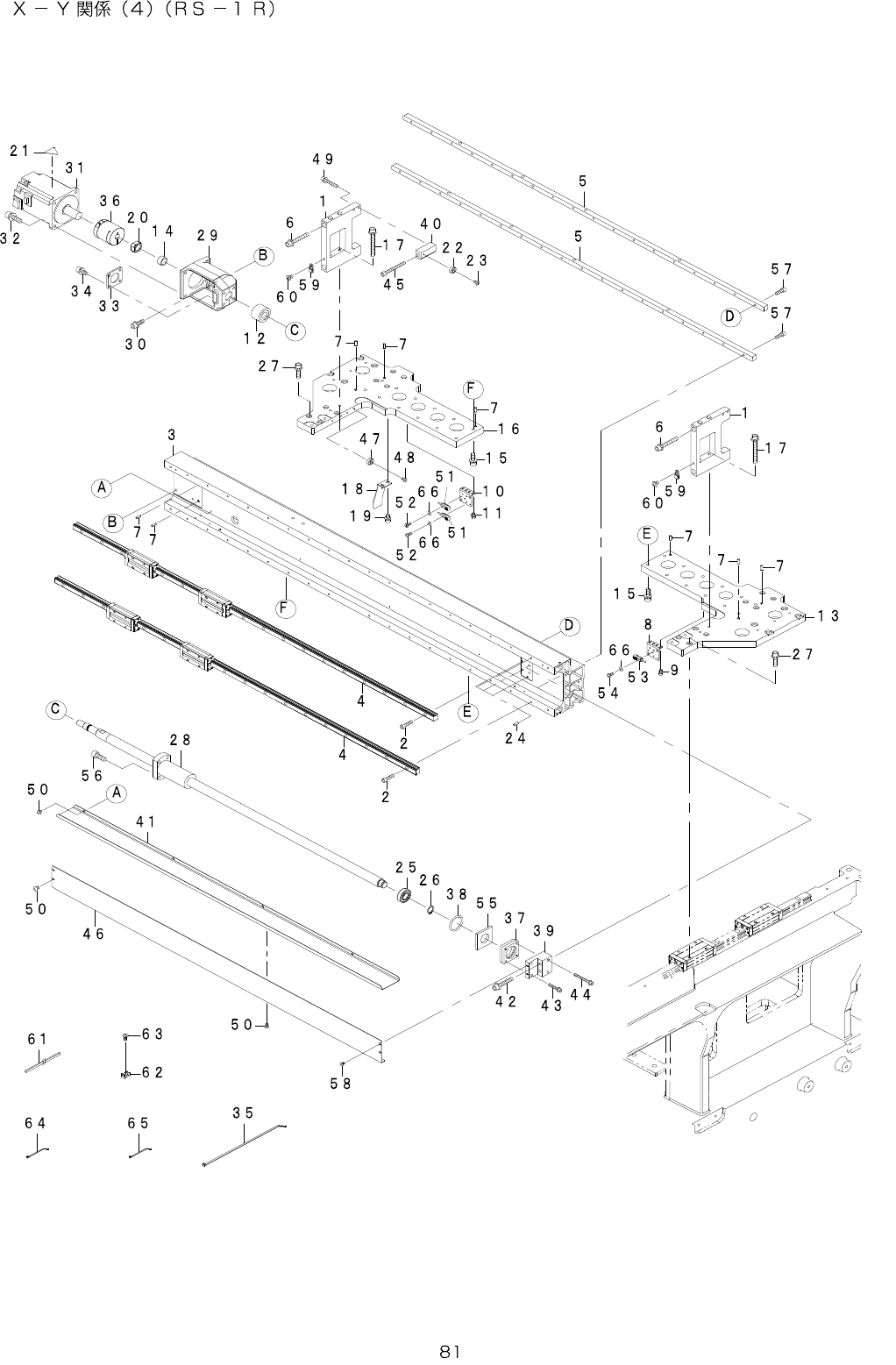

41.X-YCOMPONENTS(4)(RS-1R)

- -

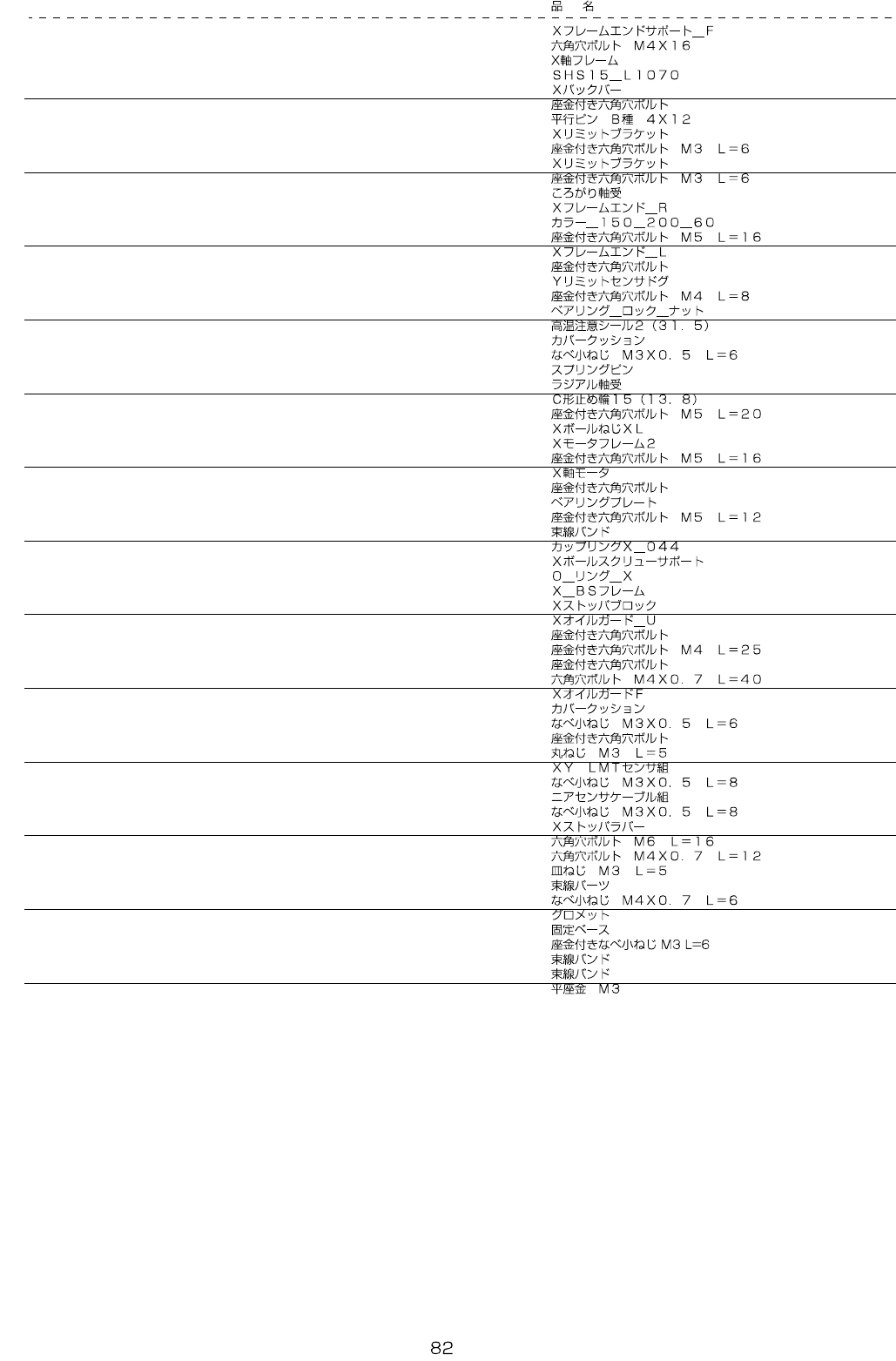

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-09508 X_FRAME_END_SUPPORT_F 2

2 SM-6041602-TN SCREWM4X16

3 402-11716 X_AXIS_FRAME 1

4 401-82754 SHS15_L1070 2

5 402-09511 X_BACK_BAR 2

6 SL-6053592-TN BOLT 4

7 PH-0400122-C0 PARALLELPINTYPEB4X12 8

8 402-11720 X_LIMIT_BRACKET 1

9 SL-6030692-TN SCREWM3L=6 2

10 402-11720 X_LIMIT_BRACKET 1

11 SL-6030692-TN SCREWM3L=6 2

12 SB-1150016-00 BEARING 1

13 402-09504 X_FRAME_END_R 1

14 401-77466 COLLAR_150_200_60 1

15 SL-6051692-TN SCREWM5L=16 24

16 402-09503 X_FRAME_END_L 1

17 SL-6054592-TN SCREW 4

18 402-09517 Y_LIMIT_SENSOR_DOG 1

19 SL-6040892-TN SCREWM4L=8 2

20 400-93876 BEARING_LOCK_NUT 1

21 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

22 400-49671 COVERCUSHION 1

23 SM-4030601-SC SCREWM3X0.5L=6 1

24 PS-0400122-KP SPRINGPIN 3

25 SB-1150004-00 RADIALBEARING 1

26 RC-0150001-KP C-RING15(13.8) 1

27 SL-6052092-TN SCREWM5L=20 16

28 400-98047 XBALLSCREWXL 1

29 401-90239 X_MOTOR_FRAME2 1

30 SL-6051692-TN SCREWM5L=16 4

31 401-29653 XAXISMOTOR 1

32 SL-6062042-TN BOLT 4

33 401-77465 BEARING_PLATE 1

34 SL-6051292-TN SCREWM5L=12 4

35 HX-0023300-0G CABLEBAND 5

36 401-72739 COUPLING_X_044 1

37 401-27577 X_BALL_SCREW_SUPPORT 1

38 400-93864 O_RING_X 1

39 401-90235 X_BS_FRAME 1

40 402-09515 X_STOPPER_BLOCK 1

41 401-90237 X_OIL_GUARD_U 1

42 SL-6053092-TN SCREW 2

43 SL-6042592-TN SCREWM4L=25 2

44 SL-6044092-TN SCREW 2

45 SM-6044002-TN SCREW 1

46 401-90236 X_OIL_GUARD_F 1

47 400-49671 COVERCUSHION 1

48 SM-4030601-SC SCREWM3X0.5L=6 1

49 SL-6042592-TN SCREW 4

50 SM-3030552-TN SCREWM3L=5 10

51 401-65028 XYLMTSENSORASM 2

52 SM-4030801-SC SCREWM3X0.5L=8 2

53 401-29002 NEARSENSORCABLEASM 1

54 SM-4030801-SC SCREWM3X0.5L=8 1

55 401-82752 X_STOPPER_RUBBER 1

56 SM-6061602-TN SCREWM6L=16 4

57 SM-6041202-TN SCREWM4X0.7L=12 36

58 SM-1030552-TN PLATESCREWM3L=5 2

59 HX-0034400-00 HARNESSPARTS 6

60 SM-4040601-SC SCREWM4X0.7L=6 6

61 HX-0067100-0A GROMMET 0.1

62 HX-0029400-00 FIXEDBASE 1

63 SL-4030691-SC SCREWM3L=6 1

64 HX-0023300-00 CLIP 8

65 HX-0023300-0E NYLONBAND 14

66 WP-0320501-SC WASHERM3 3

- -
