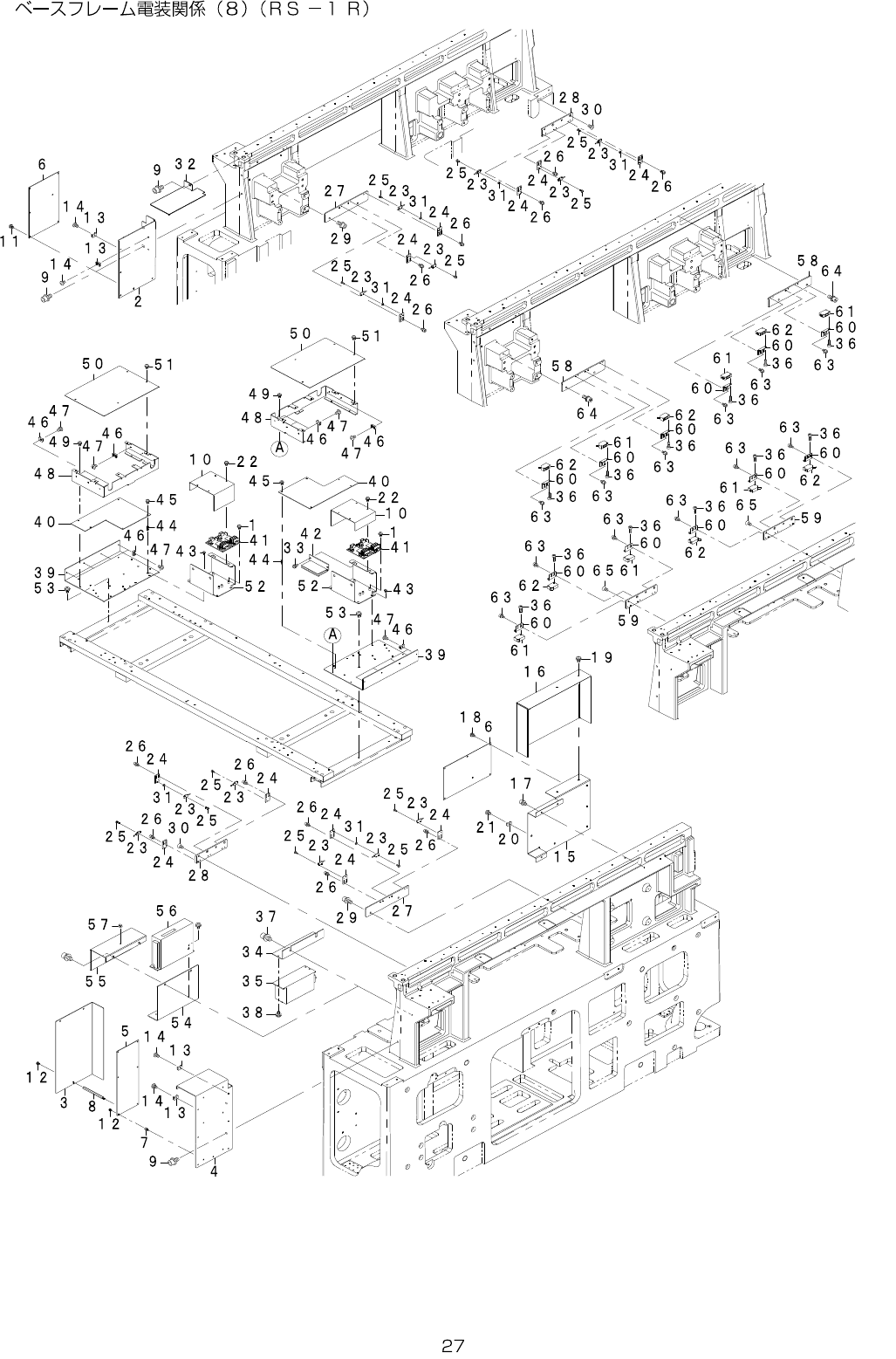

13.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(7)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-18339 DUCT_ASSY 1

2 400-32368 DUCT40_60_125 (1)

3 SL-4040891-SC SCREWM4X8 (2)

4 SL-4040891-SC SCREWM4X8 (26)

5 400-94479 DUCT30_60_200 (13)

6 401-83542 XY_DRIVER_UNIT 1

7 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

8 SL-6040892-TN SCREWM4L=8 (2)

9 401-83491 DRIVER_BR (1)

10 401-29654 YAXISDRIVER (2)

11 SL-4051691-SC SCREWM5L=16 (3)

12 401-29652 XAXISDRIVER (1)

13 401-83517 DRIVER_COLLAR (6)

14 SL-6041292-TN SCREWM4L=12 (6)

15 401-83541 ATX_UNIT 1

16 401-95246 ATX_BRACKET (1)

17 SL-6040892-TN SCREWM4L=8 (2)

18 E1038-871-000 PLATENLOCKCAMSCREW (2)

19 SL-4030891-SC SCREWM3L=8 (6)

20 HX-0070600-0A MOUNTBASE (2)

21 EZ-1468979-11 POWER(ENSP-300P-S20-11S) (1)

22 EZ-1756647-11 BATTERYPACK(BS06A-H24/2.5L) (1)

#01

401-87821 XY_CP_UNIT_EN 1

24 SL-4030691-SC SCREWM3L=6 (18)

25 401-88160 CNA5-X/YL/YRCNP1CABLEASM (1)

26 401-87799 XY_CP_BRACKET_EN (1)

27 401-82988 XY_CP_COVER_EN (1)

28 SL-6040892-TN SCREWM4L=8 (7)

29 HX-0070600-0A MOUNTBASE (3)

- -

14.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(8)(RS-1R)
