- - 113.LONGBOARD BUSPONGECOMP ONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

401-94673 AREA_SENSOR_ASM 1

2 401-94475 AREA_SENSOR_BR_F (1)

3 401-10014 REFLEXARRAYSENSORASM (1)

4 SL-4043091-SC SCREWM4L=30 (3)

5 401-94476 REFLECTOR_BR_F (1)

6 400-93804 REFLECTOR (1)

7 NM-3030410-SE FLANGENUTM3 (2)

8 401-94477 AREA_SENSOR_BR_R (1)

9 401-10014 REFLEXARRAYSENSORASM (1)

10 SL-4043091-SC SCREWM4L=30 (3)

11 SM-1051052-TN PLATESCREWM5L=10 (4)

12 401-94478 REFLECTOR_BR_R (1)

13 400-93804 REFLECTOR (1)

14 NM-3030410-SE FLANGENUTM3 (2)

15 E9816-729-HA0 BUPPRESSURESENSORRELAYCABLEASM (2)

16 PV-0105051-00 MECHANICALVALVE (2)

17 SL-6043092-TN SCREWM4L=30 (4)

18 E4325-725-000 BANKSENSORPLATE(CENSO) (2)

19 BT-0600400-EC URETHANETUBEBLUE6X4 (0.2)

20 PJ-3010651-06 FEMALEUNION (2)

#02

PJ-3080600-07 UNIONY (2)

#02

SL-6041292-TN SCREWM4L=12 (2)

23 HB-0015400-00 RELAY 2

24 HB-0015400-10 RELAY 2

25 401-28380 MINI_SIGNAL_TOWER_ASM 1

26 401-29010 MINISIGNALTOWERCABLEASM(OP) (2)

27 SL-6041292-TN SCREWM4L=12 (8)

- -

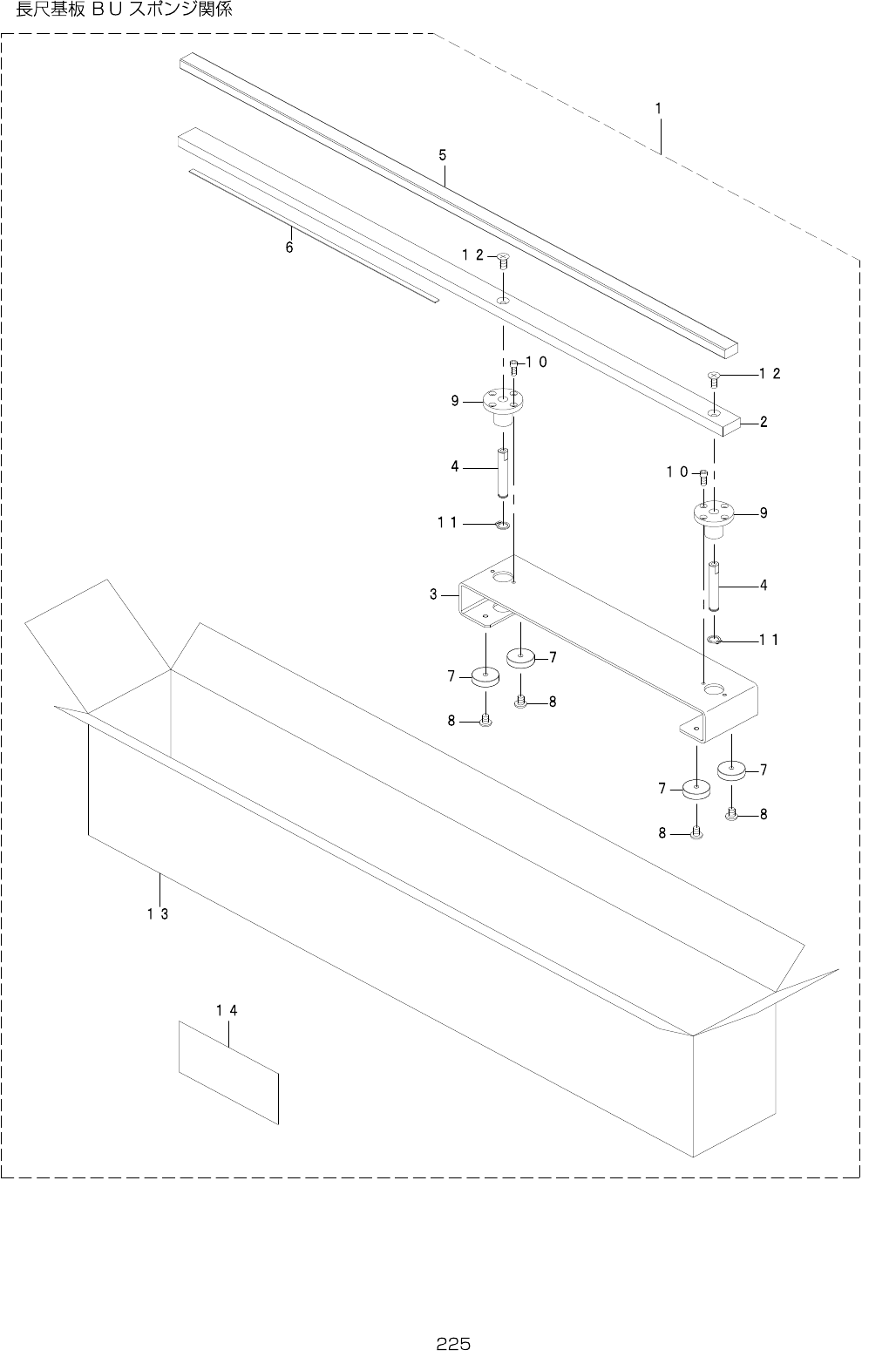

113.LONGBOARDBUSPONGECOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-11593 LONG_BOARD_BU_SPONGE_ASM 1

2 402-11619 SPONGE_BASE (1)

3 402-11621 BU_SPONGE_BASE (1)

4 402-14192 BU_SLIDE_SHAFT (2)

5 401-96546 EMIGASKET (1)

6 401-28507 SLIDE_SHEET (1)

7 401-34189 MAGNET (4)

8 SM-4040601-SC SCREWM4X0.7L=6 (4)

9 SB-8080001-00 BEARING (2)

10 SM-6030802-TN SCREW (4)

11 RC-0740811-KP C-RING8(7.4) (2)

12 SM-1041001-SC SCREWM4X0.7L=10 (2)

13 400-99436 S_CARTON_L_SIZE (1)

14 E6953-861-B00 CONTENTLABEL (1)
