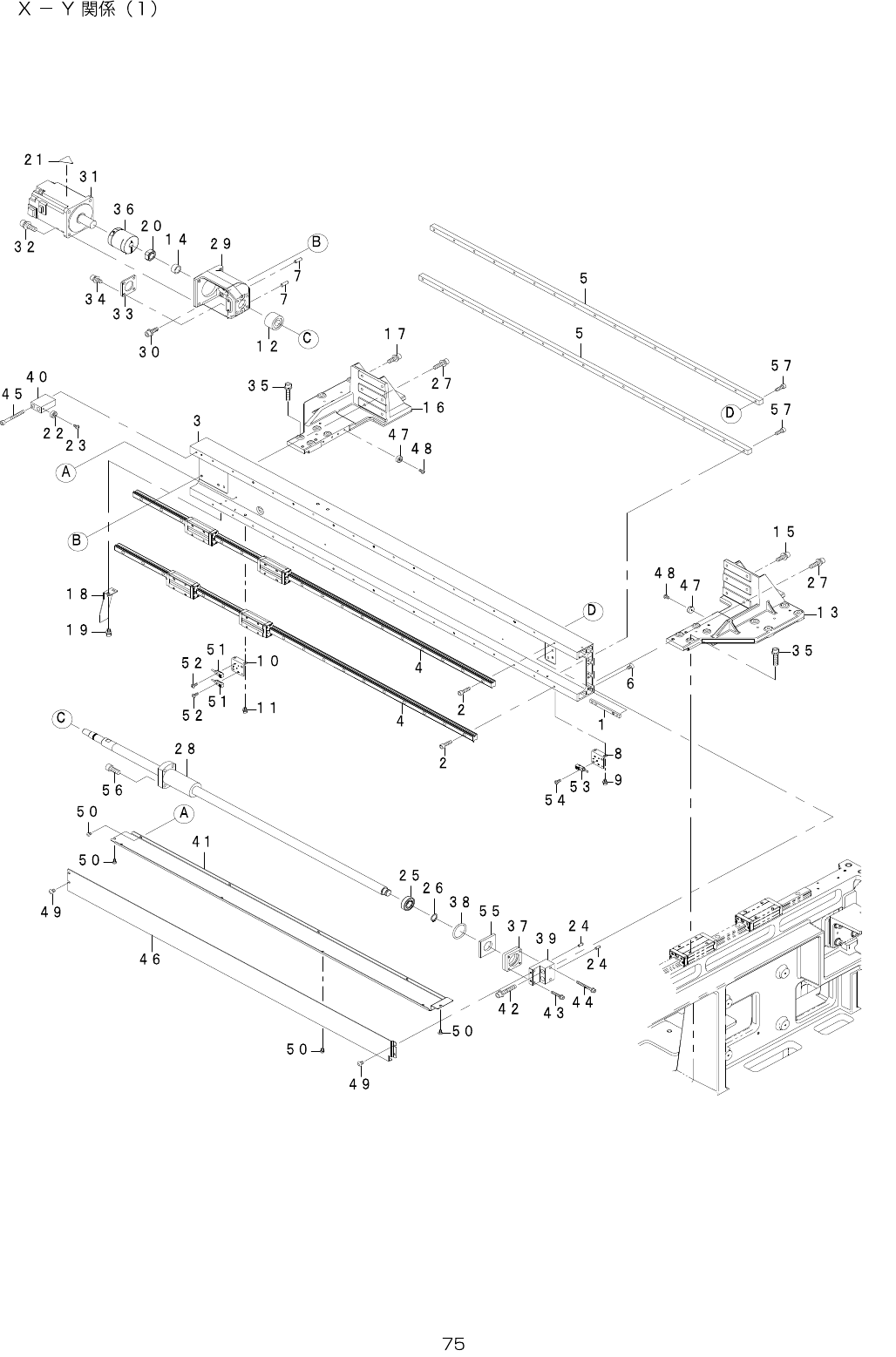

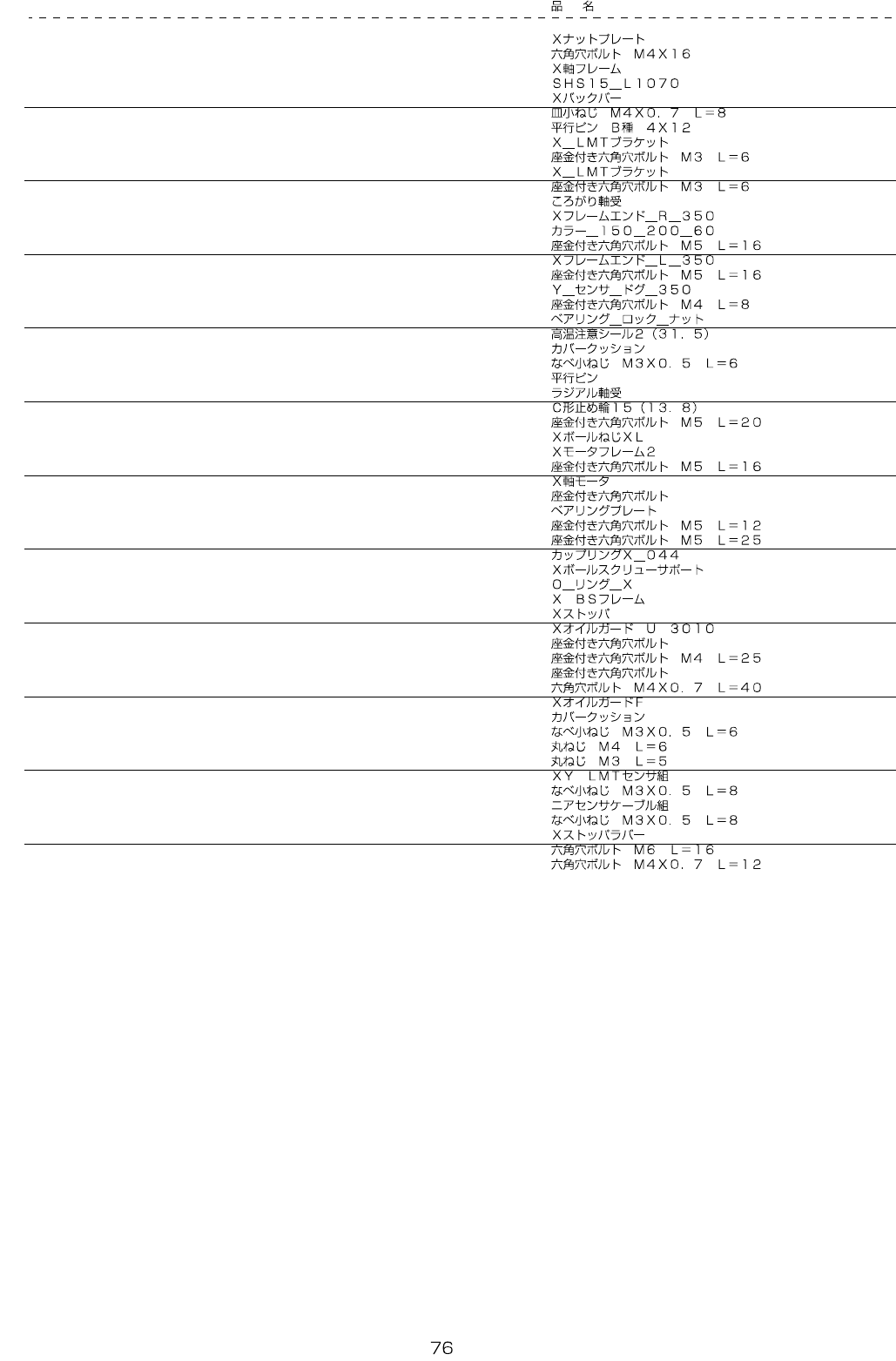

38.X-YCOMPONENTS(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-86201 X_NUT_PLATE 2

2 SM-6041602-TN SCREWM4X16 36

3 401-82757 X_AXIS_FRAME 1

4 401-82754 SHS15_L1070 2

5 401-82756 X_BACK_BAR 2

6 SM-1040801-SC SCREWM4X0.7L=8 4

7 PH-0400122-C0 PARALLELPINTYPEB4X12 2

8 401-46922 X_LMT_BR 1

9 SL-6030692-TN SCREWM3L=6 2

10 401-46922 X_LMT_BR 1

11 SL-6030692-TN SCREWM3L=6 2

12 SB-1150016-00 BEARING 1

13 401-61580 X_FRAME_END_R_350 1

14 401-77466 COLLAR_150_200_60 1

15 SL-6051692-TN SCREWM5L=16 4

16 401-61579 X_FRAME_END_L_350 1

17 SL-6051692-TN SCREWM5L=16 4

18 401-61595 Y_SENSOR_DOG_350 1

19 SL-6040892-TN SCREWM4L=8 2

20 400-93876 BEARING_LOCK_NUT 1

21 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

22 400-49671 COVERCUSHION 1

23 SM-4030601-SC SCREWM3X0.5L=6 1

24 PH-0300082-C0 PIN 2

25 SB-1150004-00 RADIALBEARING 1

26 RC-0150001-KP C-RING15(13.8) 1

27 SL-6052092-TN SCREWM5L=20 4

28 400-98047 XBALLSCREWXL 1

29 401-77463 X_MOTOR_FRAME2 1

30 SL-6051692-TN SCREWM5L=16 4

31 401-29653 XAXISMOTOR 1

32 SL-6062042-TN BOLT 4

33 401-77465 BEARING_PLATE 1

34 SL-6051292-TN SCREWM5L=12 4

35 SL-6052592-TN SCREWM5L=25 16

36 401-72739 COUPLING_X_044 1

37 401-27577 X_BALL_SCREW_SUPPORT 1

38 400-93864 O_RING_X 1

39 401-10217 XBSFRAME 1

40 401-10222 X_STOPPER 1

41 401-08820 XOILGUARDU3010 1

42 SL-6053092-TN SCREW 2

43 SL-6042592-TN SCREWM4L=25 2

44 SL-6044092-TN SCREW 2

45 SM-6044002-TN SCREWM4X0.7L=40 2

46 401-82749 X_OIL_GUARD_F 1

47 400-49671 COVERCUSHION 2

48 SM-4030601-SC SCREWM3X0.5L=6 2

49 SM-3040652-TN SCREWM4L=6 4

50 SM-3030552-TN SCREWM3L=5 10

51 401-65028 XYLMTSENSORASM 2

52 SM-4030801-SC SCREWM3X0.5L=8 2

53 401-29002 NEARSENSORCABLEASM 1

54 SM-4030801-SC SCREWM3X0.5L=8 1

55 401-82752 X_STOPPER_RUBBER 1

56 SM-6061602-TN SCREWM6L=16 4

57 SM-6041202-TN SCREWM4X0.7L=12 34

- -

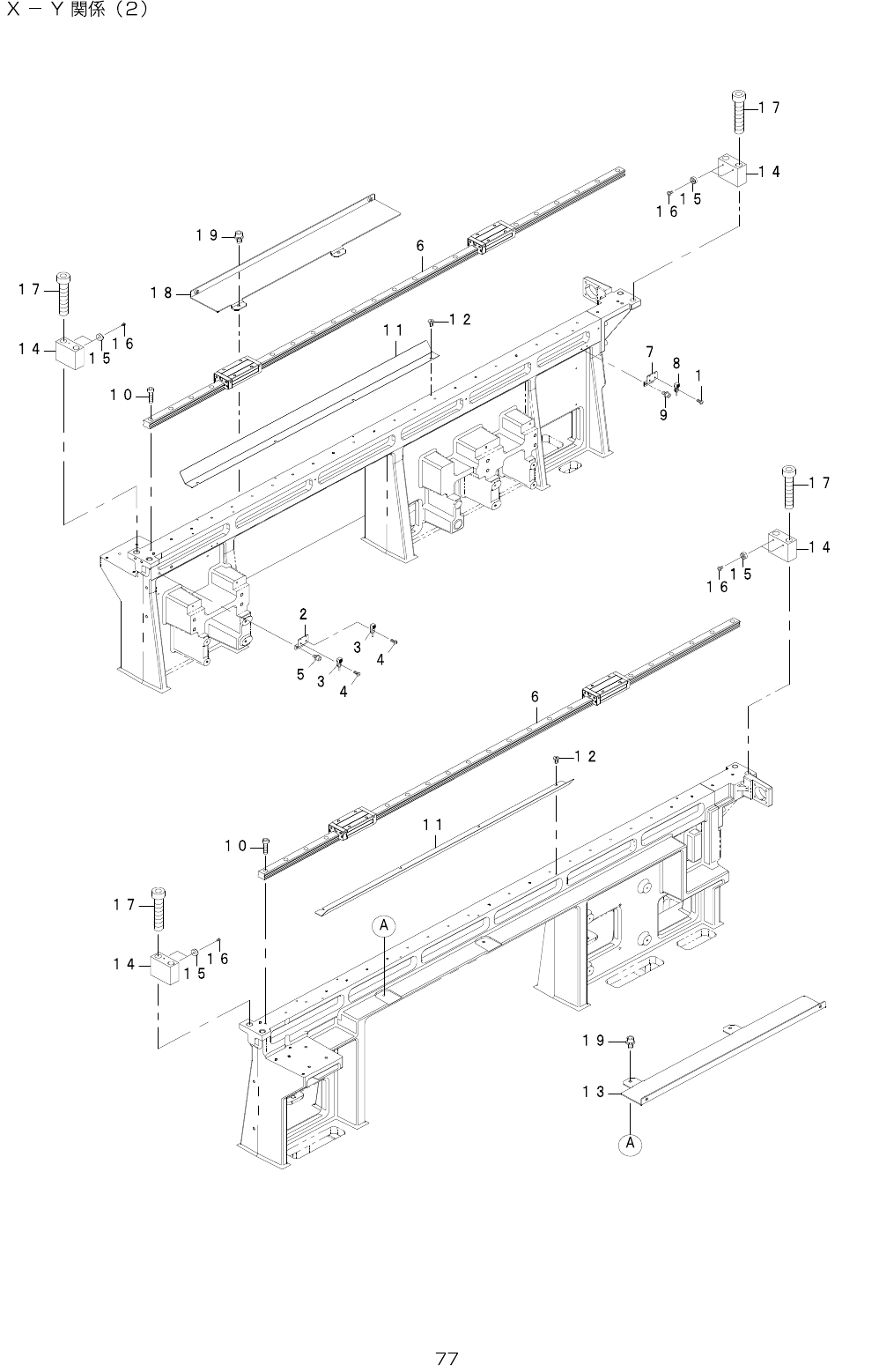

39.X-YCOMPONENTS(2)
