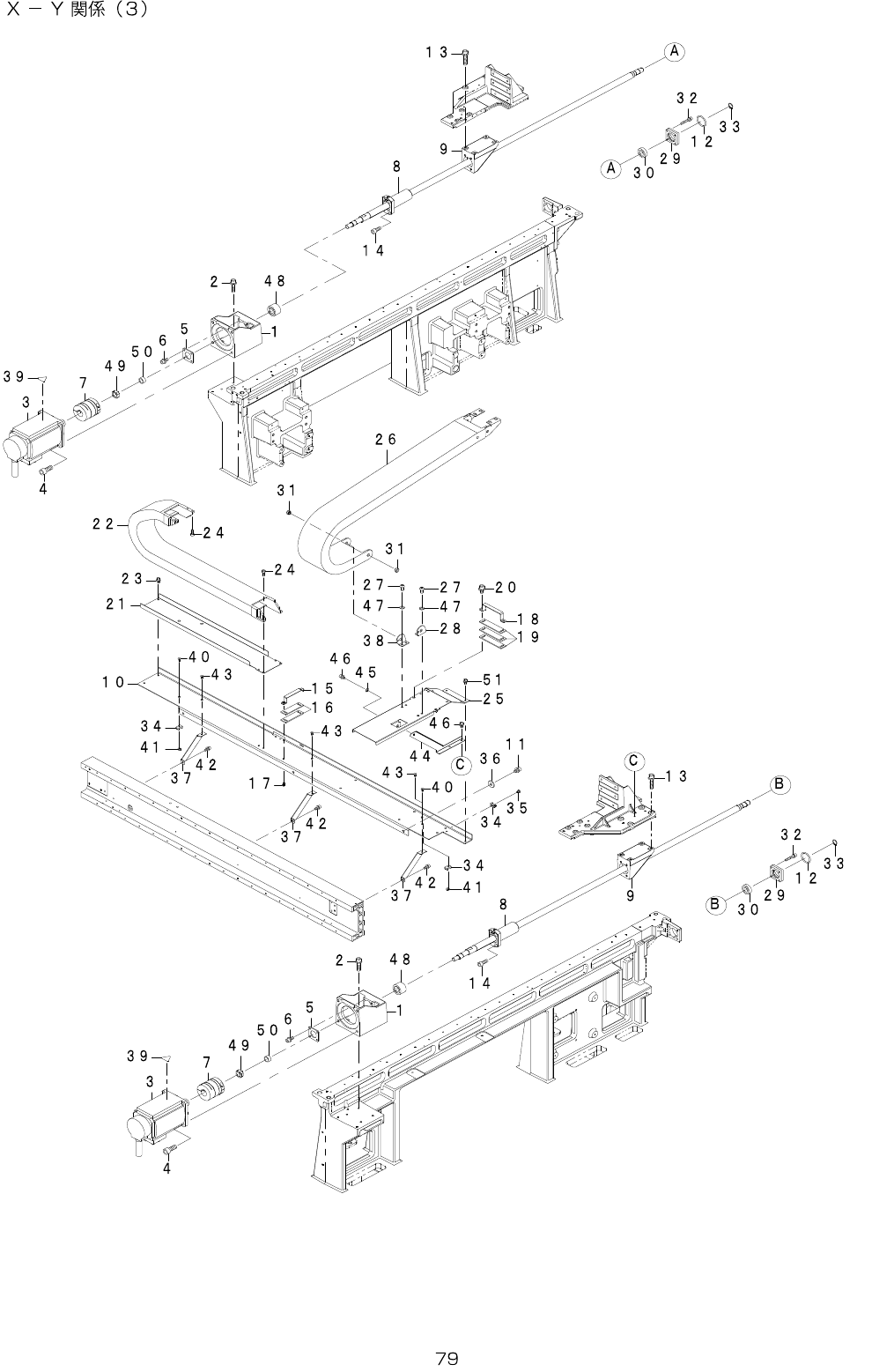

39.X-YCOMPONENTS(2)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 SM-4030801-SC SCREWM3X0.5L=8 1

2 401-46929 Y_SENSOR_BR 1

3 401-65028 XYLMTSENSORASM 2

4 SM-4030801-SC SCREWM3X0.5L=8 2

5 SL-6040892-TN SCREWM4L=8 2

6 401-82753 SHS20_L1404 2

7 401-46929 Y_SENSOR_BR 1

8 401-29002 NEARSENSORCABLEASM 1

9 SL-6040892-TN SCREWM4L=8 2

10 SM-6051602-TN SCREW 46

11 401-46931 Y_OIL_GUARD 2

12 401-28154 LOW_HEAD_SCREW_M4 8

13 401-61662 Y_UNDER_OIL_GUARD_350_R 1

14 401-66638 Y_STOPPER 4

15 400-49671 COVERCUSHION 8

16 SM-4030601-SC SCREWM3X0.5L=6 8

17 SM-6126002-TN SCREWM12L=60 8

18 401-61661 Y_UNDER_OIL_GUARD_350_L 1

19 SL-6061292-TN SCREWM6L=12 4

- -
