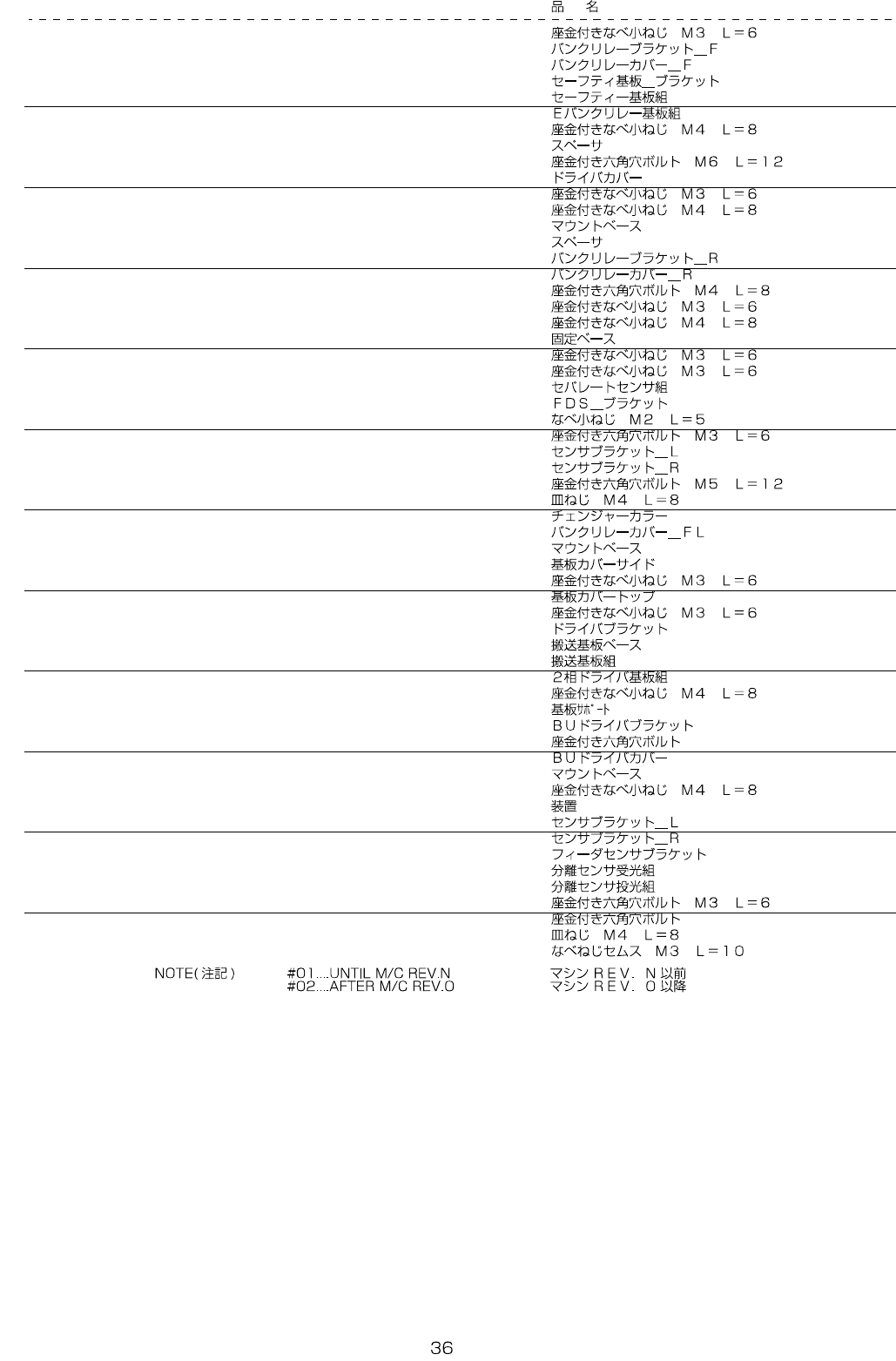

- - 19. COVERCOMPONEN TS(1) (UNTILM/CREV.C)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 SL-4030691-SC SCREWM3L=6 8
2 401-83016 BANK_RELAY_BR_F 1
3 401-83017 BANK_RELAY_COVER_F 1
4 401-83020 SAFETY_PWB_BR 1
5 401-28872 SAFETYPCBASM 1
6 401-28876 EBANKRELAYPCBASM 2
7 SL-4040891-SC SCREWM4X8 4
8 HX-0033900-0N SPACER 1
9 SL-6061292-TN SCREWM6L=12 5
10 401-83074 DRIVER_COVER 2
11 SL-4030691-SC SCREWM3L=6 6
12 SL-4040891-SC SCREWM4X8 8
13 HX-0070600-0A MOUNTBASE 13
14 HX-0035400-0F SPACER 10
15 401-83018 BANK_RELAY_BR_R 1
16 401-83019 BANK_RELAY_COVER_R 1
17 SL-6040892-TN SCREWM4L=8 3
18 SL-4030691-SC SCREWM3L=6 6
19 SL-4040891-SC SCREWM4X8 2
20 HX-0029400-00 FIXEDBASE 6
21 SL-4030691-SC SCREWM3L=6 10
22 SL-4030691-SC SCREWM3L=6 4
23
#01
401-86919 SEPARATESENSORASM 6
24
#01
401-84970 FDS_BR 12
25
#01
SM-4020501-SC SCREWM2L=5 24
26
#01
SL-6030692-TN SCREWM3L=6 24
27
#01
401-83196 SENSOR_BR_L 2
28
#01
401-83197 SENSOR_BR_R 2
29
#01
SL-6051292-TN SCREWM5L=12 4
30
#01
SM-1040852-TP DISHSCREW 4
31
#01
401-53419 CHANGER_COLLAR 12
32 401-83497 BANK_RELAY_COVER_FL 1
33 HX-0070600-00 MOUNTBASE 20
34 401-83075 PWB_COVER_SIDE 2
35 SL-4030691-SC SCREWM3L=6 10
36 401-83076 PWB_COVER_TOP 2
37 SL-4030691-SC SCREWM3L=6 8
38 401-83073 DRIVER_BRACKET 2
39 401-83072 CONVEYOR_PWB_BASE 2
40 401-28875 CONVEYORPCBASM 2
41 401-54209 2PHASEDRIVERPCBASM 5
42 SL-4040891-SC SCREWM4X8 4
43 HX-0035400-0K BASESUPPORT 2
44 401-99983 BU_DRIVER_BR 1
45 SL-6061292-TN SCREW 2
46 402-16701 BU_DRIVER_COVER 1
47 HX-0070600-0A MOUNTBASE 1
48 SL-4040891-SC SCREWM4L=8 2
49
#02
HX-0068900-00 UNIT 1
50
#02
402-18654 SENSOR_BR_L 2
51
#02
402-18655 SENSOE_BR_R 2
52
#02
402-18656 FEEDER_SENSOR_BR 12
53
#02
401-54796 SEPARATESENSORRECEIVERASM 6
54
#02
401-54797 SEPARATESENSOREMISSIONASM 6
55
#02
SL-6030692-TN SCREWM3L=6 24
56
#02
SL-6051292-TN BOLT 4
57
#02
SM-1040852-TP DISHSCREW 4
58
#02
SL-4031081-SC SCREWM3X10 24
- -

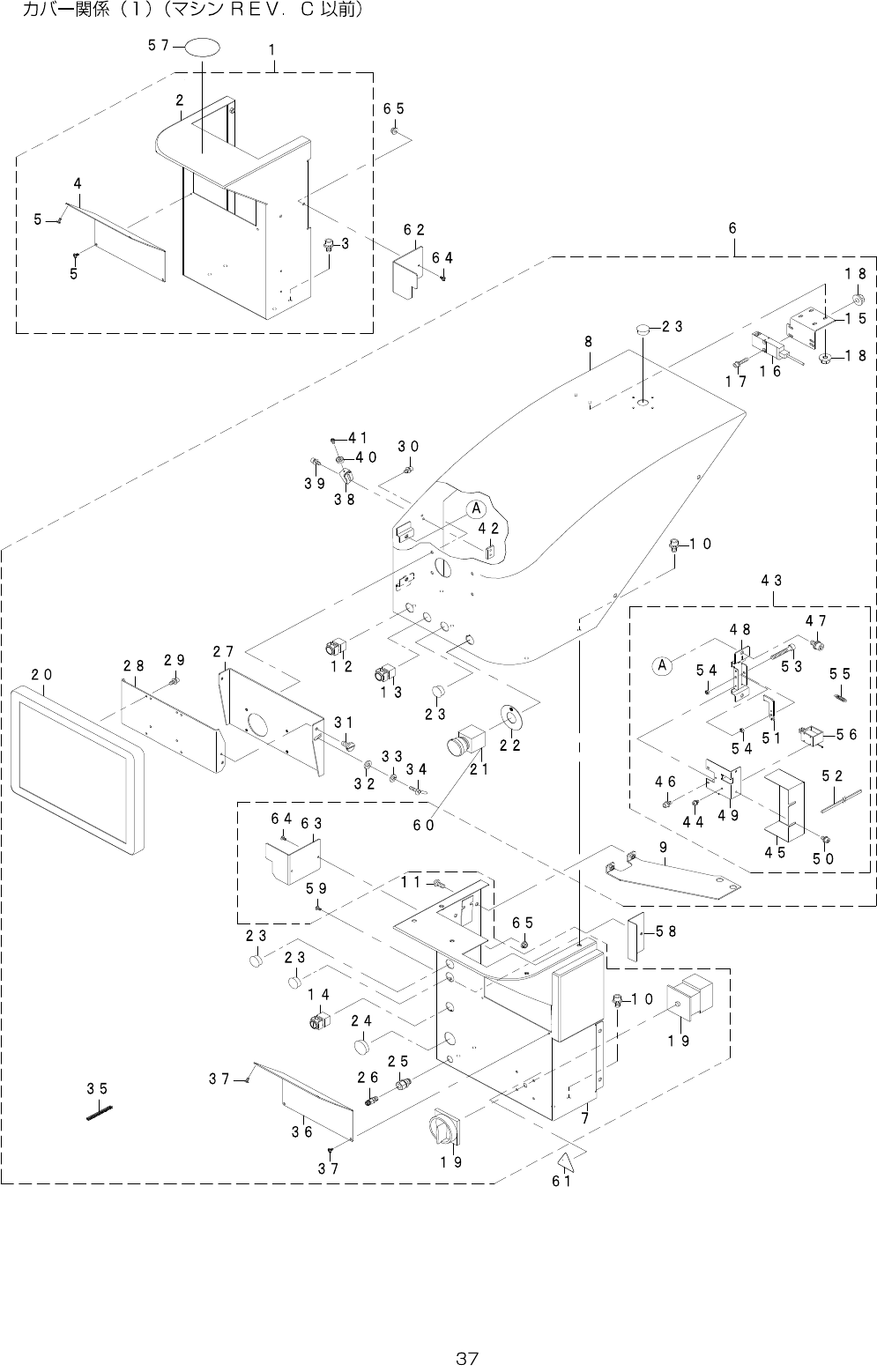

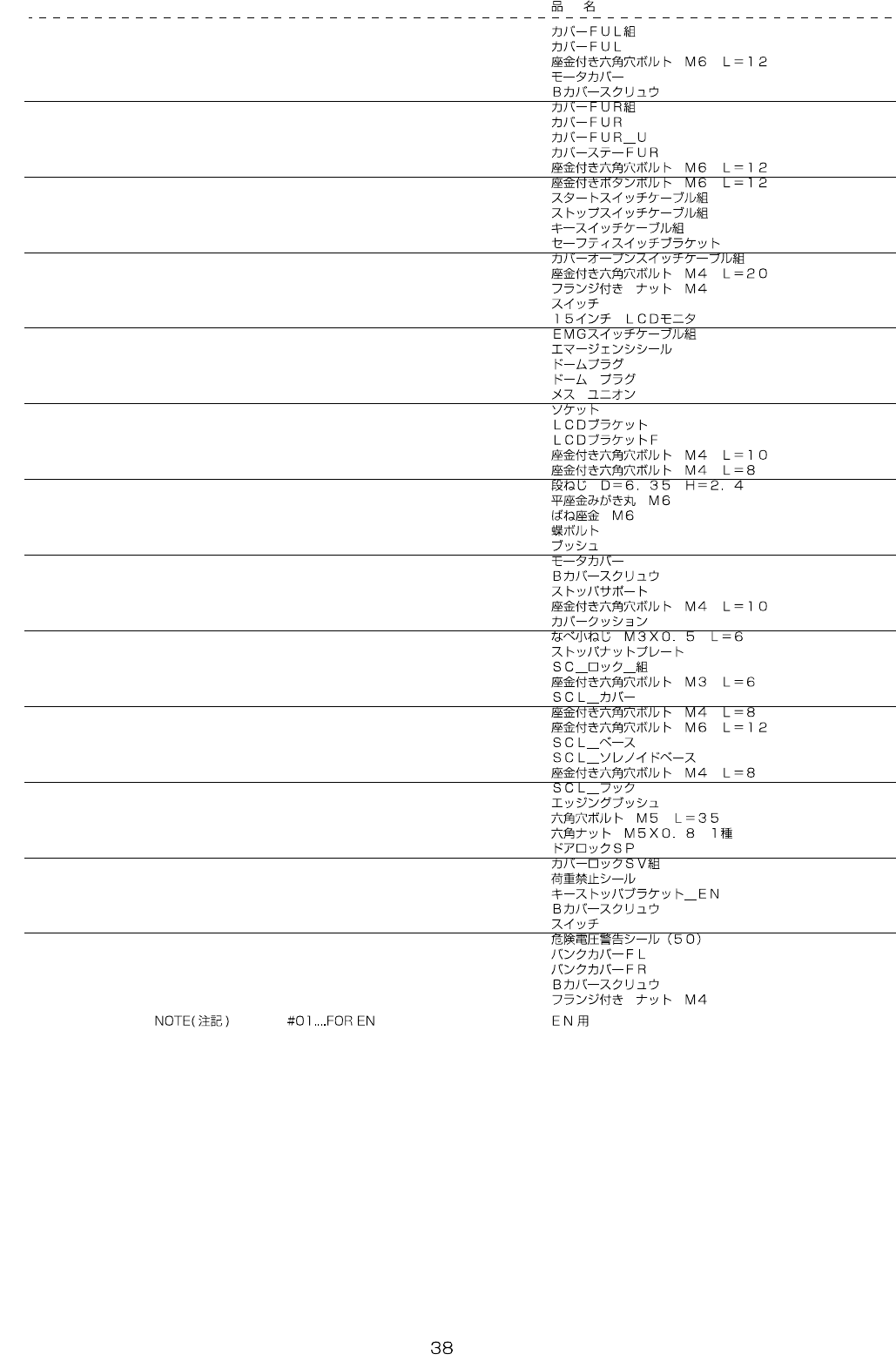

19.COVERCOMPONENTS(1)(UNTILM/CREV.C)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83521 COVER_FUL_ASM 1
2 401-83435 COVER_FUL (1)
3 SL-6061292-TN SCREWM6L=12 (4)
4 401-83443 MOTOR_COVER (1)
5 400-81751 B_COVER_SCREW (4)
6 401-83519 COVER_FUR_ASM 1
7 401-83464 COVER_FUR (1)
8 401-83465 COVER_FUR_U (1)
9 401-83472 COVER_STAY_FUR (1)
10 SL-6061292-TN SCREWM6L=12 (9)
11 SL-3061232-TN SCREWM6L=12 (2)
12 401-90601 STARTSWCABLEASM (1)
13 401-90602 STOPSWCABLEASM (1)
14 401-90603 KEYSWCABLEASM (1)
15 401-83448 SAFETYSWITCHBR (1)
16 400-02254 COVEROPENSWCABLEASM (1)
17 SL-6042042-TN SCREWM4L=20 (2)
18 NM-3040520-SF FLANGENUTM4 (4)
19 401-88712 SWITCH (1)
20 401-58158 15INCHLCDMONITOR (1)
21 401-29025 EMGSWCABLEASM (1)
22 401-26708 EMERGENCY_SEAL (1)
23 HX-0032600-0A GROMMET (4)
24 HX-0032600-0M GROMMET (1)
25 PJ-3010651-06 FEMALEUNION (1)
26 E2904-700-000 SOCKET (1)
27 401-83444 LCD_BRACKET (1)
28 400-47170 LCD_BRACKET_F (1)
29 SL-6041092-TN SCREWM4L=10 (4)
30 SL-6040892-TN SCREWM4L=8 (4)
31 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)
32 WP-0641601-SC WASHERM6 (1)
33 WS-0610002-KN SPRINGWASHERM6 (1)
34 161-87007 WINGBOLT (1)
35 E5348-033-100 GROMMET (0.156)
36 401-83443 MOTOR_COVER (1)
37 400-81751 B_COVER_SCREW (4)
38 400-01464 STOPPERSUPPORT (1)
39 SL-6041092-TN SCREWM4L=10 (2)
40 400-49671 COVERCUSHION (1)
41 SM-4030601-SC SCREWM3X0.5L=6 (1)
42 401-47221 STOPPER_NUT_PLATE (1)
43 401-47273 SC_LOCK_ASM (1)
44 SL-6030692-TN SCREWM3L=6 (4)
45 401-11824 SCL_COVER (1)
46 SL-6040892-TN SCREWM4L=8 (2)
47 SL-6061292-TN SCREWM6L=12 (2)
48 401-11821 SCL_BASE (1)
49 401-47117 SCL_SOLENOID_BASE (1)
50 SL-6040892-TN SCREWM4L=8 (2)
51 401-47118 SCL_HOOK (1)
52 HX-0036700-0A GROMMET (0.015)
53 SM-6053502-TN SCREWM5L=35 (1)
54 NM-6050001-SC NUTM5X0.8TYPE1 (2)
55 401-47119 DOOR_LOCK_SP (1)
56 401-46405 COVERLOCKSVASM (1)
57 E5721-729-000 LABEL 1
58
#01
401-87827 KEY_STOPPER_BR_EN 1
59
#01
400-81751 B_COVER_SCREW 1
60
#01
HA-0062600-10 SWITCH 1
61 CM-3001000-04 DANGERLABEL(50) 1
62 401-86066 BANK_COVER_FL 1
63 401-86067 BANK_COVER_FR 1
64 400-81751 B_COVER_SCREW 4
65 NM-3040520-SF FLANGENUTM4 4
