Installation of SQL 2008 R2 Express 02/2011 Edition 14 The window should look like this: Fig. 3-6: SQL Server Installation Center - Installation → Click on New SQL Server stand-alon e installation or add features to an e…
Installation of SQL 2008 R2 Express 02/2011 Edition
13
An Explorer Window appears.
→ Navigate to the following folder:
<DRIVE>:\TOOLS\SQL 2008R2\SQL2008R2EXPREDWITHTOOLS
→ Double-click the application SQLEXPRWT_X86_ENU.EXE / SQLEXPRWT_X64_ENU.EXE
(depending on the Operating System, you use) in the folder.
After some seconds, the following dialog is displayed:
Fig. 3-5: SQL Server Installation Center - Planning
→ Click on Installation on the left side
Installation of SQL 2008 R2 Express 02/2011 Edition
14
The window should look like this:

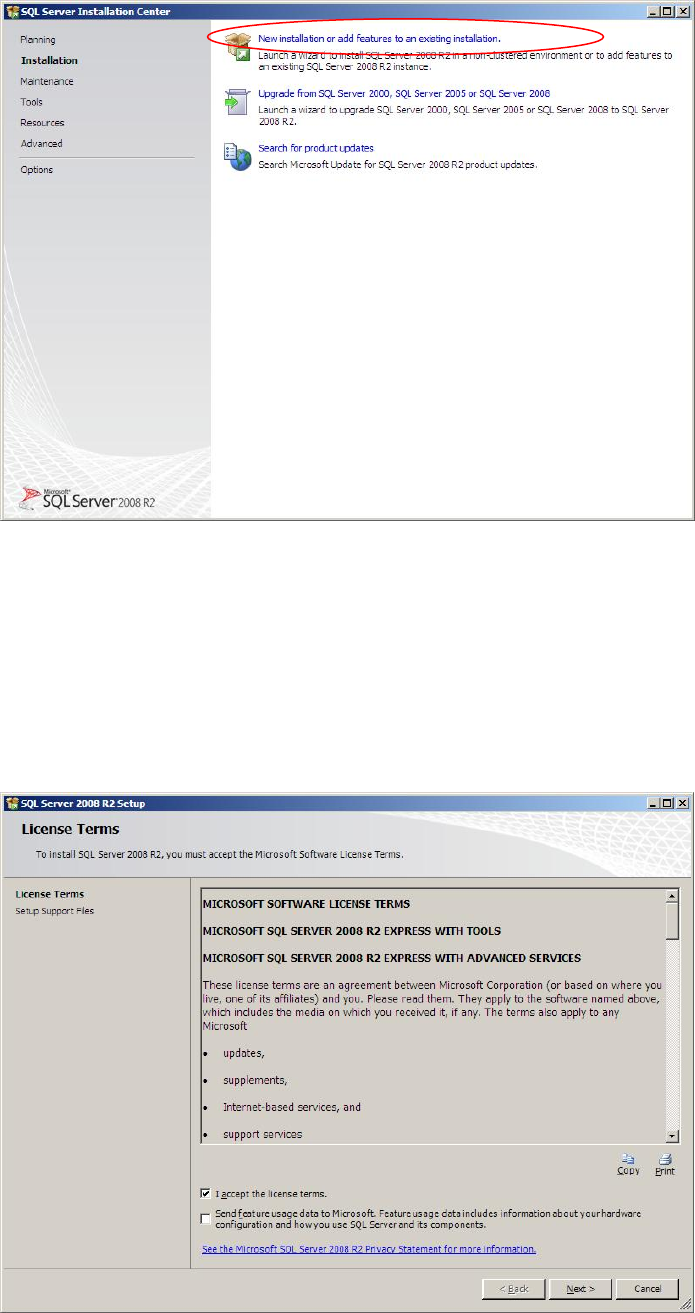

Fig. 3-6: SQL Server Installation Center - Installation
→ Click on New SQL Server stand-alone installation or add features to an existing
installation.
After some seconds, the following window will be displayed:
Fig. 3-7: SQL Server Setup License Terms
→ Ensure the checkbox besides I accept the license terms is checked.
Installation of SQL 2008 R2 Express 02/2011 Edition
15
→ Click the Next > button to continue.
The following window might be displayed:

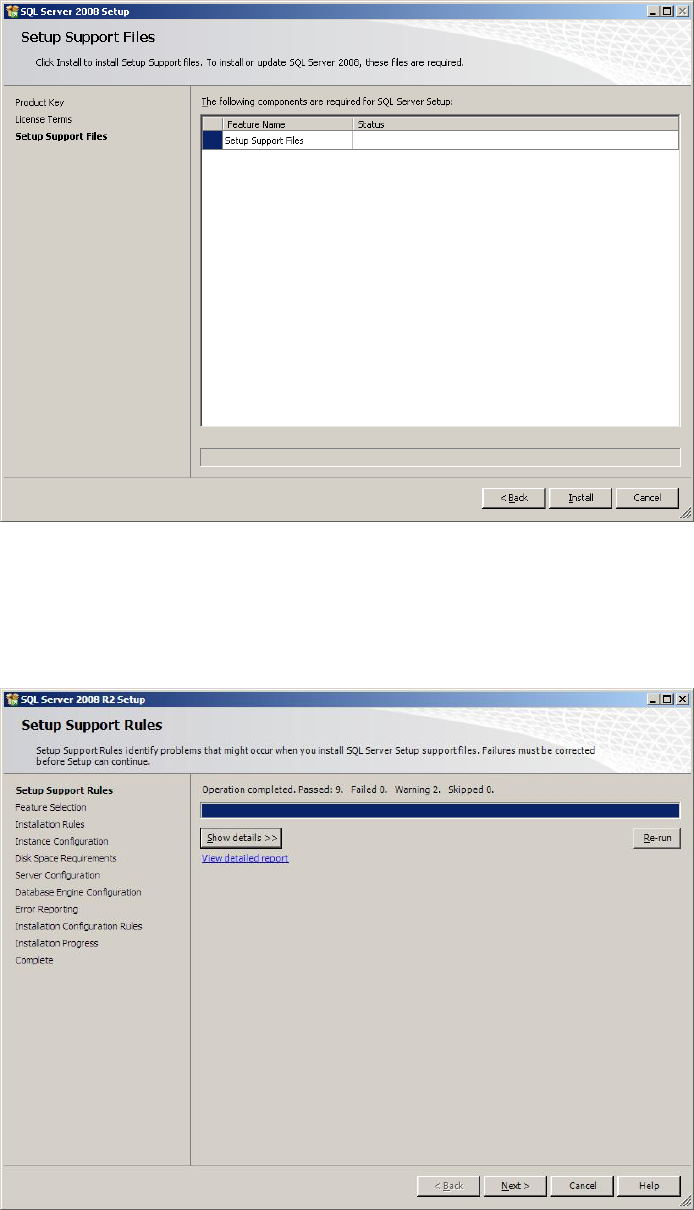

Fig. 3-8: SQL Server Setup Support Files
→ Click the Install button to continue installing support files. This may take some seconds.
The “Setup Support Rules” window reappears.
Fig. 3-9: SQL Server Setup Support Rules
→ Click the Next > button to continue.
