5-1
Service Part List
第5章. Service Part List

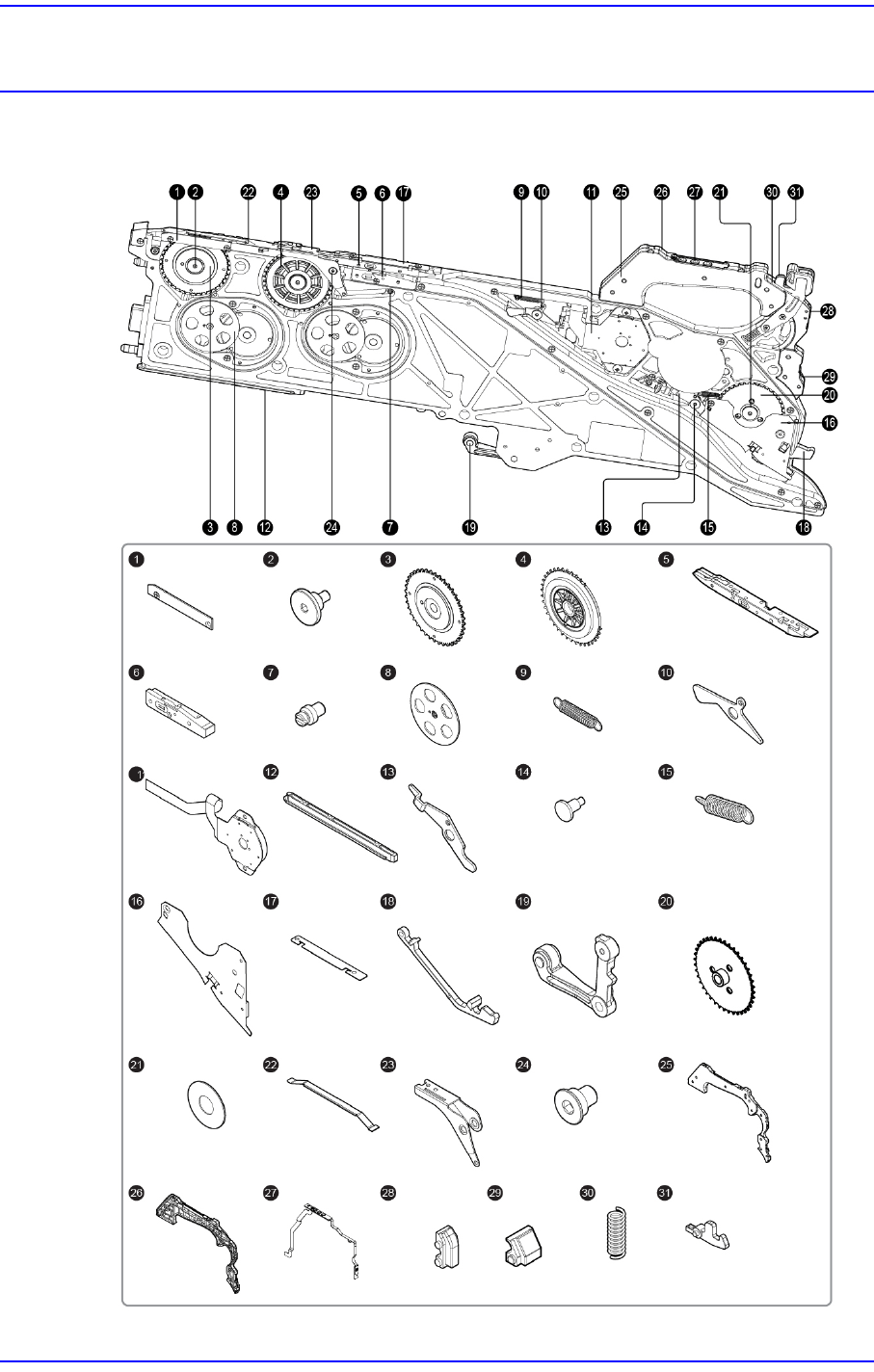

5.1. Service part List
5-2
EXCEN Auto Loading Tape Feeder User Guide

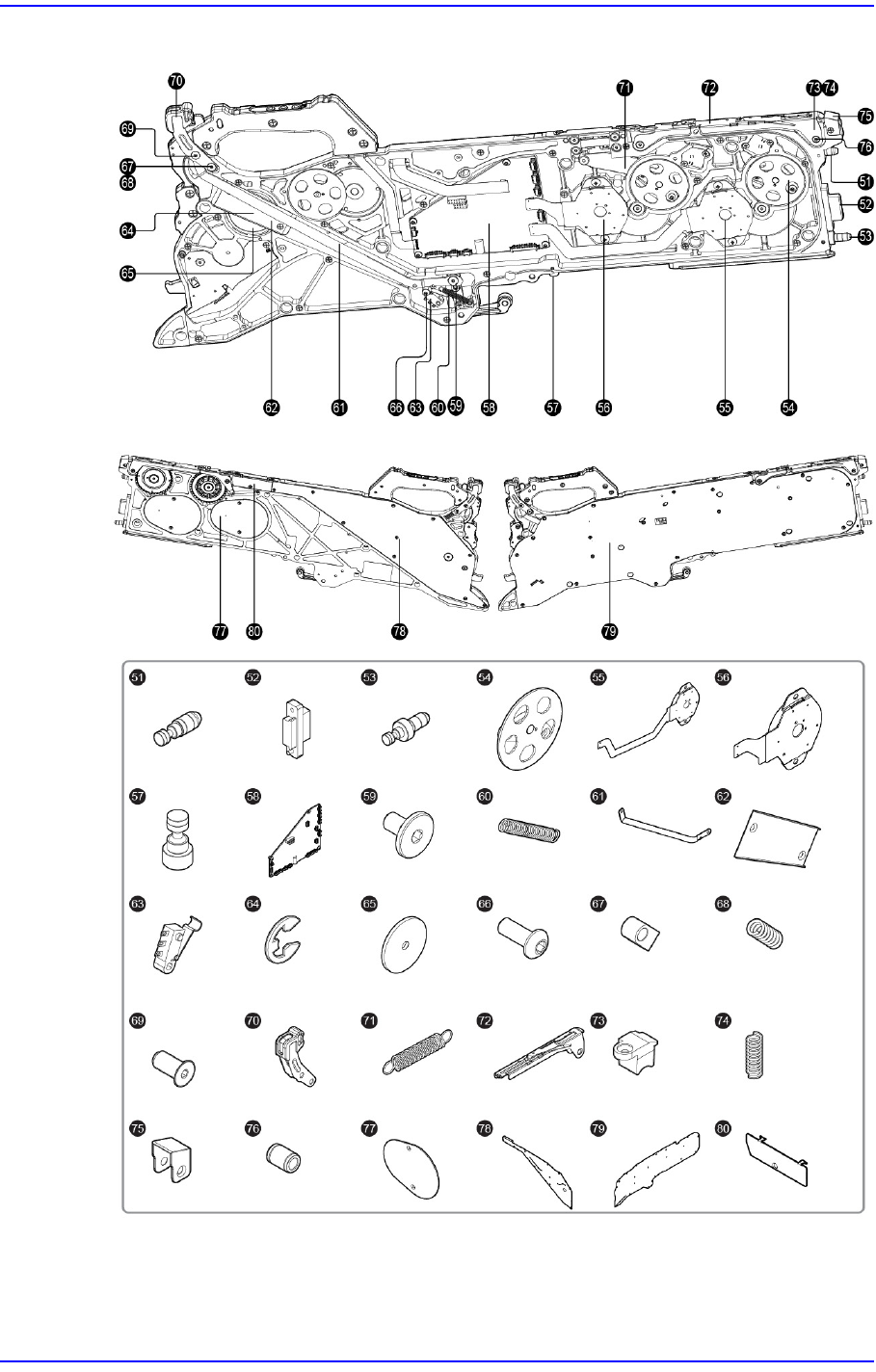

NO. PARTNO. PART NAME Q'TY
1 FC30-002102A SIDE-SUPPORT-PLATE 1
2 MC19-000384A SPROCKET SHAFT 2
3 AM03-013226A INDEX-SPROCKET AF8 ASSY 1
4 MC23-000060A M2_SPROCKET 1
5 AM03-013412A SENSOR-HOLDER-TOP 1
6 AM03-013413A SENSOR-HOLDER-DOWN 1
7 J70661204A LOCKER-SPG-SHAFT 5
8 AM03-010170A MOTOR GEAR SHAFT AF8 ASSY 3
9 FC38-000173A FC38-000173A 1
10 FC29-003409A REEL1-DOG 1
11 AM03-011743A AF_SPLICING_MOTOR_ASSY 1
12 FC09-000866A INSTALL GUIDE 1
13 FC29-003230A REEL2-DOG 1
14 MC19-000895A DOG-SHAFT1 1
15 FC38-000174A REEL2-DOG-SPRING 1
16 FC29-003228A TAPE-SUPPORT-LEFT 1
17 FC15-002926A UPPER_COVER 1
18 FC29-003231A TAPE-PUSHER 1
19 AM03-013232A CLAMP V ASSY 1
20 AM03-013237A SPLICING SPROCKET ASSY 1
21 FC18-001261A SPLICING-BASE-WASHER 1
22 FC29-003630A SUPPORT SPRING_2 1
23 AM03-013396A AF08-TAPE-GUIDE-LOCKER AF8 ASSY 1
24 MC19-000989A LOCKER-SHAFT 2
25 FC29-002759A HANDLE_LEFT 1
26 FC29-002758A HANDLE_RIGHT 1
27 AM03-011746A AF_UI_A'SSY 1
28 FC15-002145A LED_LIGHT_REAR COVER 1
29 FC38-000172A ESD-SPRING 1
30 FC09-000865A CLAMP HOOK 1
31 J70661295A CLAMP-HOOK-SPRING 1
5-3
Service Part List
