15 – 5
Version 8.0
Chapter 15 Routine Inspections and Maintenance
15.7Cleaning the Parts Reject Box (Every 8 Hours)
Parts deemed no good by vision processing or unplaced parts are rejected
at station 10's parts reject box. Inspect this box and remove the rejected
parts.
15.8Cleaning Inside the Spool Filter (Every 2 Months)
Follow the steps outlined in Section 14.5,Valve Replacement backwards to
remove the spool. Clean the center of the spool with an air gun.
Note: The filter cannot be replaced.
Fig. 15-5 Cleaning Inside the Spool Filter
CP IV-3 Maintenance
Chapter 15 Routine Inspections and Maintenance
15.9Cleaning the Air Filter (Monthly)
Dust proof filters have been fitted to the control box cooling fan and the
machine air conditioning fans. If these filters become clogged, the flow of
air to these areas is restricted. This will lead these areas to heat up,
potentially causing damage to the machine.
Remove the air filter, then clean it with an air gun or vacuum cleaner, or
wash it with a mild (pH-neutral) detergent. The filter locations are
indicated in the diagram below.
Fig. 15-6 Cleaning the Air Filter
15 – 6
Version 8.0
CP IV-3 Maintenance
15 – 7
Version 8.2
Chapter 15 Routine Inspections and Maintenance

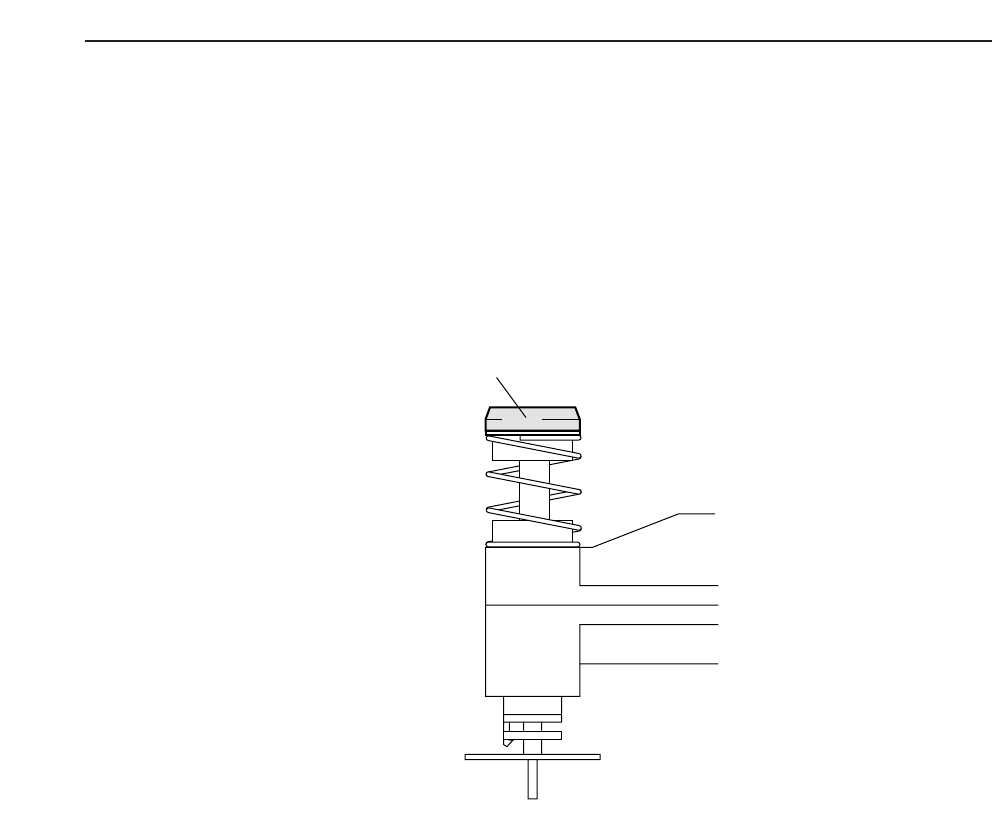

15.10Cleaning the Nozzle Clutch (Monthly)
To prevent slippage caused by grease that has adhered to the clutch,
cleaning should be performed at regular intervals.
Wipe the nozzle clutch with a dry cloth. If this is not sufficient to get all
the grease off, apply a small amount of alcohol based detergent to the
cloth, but in this case, a dry cloth should also be used afterwards to wipe
away any residue.
Note: The polyester based rubber used on the clutch does not stand up well
to cleaning liquids or moisture, and care should be taken to avoid
contact with these areas.
Nozzle clutch
