User Manual SIPLACE CS 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
33
2.2.5 Warning label W209 on the EMERGENCY STOP buttons
2
Warning label W209 in Fig. 2.2 - 10, item no. 03009349-01 (number per placement system: 2)
2
Fig. 2.2 - 10 Warning label W209 on the EMERGENCY STOP buttons
Item W209, item no. 03009349-01
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA,
warning label W209 is affixed to the extension
kit instead of the yellow ring on the EMER-
GENCY STOP buttons.
2 Operational safety User Manual SIPLACE CS
2.3 Laser classification Software Version SR.408.xx03/2006 US Edition
34
2.2.6 Warning label "Danger of crushing" on the component trolley
2
Warning label "Danger of Crushing" (number per component trolley: 2)
2
Fig. 2.2 - 11 Warning label Danger of crushing on the component trolley
Warning label Danger of crushing, item no. 00343357-01
2.3 Laser classification
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2
2
2
2
WARNING DANGER OF CRUSHING!
Do not place your hands in the danger area
when lowering the component feeder table.
DANGER OF CRUSHING!
All installed camera systems and the whole machine when ready for operation
are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
User Manual SIPLACE CS 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.4 Safety instructions for operating the machine
35
2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for docking and undocking the component trolley

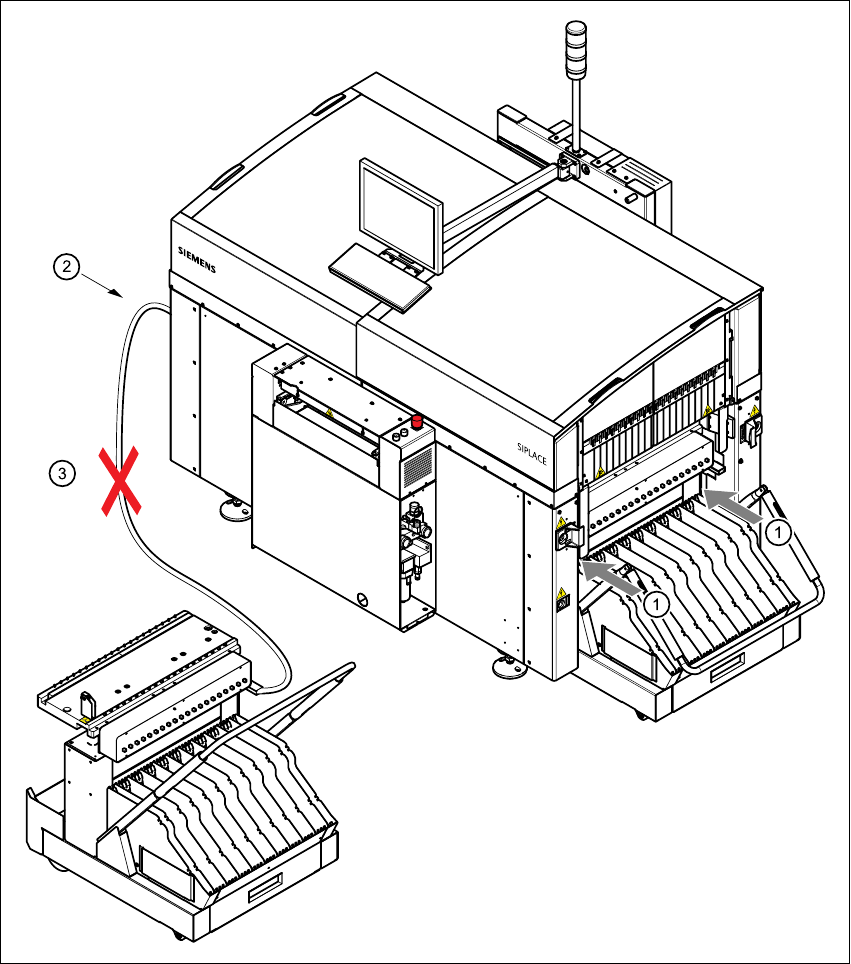

Fig. 2.4 - 1 Safety instructions on the component trolley
