7OM-1603 4-12 Chapter 4 : 3. Maintenance Spots 3.2 Inspection, Cleaning, and Lubrication Spots The following describes about the maintenance tasks required for each individual units. Reference Refer to "2. Maintenan…
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-11
3. Maintenance Spots
3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover back in place.
Traverse Cart
Elevator Shaft
Magazine Base
Cutter Unit
F7D3
Reference
Refer to "3.2 Inspection, Cleaning, and Lubrication Sports" and the subsequent
items for the detailed information on the spots of each section to be maintained
and how to maintain them.
1003-002
7OM-1603
4-12
Chapter 4 : 3. Maintenance Spots
3.2 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each individual
units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classied based
on frequency.
3.2.1 Pallet
Note
When the pallet is warped, the component pickup rate may deteriorate.
Pallet
Every Month Inspection and Cleaning
Required Time: 1 minute
When the pallet is dirty, clean both top and
bottom surfaces with a rag.
Upper Surface
Every 3 Months Inspection
Required Time: 1 minute
Check for the warpage of the pallet with a
scale. (Up to Max. 0.5 mm)
Rails
Every 3 Months Inspection
Required Time: 2 minutes
Check the wear and warpage of the bottom
surfaces of the pallet rails with a scale.
(Up to Max. 0.3 mm)
Pallet F7D4
1109-002
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-13

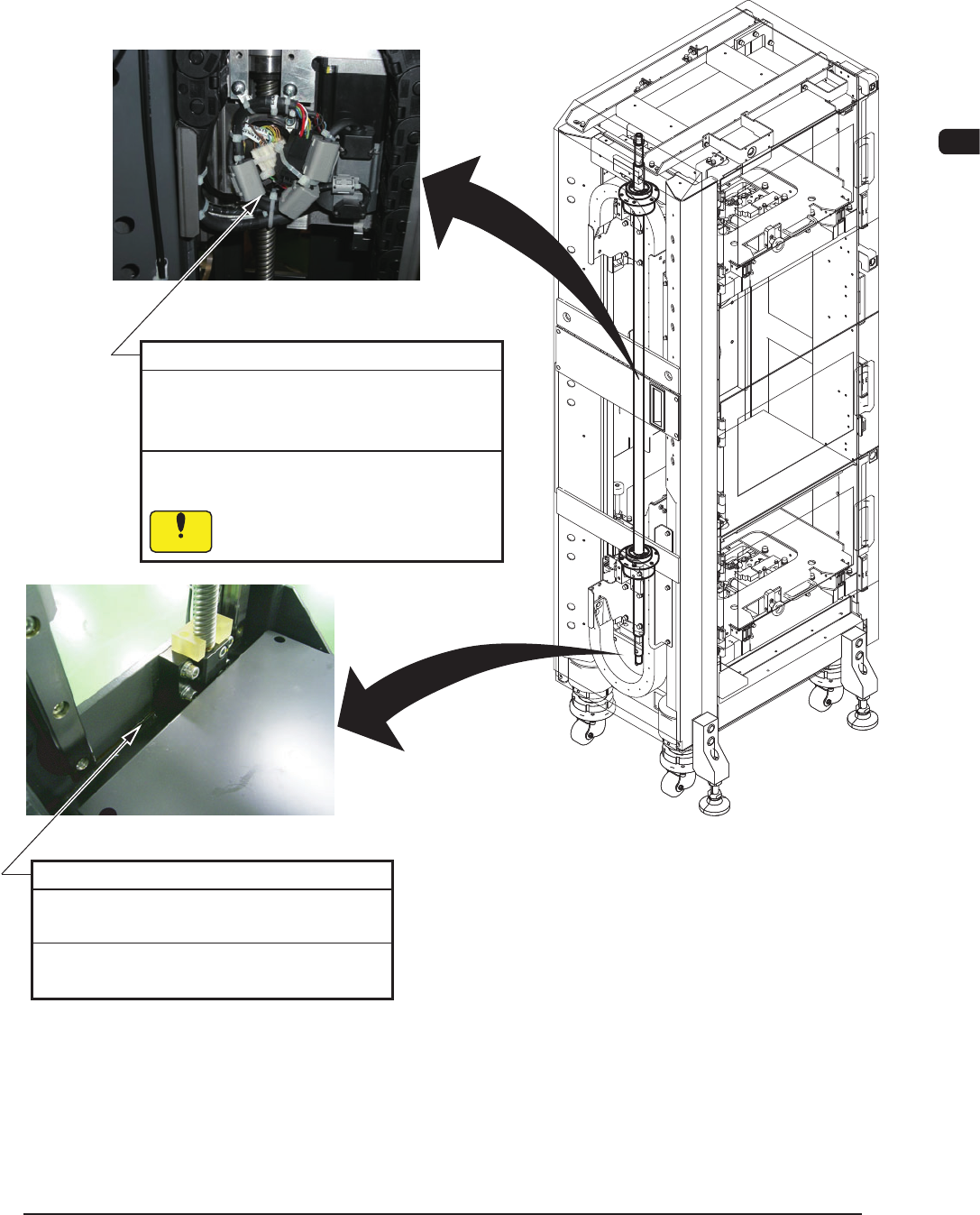

3.2.2 Elevator Unit
Before the maintenance work, manually move the elevator to the position for
easier lubrication work and turn off the power.
The maintenance cover must be detached to apply grease to the elevator shaft.
Ball Screw
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
Wipe off old grease with an oiled rag and
apply new one with a brush.
Take ample care not to leave any
waste threads after cleaning.
Frame Lower Surface
Every 3 Months Lubrication and Cleaning
Required Time: 5 minutes
Wipe off the grease accumulated on the
frame lower surface using a rag.
Notice
F7D5
