ACT - Accuracy Check Tool / User Manual 06/2015 Edition
46
4.2.4 Loading the Plate into the Measuring Machine
4.2.4.1 D- and X-Series
On the SIPLACE D- and X-series machines the glass plate can be inserted into the conveyor by
opening the covers of the input section (extension kit) or the machine cover.
► Insert the plate directly into the input section of the measuring machine so that the sensor is
activated.
► Press Start.
The board is automatically moved into the placement area and gets placed.
Thereafter, the measurement is automatically started, see section 4.2.5.

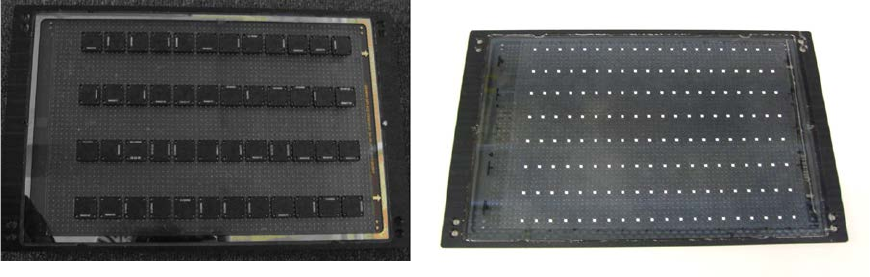

Abbildung 4-20 and Abbildung 4-21 show an assembled ACT plate, in one example with glass
components and in the other with ceramic components.
Figure 4-20: Measuring plate with placed glass comp. Figure 4-21: Measuring plate with placed ceramic comp.
ACT - Accuracy Check Tool / User Manual 06/2015 Edition
47
4.2.4.2 SX-Series and DX-Series
On the SIPLACE SX- and DX-series machines the reachability to insert the plate in the input
section is limited, particularly on machines that are placed in the middle or at the end of a line.
Therefore, the plate has to be inserted at the first machine of the line.
► Press Start.
► Insert the plate up to 50%+x into the input section of the first machine.
► Click on the Conveyor interface button directly under the conveyor in the station software
(see Figure 4-22).
Figure 4-22: Conveyor interface button
Figure 4-23: Conveyor interface window
► Select LP einfahren (Loading PCB).
► Click OK.
