ACT - Accuracy Check Tool / User Manual 06/2015 Edition
62

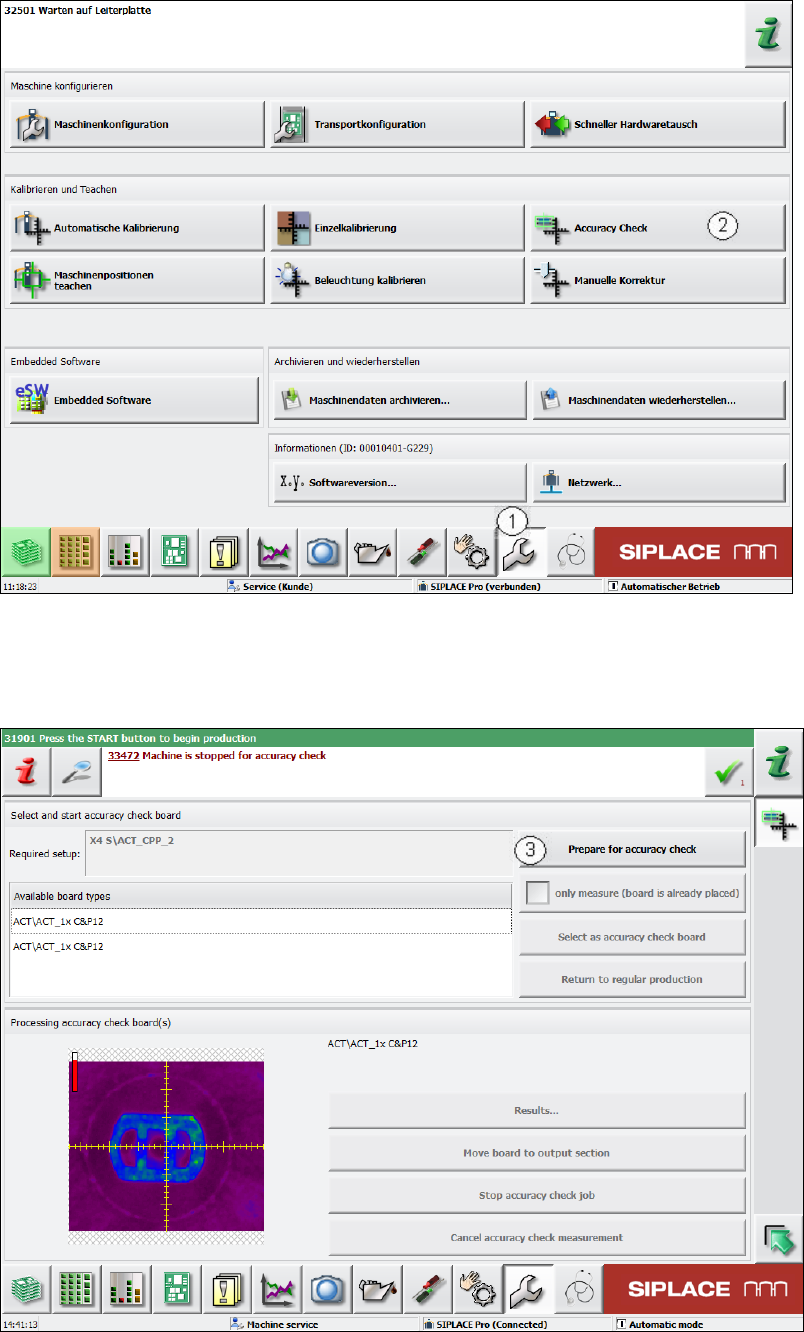

Figure 4-40: Service Tools view
► Change to the Service view. (1).
► Click the Accuracy Check button (2).
Figure 4-41: Preparing for the accuracy check
► Now click the Prepare for accuracy check button (3).
ACT - Accuracy Check Tool / User Manual 06/2015 Edition
63
The machine automatically switches to standalone mode.

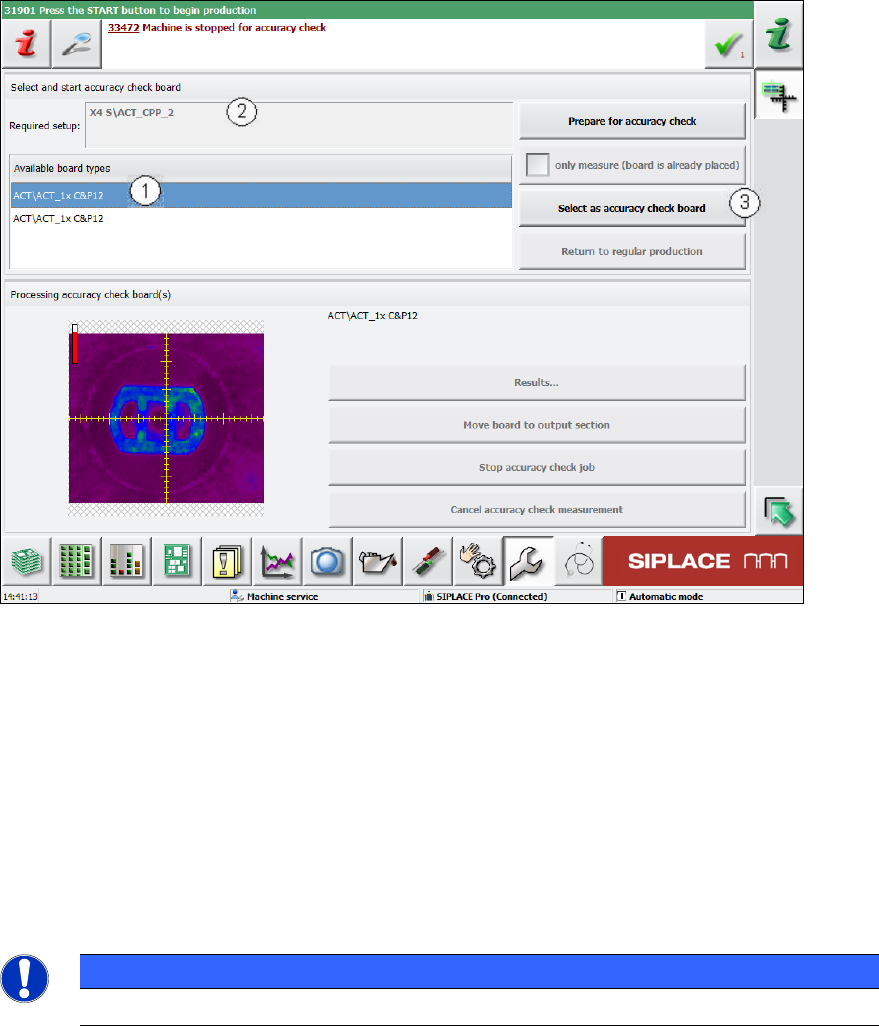

Figure 4-42: Selecting board
► Select the required board (1). The board most recently specified is always at the top of the list.
When you have selected a board, the corresponding setup appears at this point (2).
► Confirm the selection of the board and click the Select as accuracy-check-board button (3).
► Press the Start key before you insert the board (otherwise it will not be placed but immediately
be moved to the output section).
► Push the board into the input section in order to start placement (see also section 4.2.2 and
section 4.2.4.2).
The board gets placed and then the measurement starts automatically.
NOTICE
The machine should not be operated during the measurement!
A dialog box opens in which the current measurement operation is displayed.
The fiducials which are currently being measured will be displayed.
ACT - Accuracy Check Tool / User Manual 06/2015 Edition
64

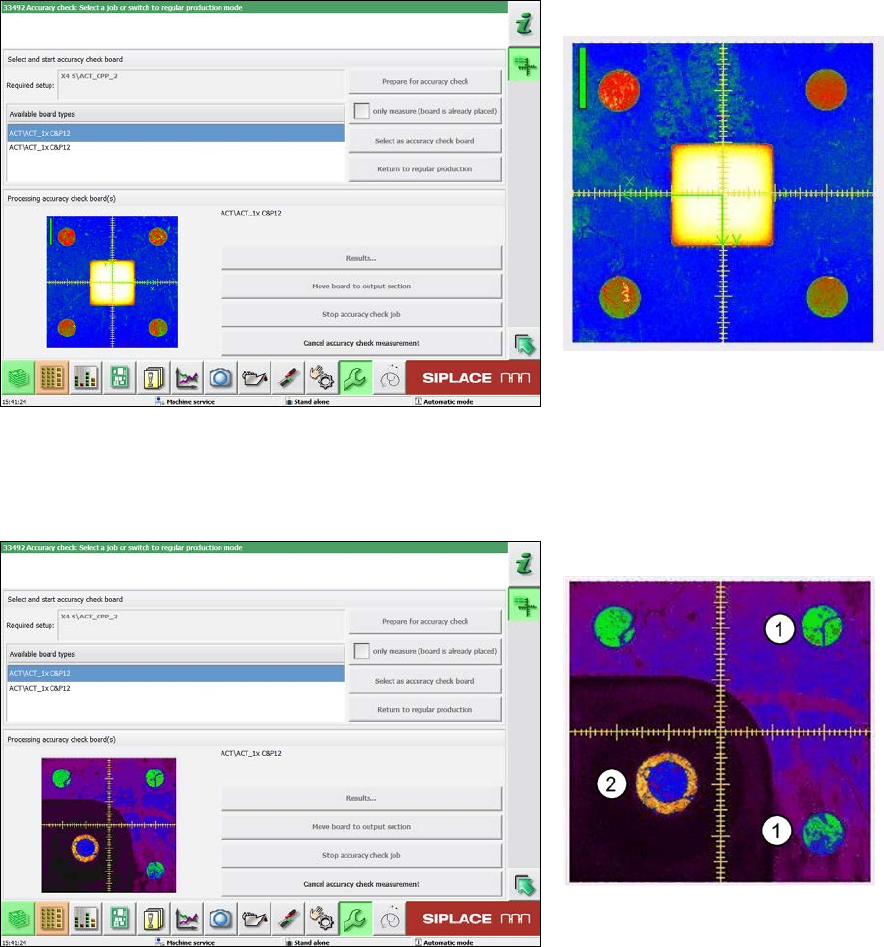

Example of measurement operation with the ceramic components Cerampads:
Figure 4-43: Example of measurement window with Cerampads
Example of measurement operation with glass components:
Figure 4-44: View of measurement window with glass components (pseudo color view)
Key:
(1) Fiducials on the ACT plate
(2) Fiducials on the glass component
