2 Scope of delivery
2.1 Software components
705.04 SP2 software
Standard package: 00140035-04 Software SIPLACE Station 705.04 SP2 Basic
– Software CD-ROM
(1)
– Software DVD SIPLACE Smart GUI
– License/product certificate
– Software Installation Manual V705.04 SP2 D+E (00196771-04)
– Packaging
Languages: 00140036-04 SIPLACE foreign language software SC 705.04 SP2
– CD-ROM with software (language pack)
– License/product certificate
– Software Version Description for foreign languages V705.04 SP2 D+E (00196772-04)
– Packaging
(1)
The standard applications are contained on the CD:
– Embedded software for conveyor
– Embedded software for axes
– Embedded software for component tables
– Embedded software for tape cutter
– Embedded software for heads
– Embedded software for Vision modules
– Embedded software for I/O modules
– Embedded software for X-feeders
– Embedded software for digital pressure regulation valve
– Embedded software for MTC2
– Embedded software for WPC5/WPC6
2.2 Hardware components
– Machine computer
– Vision computer (optional)
– Coplan computer (optional)
6
Station Software 705.04 SP2 / Version Description Ausgabe 06/2012 Edition
2.3 Languages
User interface SIPLACE Station and SIPLACE Vision:
The standard package contains German and English versions.
Other languages contained in the languages package are optional and available under the item
number 00140036-04.
The following table indicates which languages are available for the station software and SIPLACE
Vision:
Language Station software /
SIPLACE Vision
French x
Italian x
Spanish (Mexico) x
Portuguese (Brazil) x
Czech
*)
x
Polish
*)
x
Hungarian x
Romanian
*)
x
Chinese (simplified) x
Korean x
Japanese x
Table 2-1: Languages
*)
GUI only (online help English)
7
Station Software 705.04 SP2 / Version Description Ausgabe 06/2012 Edition
3 Important information when upgrading from
station software versions as of 60x
The 70x station software version was completely reengineered with an increased placement
performance and improved usability. Hence, there is no previous version.
During the revision of the software it is aimed that the operator can upgrade to the new station
software without any problems. To make easier the introduction to the new station software
version, the most important changes are summarized in the following sections.
3.1 New concept for operating – new user interface
The concept for operating the 70x station software version was completely revised and redesigned.
The GUI of the new software version is operated task-orientated while in previous software
versions the GUI was based on functions by using menus.
The icons, buttons and views are highlighted in different colors, e.g. if an operator action is needed.
The touch screen acts as the standard input tool for operating the station software. All functions
can be accessed via the touch screen. The keyboard and the track ball are still available.

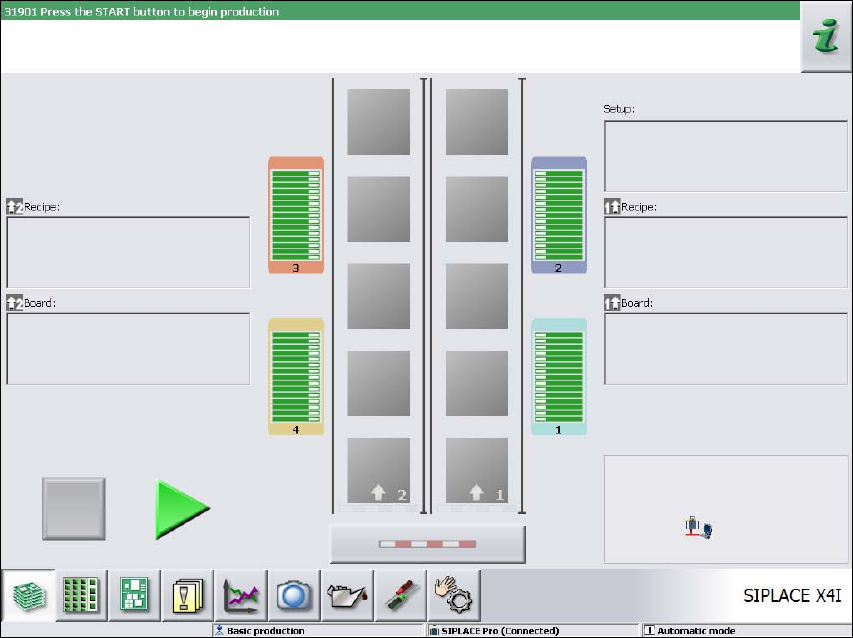

The main view "Production" is displayed in the following figure:
Figure 3-1: Main view
