16 Tg0780-PM-SO0312-002
9. Device Offset
9. Device Offset
It is necessary to change data in the following cases.
• Positioning width is too narrow.
• Positioning width is too wide.
• The offset data is cleared for an unaccountable reason.

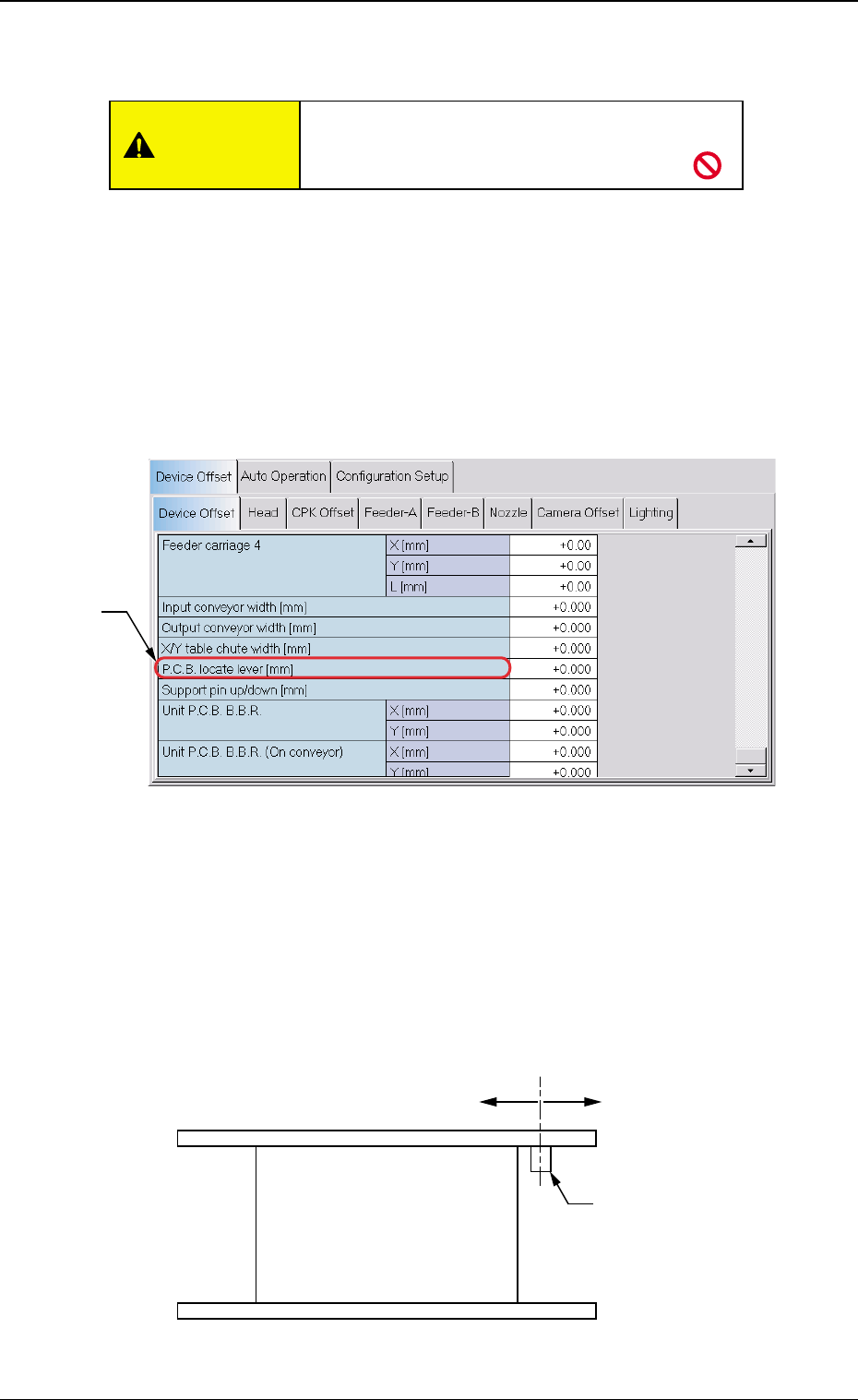

When the [Device Offset] tab is pressed at the ''Device Offset'' tab
sheet, the following tab sheet appears on the screen.
P.C.B. locate lever [mm]
This is the offset data used to correct the positional deviation of the
P.C.B. locate lever (P.C.B. locate pin) in the P.C.B. transfer direction.
A plus value shifts the positioning of P.C.B. locate lever (P.C.B.
locate pin) to the maximum P.C.B. size direction.
Data is factory-set at shipment. Do not change
data unless necessary.
CAUTION
Fig. 9
Fig. 8
*1
P.C.B.
(-)
(+)
P.C.B. Locate Leve
r
Tg0780-PM-SO
RH BLOCK
(Control Box Section)
RG BLOCK
(Relay Sequence Panel)
RA BLOCK
(Primary Power
Supply Section)
Control Box for
Oil Cooler
UA53(P.C.B.)
(I/F)
UA54(P.C.B.)(F12)
UA54(P.C.B.)(F34)
RH BLOCK
(Power Unit in
Control Section)
RL BLOCK
(Power Unit)
Vacuum Pump Motor
Service Power Outlet
Dust Box
RC BLOCK
(Panel 1)
RF BLOCK
(Panel 4)
RF BLOCK
(Panel 3)
10. Material
10.1 Parts Location

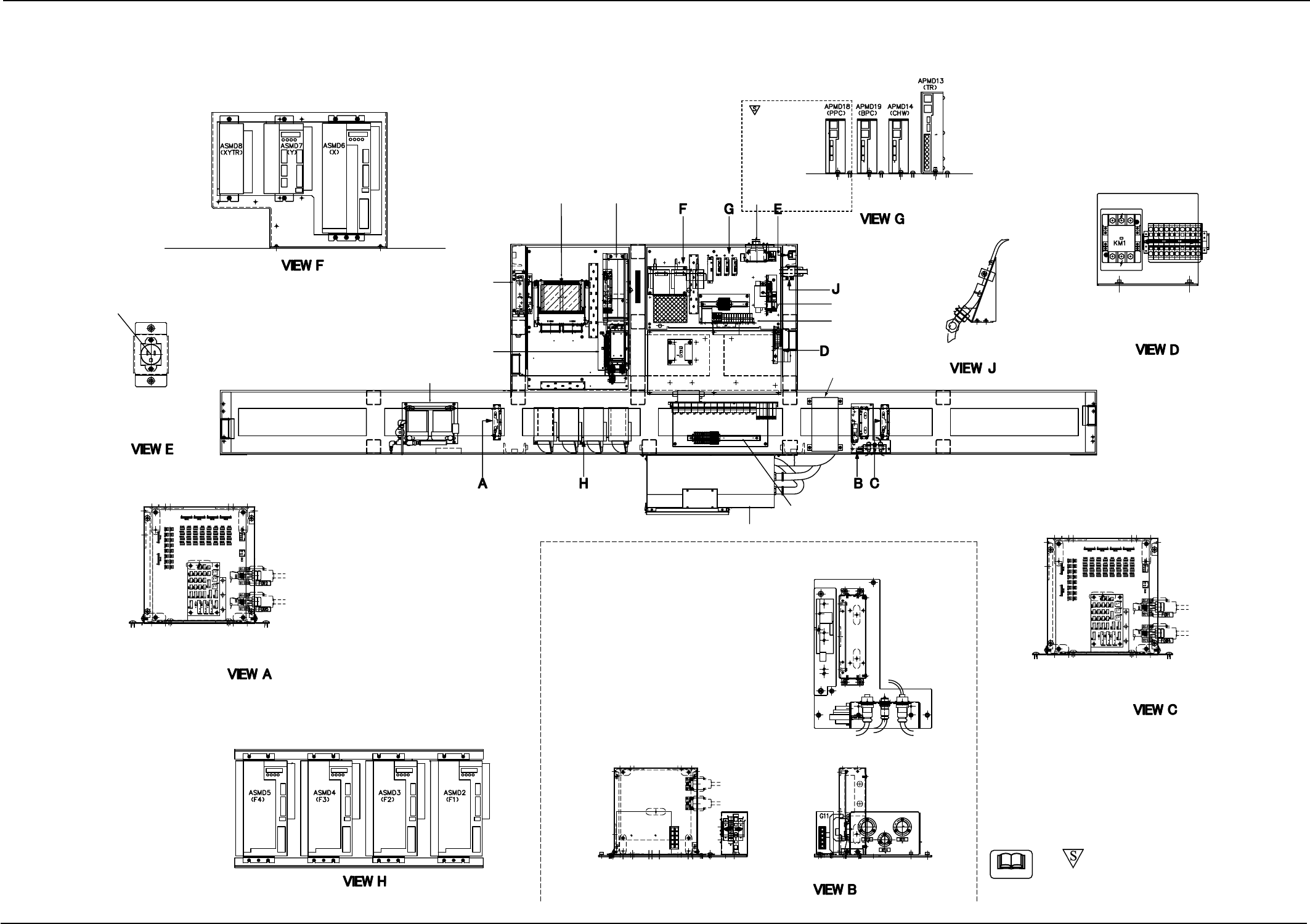

Layout of Main Machine Section 1 for TCM-X100
10. Material
0312-002-(M765YRL--A0001) 17
The -marked area is specially specified.
Note
Tg0780-PM-SO
0312-002-(M809YRL--A0001) 18
10. Material

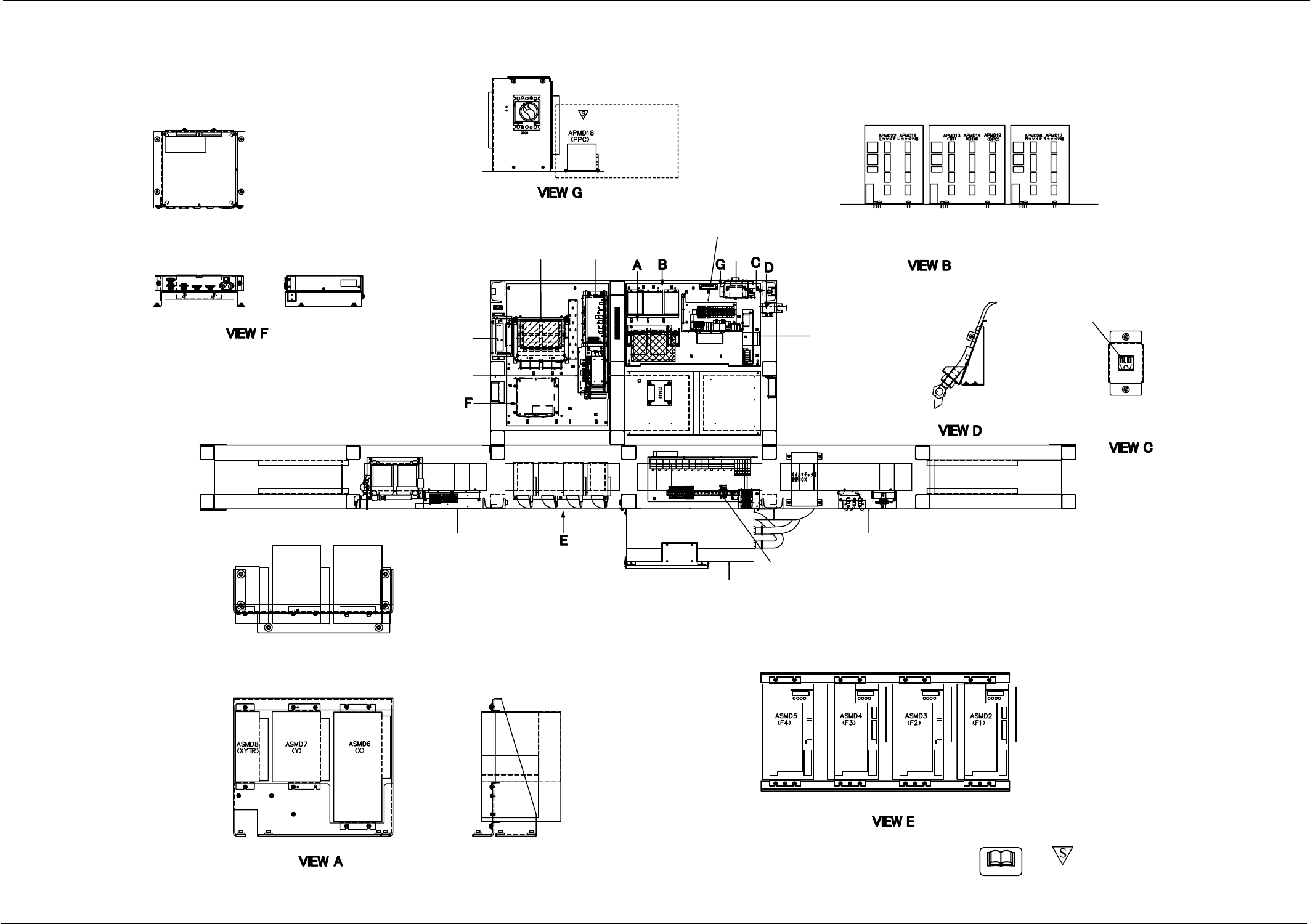

Layout of Main Machine Section 1 for TCM-X110
Service Power Outlet
RH BLOCK
(Power Unit in
Control Section)
RL BLOCK
(Power Unit)
Vacuum Pump Motor
RH BLOCK
(Control Box Section)
RG BLOCK
(Relay Sequence Panel)
RA BLOCK
(Primary Power Supply Section)
RD BLOCK
(Panel 2)
RE BLOCK
(Panel 3)
Dust Box
RL BLOCK
(Panel F12, 34)
RC BLOCK
(Panel 1)
RL BLOCK
(Panel I/F)
The -marked area is specially specified.
Note
