1. Scope
When a program change is made, the P.C.B. locate pin / P.C.B.
locate lever can be adjusted automatically, shortening the machine
setup time.
2. Specifications
Table 1
1. Scope
Description
• The P.C.B. locate pin / P.C.B. locate lever can be adjusted
automatically.
The overall setup operation interlocked with the program
change operation is implemented.
• Increments of 0.1 mm (Resolution: 0.003125 mm/pulse)
3. Precautionary Measures for Setup Operation
• When each device is zeroed to its origin, the P.C.B. locate lever width
becomes the maximum P.C.B. size (338.5 mm). Check that the P.C.B.
locate lever does not touch anything when it is widened to the maxi-
mum extent.
• Check that there is no P.C.B. on the X/Y table.
• Check that there is no P.C.B. support pin on the X/Y table.

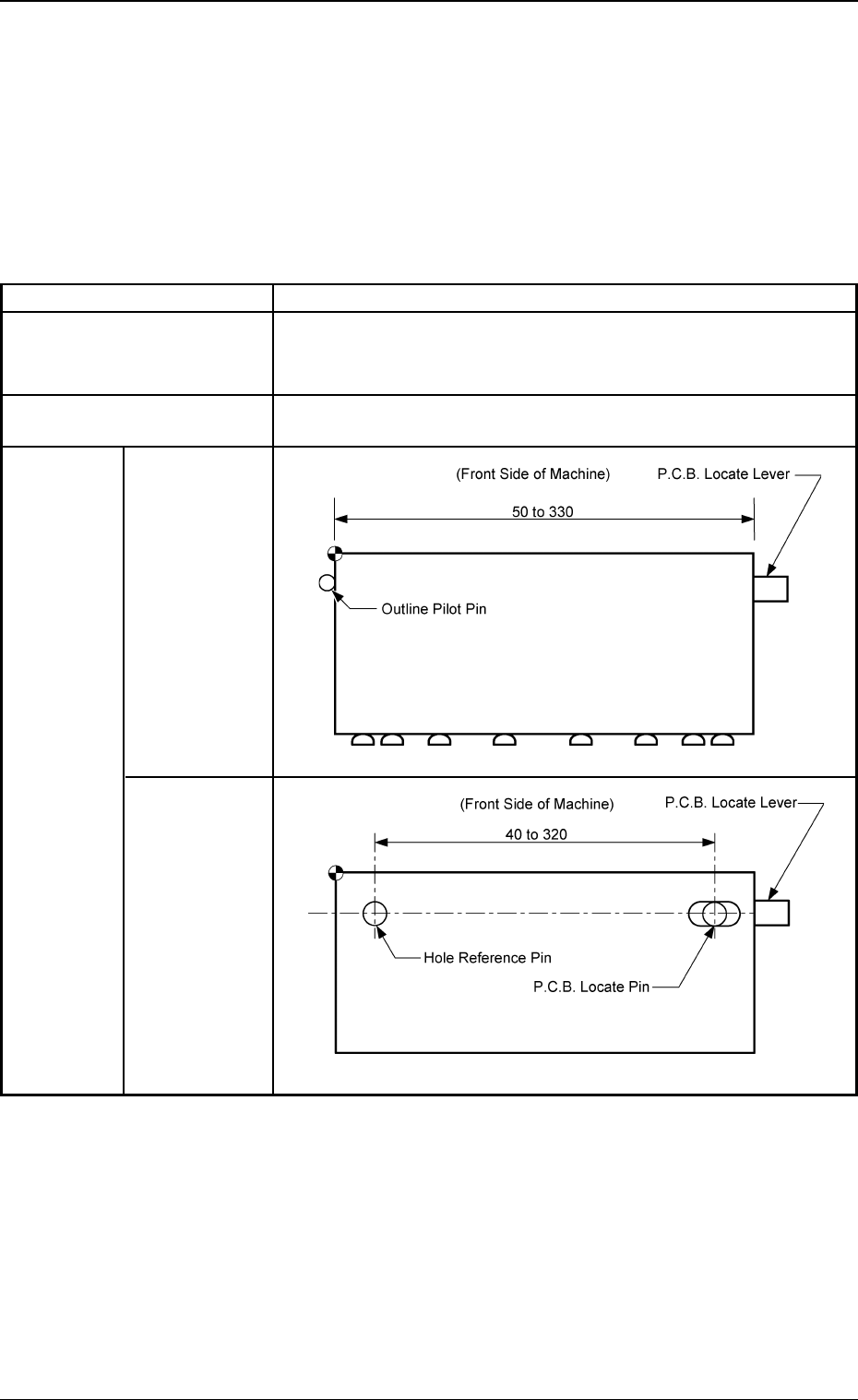

Reference
Point: ''Outline''
Reference
Point: ''Hole''
3. Operating
Range
Item
1. Function
2. Unit of P.C.B. Locate Pin
Movement
