7 Tg0780-PM-SO *1 0312-002 5. Setup Operation *1 Setup Data Set whether or not the setup data for each device is set. Select "Enable" or "Disable" for each device. When the setup operation is performe…

6 Tg0780-PM-SO

Parts for Positioning of "Hole Reference" and "Outline Reference"

Depending on the selected positioning method, use the following parts.

Table 2

0312-002

4. Items to be Checked before Setup Operation

Fig. 2-1 Hole Reference Pin

(Reference Side)

Fig. 2-2 Outline Pilot Pin

(Reference Side)

Fig. 2-3 P.C.B. Locate Pin and P.C.B. Locate Lever

Flanged Bolt with

Hexagon Socket

Head (M5L16)

Flanged Bolt with

Hexagon Socket

Head (M5L16)

{:Usable

××

×:Not Usable :Usable depending on the condition

• Use a flanged bolt with hexagon socket head (M5L16) to attach a

P.C.B. locate pin.

P.C.B. Locate Lever

P.C.B. Locate Pin

Flanged Bolt with Hexagon

Socket Head (M5L16)

Part Name

Fig. No.

Hole

Positioning Reference

Method Outline

Reference

Hole Reference

(Reference Side)

Fig. 2-1

{

××

Outline Pilot

(Reference Side)

Fig. 2-2

××

{

P.C.B. Locate

Fig. 2-3

{

××

P.C.B.

Locate Lever

Fig. 2-3

{

7 Tg0780-PM-SO

0312-002

5. Setup Operation

*1 Setup Data

Set whether or not the setup data for each device is set. Select

"Enable" or "Disable" for each device.

When the setup operation is performed for the P.C.B.

locate pin, be sure to enter a parameter in the " Width

[mm]" data box of the label "P.C.B. locate lever" in ac-

cordance with the selected positioning method "Hole" or

"Outline".

Unless a correct parameter is entered, the P.C.B. locate

pin cannot be positioned to have the correct width.

Reference Point: "Outline"

5. Setup Operation

5.1 Setting of Setup Parameters

When the [Setup Data] tab is pressed on the "Operation Data" tab

sheet, the following tab sheet appears.

Fig. 3

Fig. 4-1

Note

8 Tg0780-PM-SO

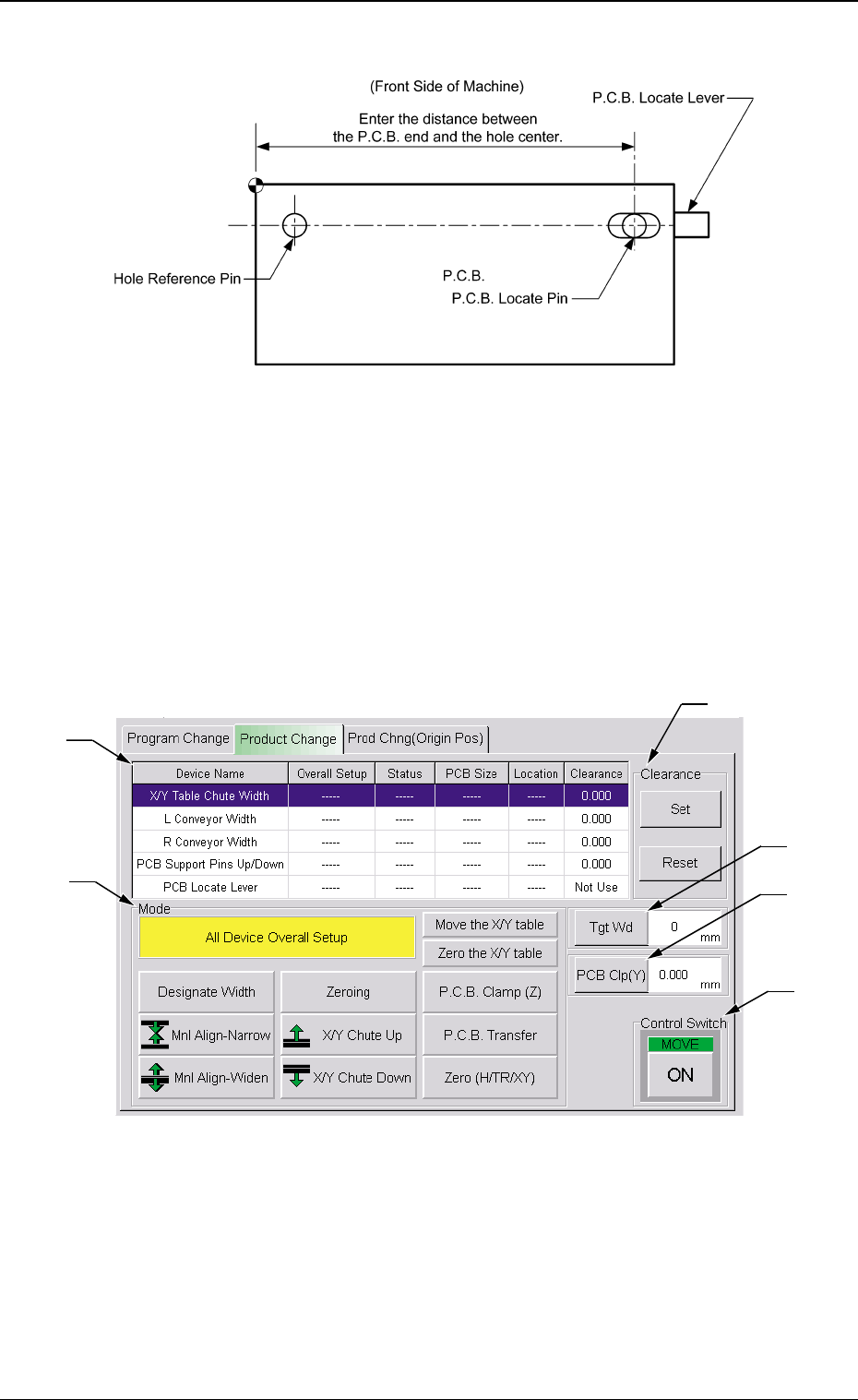

Reference Point: "Hole"

5.2 Overall Setup Operation after Selection of the

[Product Change] Tab

When the [Product Change] tab is pressed at the "PROGRAM

CHANGE" submenu window, the following tab sheet appears.

0312-002

5. Setup Operation

Fig. 4-3

Fig. 4-2
