4 Tg0780-PM-SO 0312-002 1. Scope When a program change is made, the P .C.B. locate pin / P .C.B. locate lever can be adjusted automatically , shortening the machine setup time. 2. Specifications T able 1 1. Scope Descrip…
Contents
Page
Before Use ................................................................................................... 1
Contents ....................................................................................................... 3
1. Scope ..................................................................................................... 4
2. Specifications ......................................................................................... 4
3. Precautionary Measures for Setup Operation ....................................... 4
4. Items to be Checked before Setup Operation ....................................... 5
5. Setup Operation ..................................................................................... 7
5.1 Setting of Setup Parameters ............................................................ 7
5.2 Overall Setup Operation after Selection of
the [Product Change] Tab .......................................................... 8
5.3 Overall Automatic Setup Function Interlocked with
Program Change ........................................................................ 11
6. Zeroing Operation ................................................................................. 12
7. "Origin/Signal Info." Tab ......................................................................... 14
8. Maintenance ........................................................................................... 15
8.1 Maintenance Spots ............................................................................ 15
8.2 Inspection ........................................................................................... 15
8.3 Lubrication.......................................................................................... 15
9. Device Offset ......................................................................................... 16
10. Material ................................................................................................ 17
10.1 Parts Location .................................................................................. 17
Layout of Main Machine Section 1 for TCM-X100 ........................... 17
Layout of Main Machine Section 1 for TCM-X110 ........................... 18
10.2 Layout of Sensors and Loads .......................................................... 19
X/Y Table Section ............................................................................ 19
10.3 Electrical Circuit Diagrams............................................................... 20
Integrated Block Connection Diagrams ........................................... 20
PPC-Axis Motor Circuit Diagrams.................................................... 21
10.4 Cord Connection Diagrams ............................................................. 22
X/Y Table Section ............................................................................ 22
C-S070-39 Connection Diagrams .................................................... 23
0312-002 3
Tg0780-PM-SO
4 Tg0780-PM-SO0312-002
1. Scope
When a program change is made, the P.C.B. locate pin / P.C.B.
locate lever can be adjusted automatically, shortening the machine
setup time.
2. Specifications
Table 1
1. Scope
Description
• The P.C.B. locate pin / P.C.B. locate lever can be adjusted
automatically.
The overall setup operation interlocked with the program
change operation is implemented.
• Increments of 0.1 mm (Resolution: 0.003125 mm/pulse)
3. Precautionary Measures for Setup Operation
• When each device is zeroed to its origin, the P.C.B. locate lever width
becomes the maximum P.C.B. size (338.5 mm). Check that the P.C.B.
locate lever does not touch anything when it is widened to the maxi-
mum extent.
• Check that there is no P.C.B. on the X/Y table.
• Check that there is no P.C.B. support pin on the X/Y table.
Reference
Point: ''Outline''
Reference
Point: ''Hole''
3. Operating
Range
Item
1. Function
2. Unit of P.C.B. Locate Pin
Movement
5 Tg0780-PM-SO
Reference Pin
P.C.B. Locate Pin
#

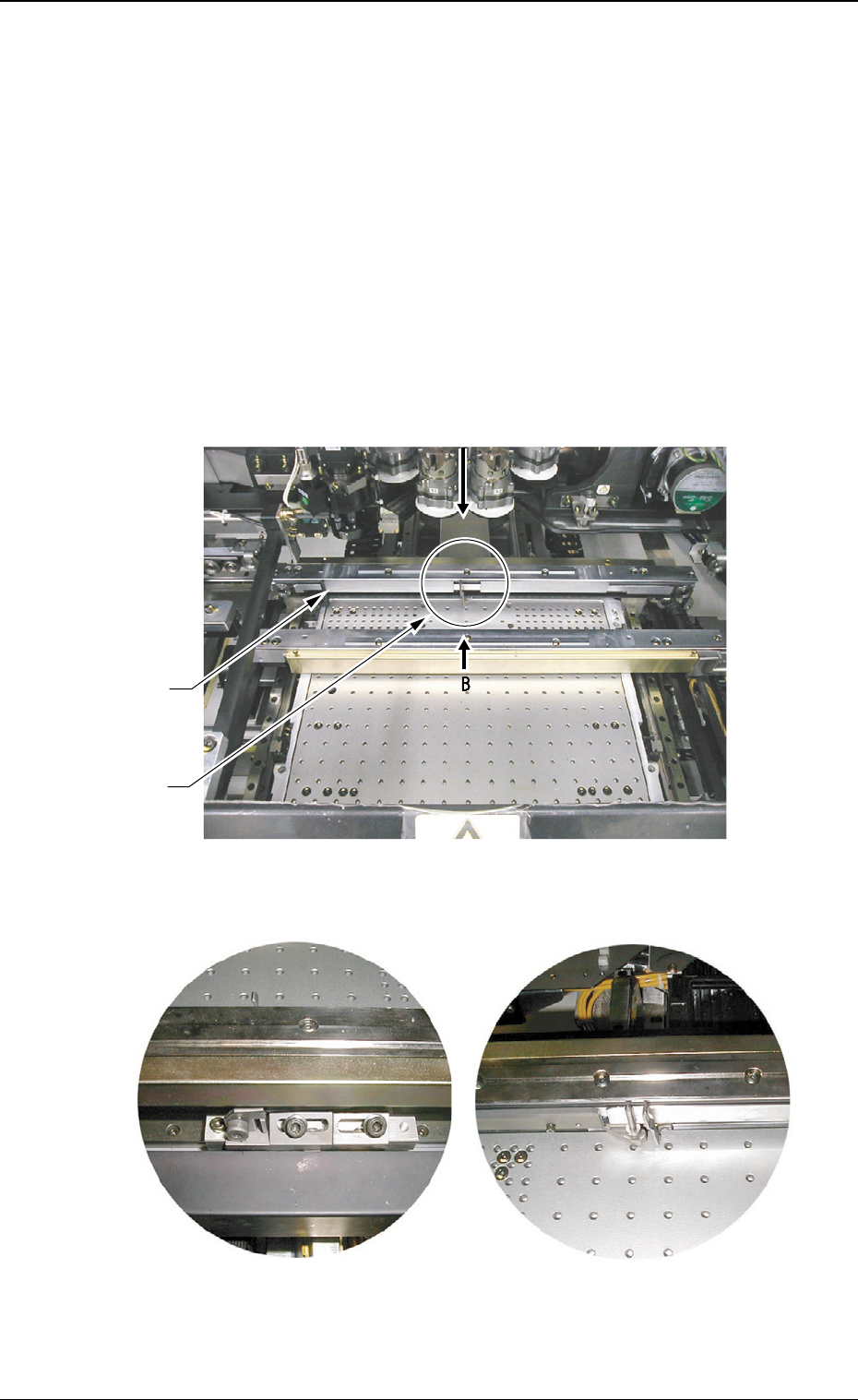

4. Items to be Checked before Setup Operation
• Before zeroing or set-up operation, check that there is no obstacle
(structure) on the backup base of the X/Y table.
• Especially when a support pin or a jig P.C.B. is located in the range of
approx. 20 mm away from the fixed chute, it hinders the setup opera-
tion, causing an error.
• When each device is zeroed to its origin, the P.C.B. locate pin and the
P.C.B. locate lever move toward the direction of the maximum P.C.B.
size.
0209-001
4. Items to be Checked before Setup Operation
Fig. 1-2 View A
Fig. 1-1
Fig. 1-3 View B
