Tg0780-PM-SO 0312-002-(M809YRL--A0001) 18 10. Material Layout of Main Machine Section 1 for TCM-X1 10 Service Power Outlet RH BLOCK (Power Unit in Control Section) RL BLOCK (Power Unit) V acuum Pump Motor RH BLOCK (Contr…

100%1 / 25
Tg0780-PM-SO
RH BLOCK
(Control Box Section)
RG BLOCK
(Relay Sequence Panel)
RA BLOCK
(Primary Power
Supply Section)
Control Box for
Oil Cooler
UA53(P.C.B.)
(I/F)
UA54(P.C.B.)(F12)
UA54(P.C.B.)(F34)
RH BLOCK
(Power Unit in
Control Section)
RL BLOCK
(Power Unit)
Vacuum Pump Motor
Service Power Outlet
Dust Box
RC BLOCK
(Panel 1)
RF BLOCK
(Panel 4)
RF BLOCK
(Panel 3)
10. Material
10.1 Parts Location
Layout of Main Machine Section 1 for TCM-X100
10. Material
0312-002-(M765YRL--A0001) 17
The -marked area is specially specified.
Note
Tg0780-PM-SO
0312-002-(M809YRL--A0001) 18
10. Material
Layout of Main Machine Section 1 for TCM-X110
Service Power Outlet
RH BLOCK
(Power Unit in
Control Section)
RL BLOCK
(Power Unit)
Vacuum Pump Motor
RH BLOCK
(Control Box Section)
RG BLOCK
(Relay Sequence Panel)
RA BLOCK
(Primary Power Supply Section)
RD BLOCK
(Panel 2)
RE BLOCK
(Panel 3)
Dust Box
RL BLOCK
(Panel F12, 34)
RC BLOCK
(Panel 1)
RL BLOCK
(Panel I/F)
The -marked area is specially specified.
Note
Tg0780-PM-SO
0209-001 B(M765JSC--0035) 19
10. Material

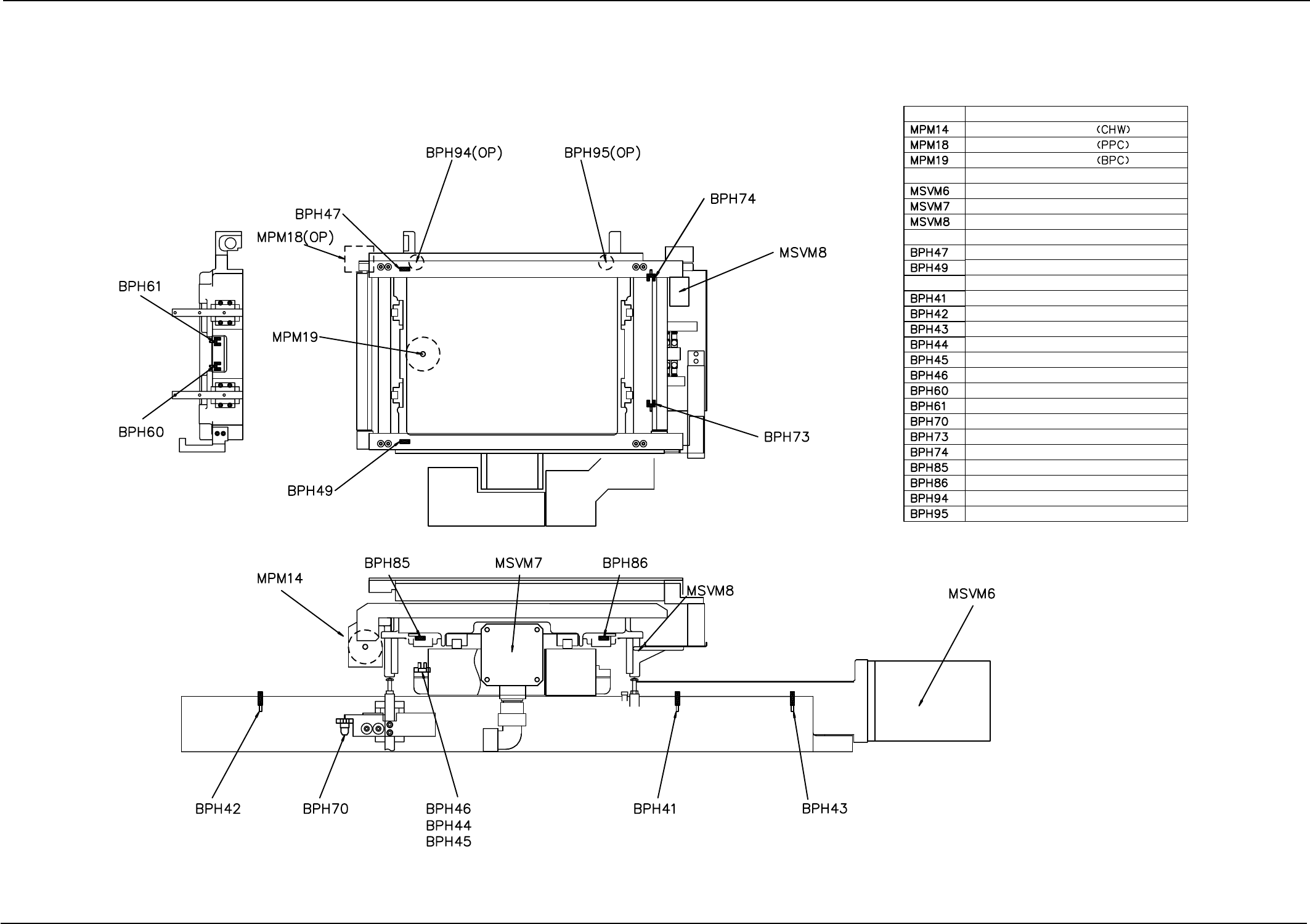

10.2 Layout of Sensors and Loads
X/Y Table Section
Symbols
Name
X/Y Table Chute Width
P.C.B. Locate Lever Automatic Setup
P.C.B. Support Pin
X Axis
Y Axis
Y Table Transfer (XYTR Axis)
X/Y Table P.C.B. Detection (Fixed)
X/Y Table P.C.B. Detection (Movable)
X Table Slide Origin
X Table Limit (+)
X Table Limit (-)
Y Table Slide Origin
Y Table Limit (+)
Y Table Limit (-)
X/Y Table Chute Upper Limit Detection
X/Y Table Chute Lower Limit Detection
Pusher Lower Limit Detection
X/Y Chute Width Limit (+)
X/Y Chute Width Limit (-)
Support Pin Limit (+)
Support Pin Limit (-)
P.C.B. Locate Pin Limit (+)
P.C.B. Locate Pin Limit (-)
(Front 1)
(Front 2)
(Rear)
