Tg0780-PM-SO 0312-002 A(M765WH--A0001) 21 10. Material PPC-Axis Motor Circuit Diagrams PPC Axis Input Machine Output Machine P .C.B. Locate Pin Limit(+) P .C.B. Locate Pin Limit(-) P .C.B. Locate Pin Pluse Motor The ( ) …
Tg0780-PM-SO
Loads and Sensors in Each Block
Power Supply for
Servomotor Driver Control
Main Power Supply for
Servomotor Driver
Supply Circuit
Supply Circuit
Input/Output
Machine I/F Board
P.E.C. Recog-
nition Camera
Camera for
High Magnification
Camera for
Low Magnification
0312-002-(M765WA--A0001) 20
10. Material

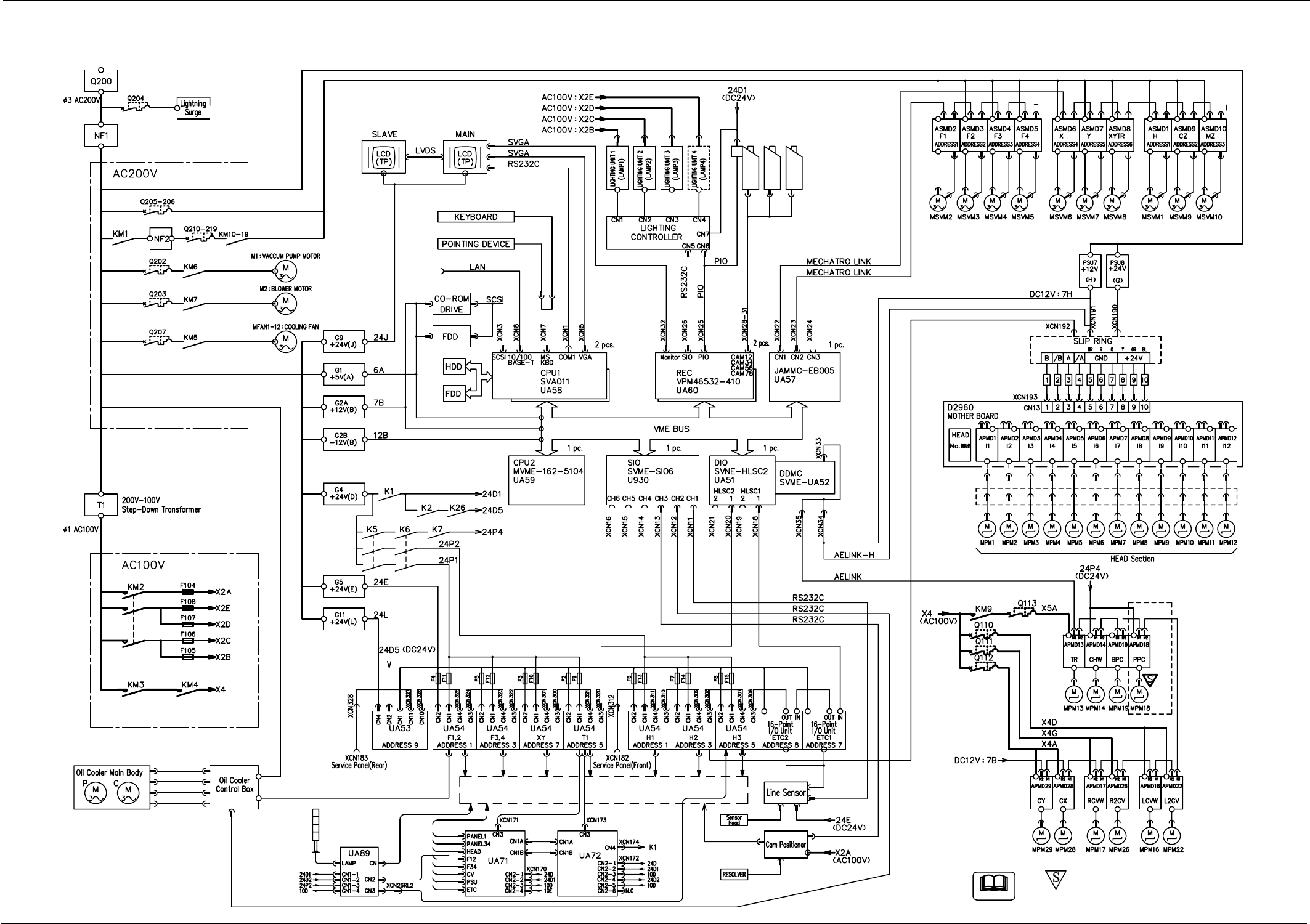

10.3 Electrical Circuit Diagrams
Integrated Block Connection Diagrams
The -marked area is specially specified.
Note
Tg0780-PM-SO
0312-002 A(M765WH--A0001) 21
10. Material

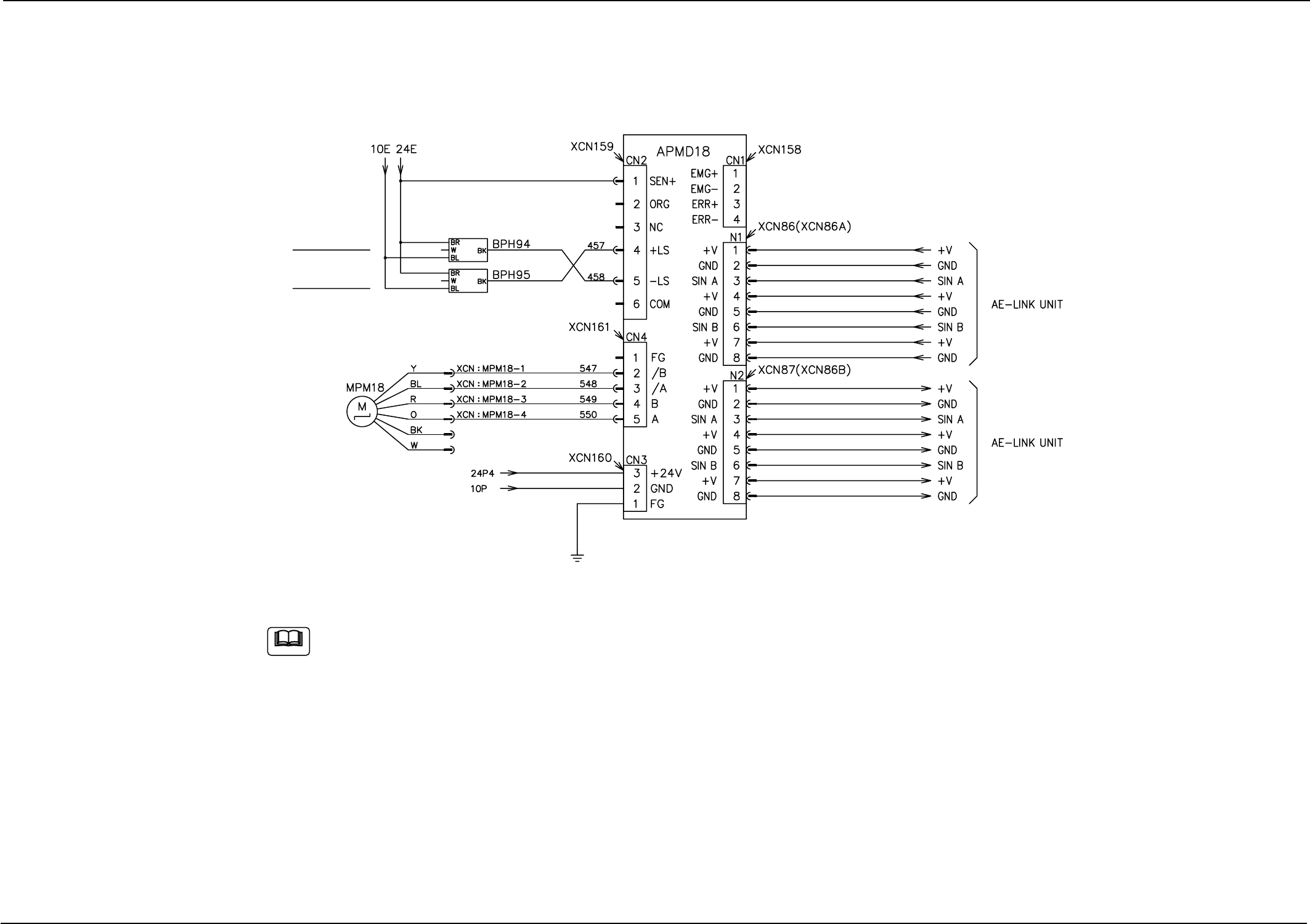

PPC-Axis Motor Circuit Diagrams
PPC Axis
Input Machine
Output Machine
P.C.B. Locate
Pin Limit(+)
P.C.B. Locate
Pin Limit(-)
P.C.B. Locate Pin
Pluse Motor
The ( ) indicate belong to TCM-X110.
Note
Tg0780-PM-SO
Y Axis SVM
BPC Axis PM
CHW Axis PM
PPC Axis PM
X Axis SVM
XYTR Axis SVM
0312-002-(M765JSB--A0002) 22
10. Material

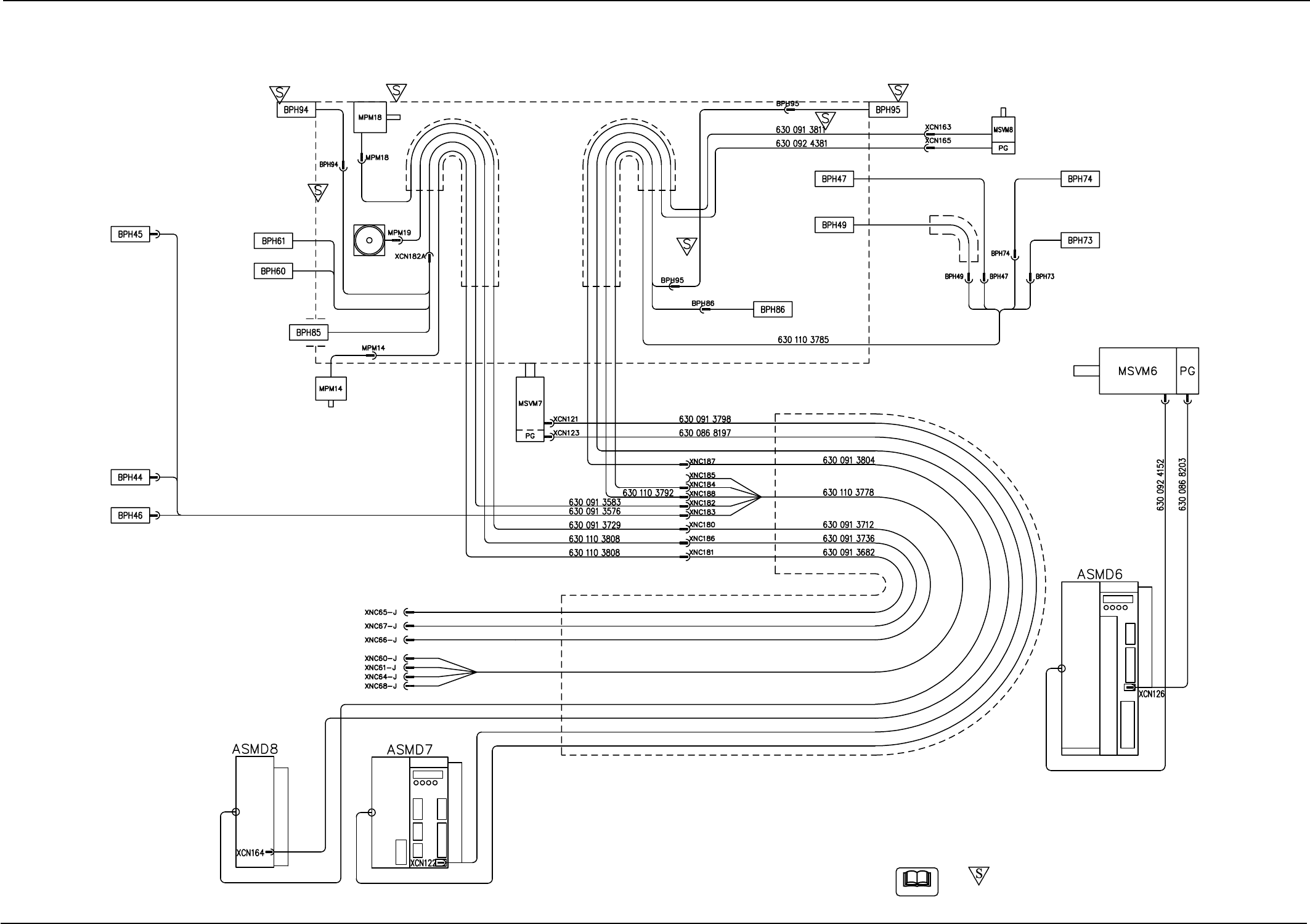

10.4 Cord Connection Diagrams
X/Y Table Section
The -marked area is specially specified.
Note
