Tg0756-PM-SO
5.1 Pattern Program
5.1.1 Types of P.C.B.'s and Required Data
The following shows typical examples (applications) of each data.
Refer to the examples for creation of a pattern program.
Marks in "Required Data"
: This means that you must refer to the description of the
pattern program data and create the data correctly.
: This means that you must refer to the description of the
pattern program data and set "Disable" for the pertinent
functions.
Bad Mark
Placement Coordinate Reference Point
Fig. 4 In case of a Repetitive Pattern (Unit P.C.B. B.B.R. Function Enabled)
Note
0206-001 8
5.1 Pattern Program
List of Required Data Table 2
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Base #1, #3, #4
Location Data Vibratory Stick #1, #2, #3
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
Tg0756-PM-SO0206-001 9
5.1 Pattern Program
(a) Create these parameters (data) for automatic adjustment
of the conveyor.
(b) Use these parameters (data) according to the situational
changes.
• Composition of Operation Data
Only specific data to this special specifications is here described.
Refer to the instruction manual for the main machine for other data.
Note
P.C.B. Data Tabel 3
Ref. No. Data Name
(1) Unit P.C.B. B.B.R.
(2) Overall P.C.B. B.B.R.
Placement Data (O) Tabel 4
Ref. No. Data Name
(3) X, Y for P-No. 1 Step
(4) C for P-No. 1 Step
(5) B-X, B-Y
• Composition of Placement Data
Only specific data to this special specifications is here described.
Refer to the instruction manual for the main machine for other data.
Tg0756-PM-SO0206-001 10
5.1 Pattern Program
(1) Unit P.C.B. B.B.R.
Mode
Set one of the following options to determine whether or not the unit
P.C.B. B.B.R. detection function should be used.
Disable : The unit P.C.B. B.B.R. detection function is
disabled.
Standard : The unit P.C.B. B.B.R. detection is made at
the standard position.
Optional : The unit P.C.B. B.B.R. detection is made at
an optional position.
(a) Standard Position
Refer to "5.1.3 Placement Data (3)" for details.
(b) Optional Position
Refer to "5.1.3 Placement Data (5)" for details.
DisableMode
Fig. 6
Note
5.1.2 Operation Data
(A01) P.C.B. Data

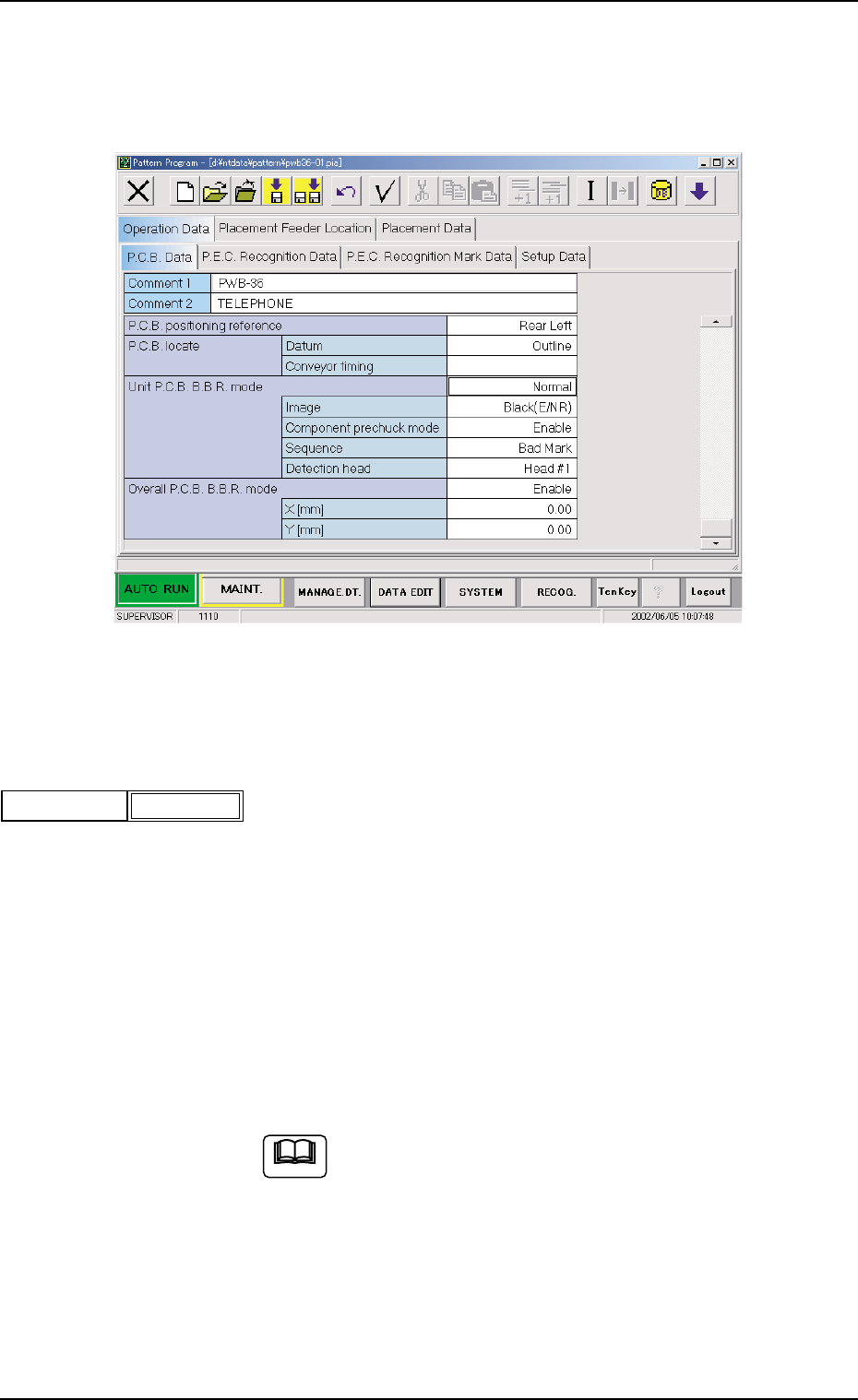

Fig. 5 Edit Window (Example)
