6. Material
6.1 Layout of Sensors and Loads

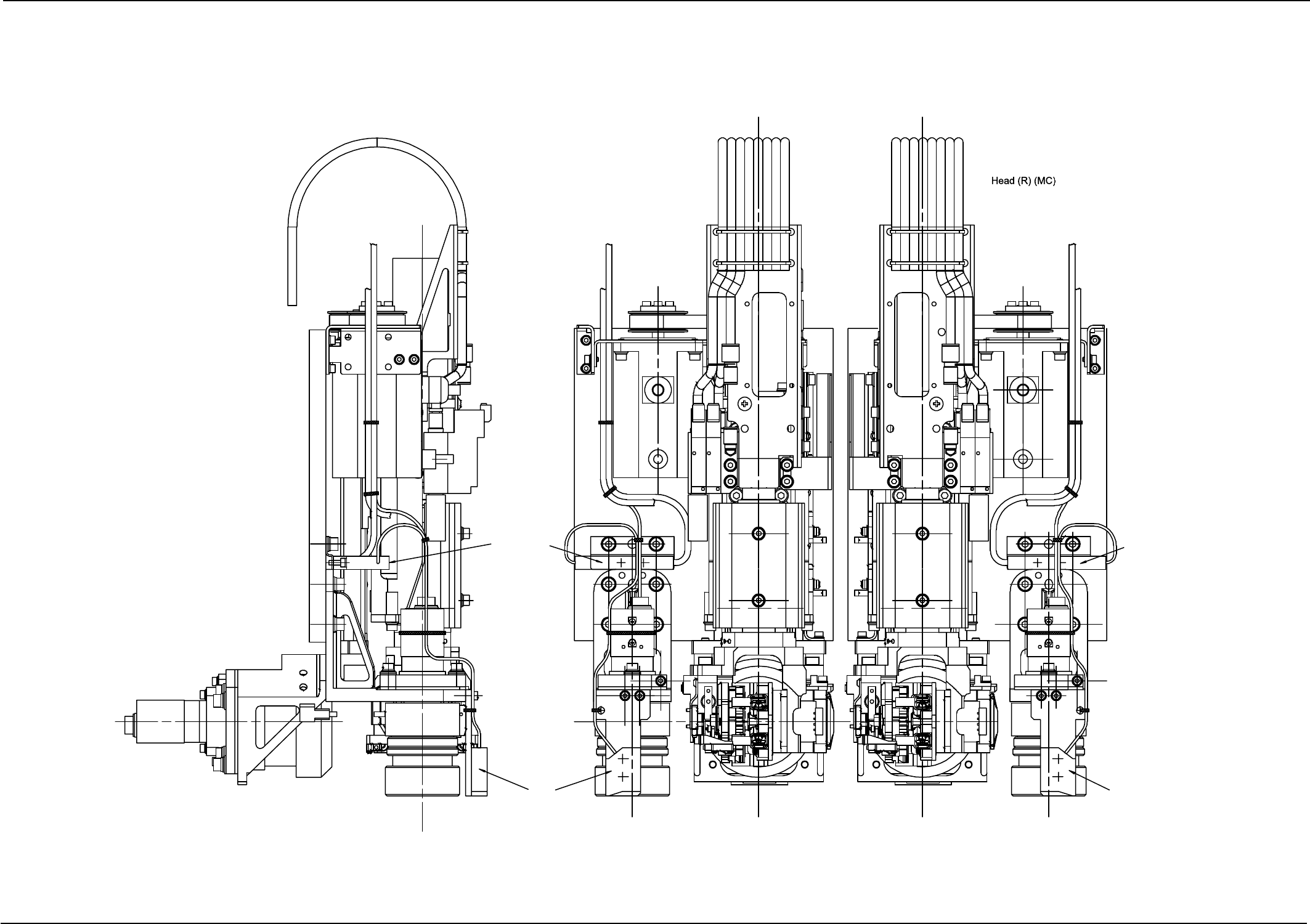

Layout of Bad Mark Sensor
6. Material
0206-001-(M750JC--A2103) 29
Bad Mark Sensor
Amplifier
(-N701)
Bad Mark Sensor
(-BPH701)
Bad Mark Sensor
(-BPH701)
Bad Mark Senso
r
Amplifier
(-N701)
Head (L) (MB)
to XCN43X2
Head (R) (MC)Head (R) (MC)
Head (R) (MC)
to XCN43X1
Tg0756-PM-SO
0206-001-(M750WM--A2101) 30
6. Material

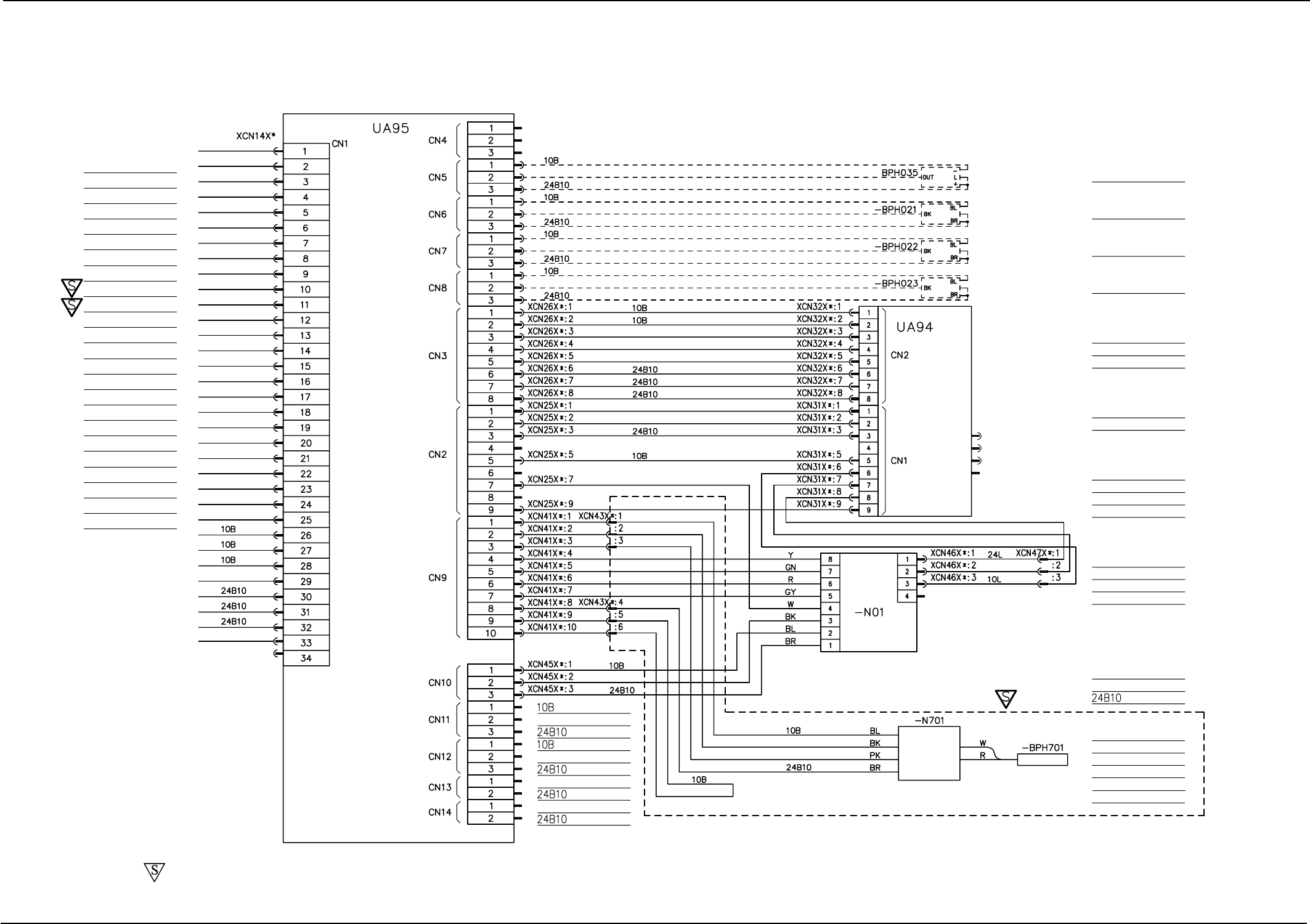

6.2 Electrical Circuit Diagram
Detailed View of Head Section
Note: The -marked area is specially specified.
Bad Mark Sensor
Reserved Output
Reserved Input
Reserved Input
Reserved Output
X-Axis Collision Detection
L-Axis Origin
L-Axis Limit (+)
L-Axis Pass Line Sensor
NC-Axis Motor Origin
NC-Axis Cam Origin
Excessively Inserted
Nozzle Detection
NC-Axis Loss of
Synchronism Detection
Bad Mark Sensor
(REMOTE)
Bad Mark Sensor
Reserved Output
Bad Mark Option Detection
Vacuum Sensor (Se10)
Reserved Input
Reserved Input
Vacuum Sensor
Input 1
Reserved Output
Vacuum Valve
Vacuum Breaker Valve
Reserved Output
Vacuum Sensor
Input 2
Vacuum Sensor (Se11)
Vacuum Sensor (Se12)
Vacuum Sensor (AS)
Sensor Connector
XCN42X*
Power Supply/
Output Connector
Vacuum Sensor
Controller
Bad Mark
Sensor
Amplifier
L-Axis Pass Line Sensor
X-Axis Collision Detection
L-Axis Origin
L-Axis Limit (+)
NC-Axis Cam Origin
Excessively Inserted Nozzle Detection
NC-Axis Motor Origin
Vacuum Valve
Vacuum Breaker Valve
Vacuum Sensor (Se10)
NC-Axis Loss of Synchronism Detection
10B (
Vacuum Sensor)
Vacuum Sensor Input 1
Vacuum Sensor (Se11)
Vacuum Sensor (Se12)
Vacuum Sensor (AS)
Vacuum Sensor Input 2(Shift)
Vacuum Sensor Power Supply (+24 V)
Vacuum Sensor (GND)
24B10 (Bad Mark)
Bad Mark Sensor (REMOTE)
Bad Mark Sensor
10B (Bad Mark)
10B
Bad Mark Option Detection
