Tg0756-PM-SO0206-001 12
5.1 Pattern Program
(2) Overall P.C.B. B.B.R.
Mode
Select one of the following options for the overall P.C.B. B.B.R.
function.
Disable : The overall P.C.B. B.B.R. detection function is not
used.
Enable : The overall P.C.B. B.B.R. detection function is used.
X [mm], Y [mm]
When "Enable" is selected, the coordinates (X and Y) of the bad
mark should be set for the overall P.C.B. B.B.R. detection function.
Fig. 12
X [mm]
Y [mm]
000.00 [mm]
000.00 [mm]
DisableMode
Fig. 11
Tg0756-PM-SO0206-001 13
5.1 Pattern Program
Overall P.C.B. B.B.R. Detection Function
When there are a few unit P.C.B.'s with a bad mark and most of the
unit P.C.B.'s are of good quality, then use the overall P.C.B. B.B.R.
function.
Before a bad mark detection for each unit P.C.B., perform overall
P.C.B. B.B.R. detection. If any bad mark is not detected in overall
P.C.B. B.B.R. detection, then all the unit P.C.B.'s are regarded as
good P.C.B.'s and the unit P.C.B. B.B.R. detection is not performed.
Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100R
Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100F
Note
Fig. 13
When this function is set to "Enable", always put a bad mark of
overall P.C.B. B.B.R. for a bad mark to be put on the unit P.C.B.
Otherwise, all the unit P.C.B.'s are regarded as good P.C.B.'s.
Note
Tg0756-PM-SO0206-001 14
5.1 Pattern Program
5.1.3 Placement Data

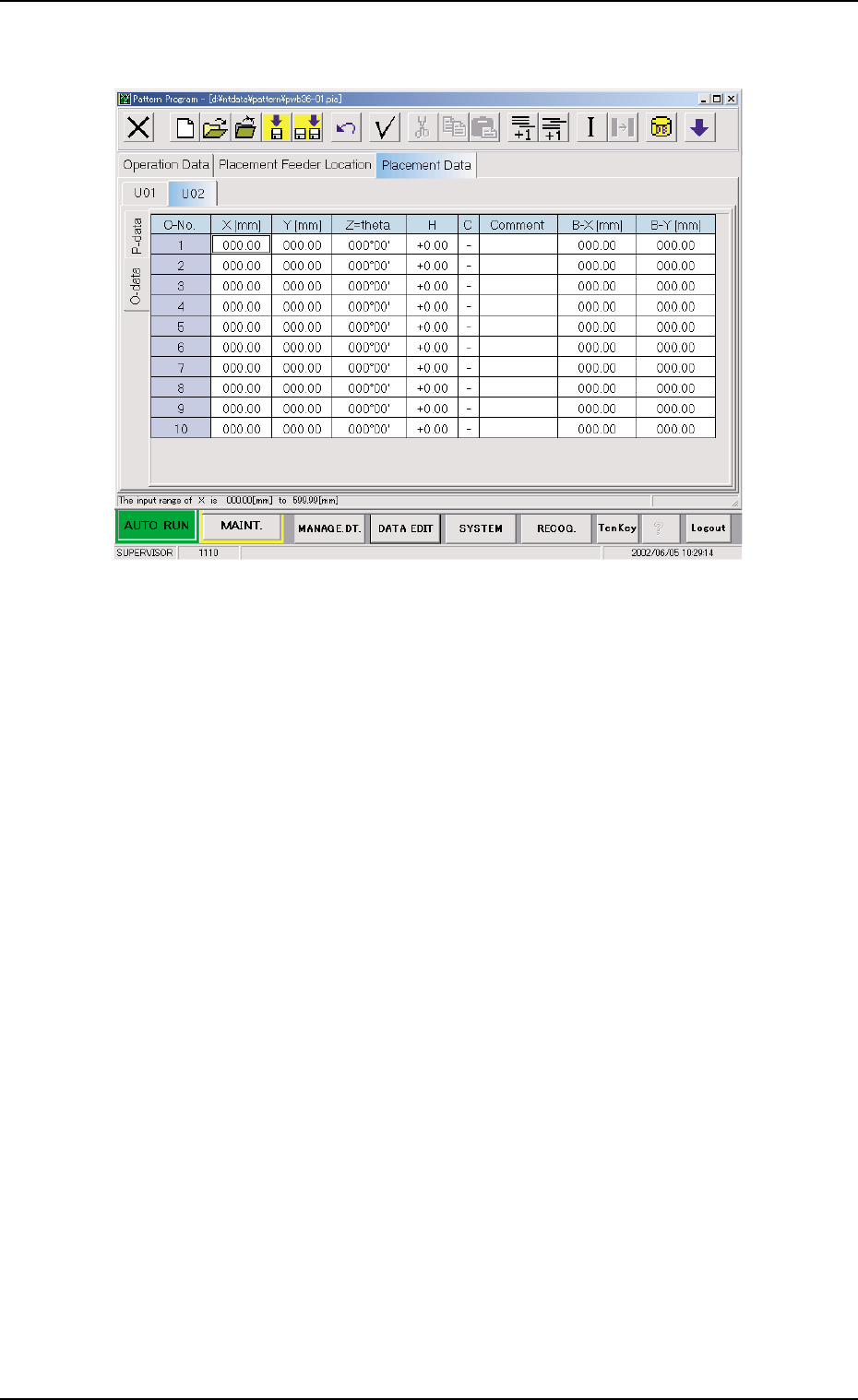

Fig. 14 Edit Window (Example)
