Tg0756-PM-SO0206-001 11
5.1 Pattern Program
Set the bad mark image.
Black (E/NR) : A black mark (E/NR) is used.
White (E/R) : A white mark (E/R) is used.
Component prechuck (Not Available)
Set whether or not the component is prechucked.
Disable : Components are not picked up until the unit P.C.B.
B.B.R. detection is completed.
Enable : Components are picked up before the unit P.C.B.
B.B.R. detection is completed.
Sequence
Set one of the following options when both P.E.C. recognition and
unit P.C.B. B.B.R. detection functions are used together.
Bad Mark : The unit P.C.B. B.B.R. detection function is acti-
vated before the P.E.C. recognition function. No
recognition is implemented on the unit P.C.B.
where a bad mark is put.
Recognition : The P.E.C. recognition function is activated before
the unit P.C.B. B.B.R. detection function. Positional
correction is made according to the result of the
P.E.C. recognition during movement to the bad
mark position.
Detection head
From the following heads, select the head which detects a bad
mark.
Head #1 Head #2
Black (E/R)
Fig. 7
EnableComponent prechuck
Fig. 8
Bad Mark
Sequence
Fig. 9
Head #1Detection head
Fig. 10
Tg0756-PM-SO0206-001 12
5.1 Pattern Program
(2) Overall P.C.B. B.B.R.
Mode
Select one of the following options for the overall P.C.B. B.B.R.
function.
Disable : The overall P.C.B. B.B.R. detection function is not
used.
Enable : The overall P.C.B. B.B.R. detection function is used.
X [mm], Y [mm]
When "Enable" is selected, the coordinates (X and Y) of the bad
mark should be set for the overall P.C.B. B.B.R. detection function.
Fig. 12
X [mm]
Y [mm]
000.00 [mm]
000.00 [mm]
DisableMode
Fig. 11
Tg0756-PM-SO0206-001 13
5.1 Pattern Program
Overall P.C.B. B.B.R. Detection Function
When there are a few unit P.C.B.'s with a bad mark and most of the
unit P.C.B.'s are of good quality, then use the overall P.C.B. B.B.R.
function.
Before a bad mark detection for each unit P.C.B., perform overall
P.C.B. B.B.R. detection. If any bad mark is not detected in overall
P.C.B. B.B.R. detection, then all the unit P.C.B.'s are regarded as
good P.C.B.'s and the unit P.C.B. B.B.R. detection is not performed.

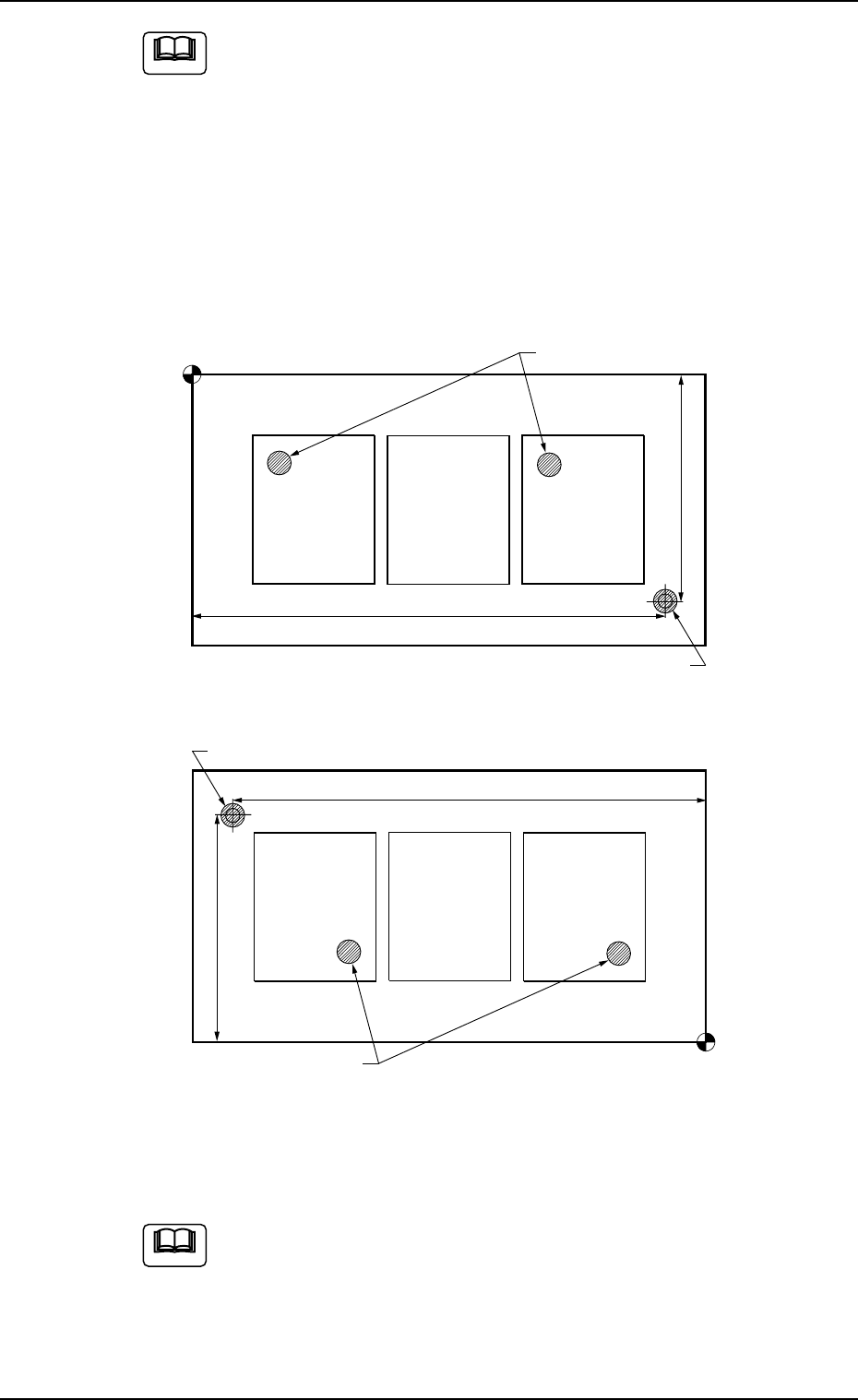

Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100R
Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100F
Note
Fig. 13
When this function is set to "Enable", always put a bad mark of
overall P.C.B. B.B.R. for a bad mark to be put on the unit P.C.B.
Otherwise, all the unit P.C.B.'s are regarded as good P.C.B.'s.
Note
