5.1 Pattern Program
Overall P.C.B. B.B.R. Detection Function
When there are a few unit P.C.B.'s with a bad mark and most of the
unit P.C.B.'s are of good quality, then use the overall P.C.B. B.B.R.
function.
Before a bad mark detection for each unit P.C.B., perform overall
P.C.B. B.B.R. detection. If any bad mark is not detected in overall
P.C.B. B.B.R. detection, then all the unit P.C.B.'s are regarded as
good P.C.B.'s and the unit P.C.B. B.B.R. detection is not performed.
Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100R
Placement Coordinate Reference (N0)
Bad Mark for Overall P.C.B. B.B.R. Function
Bad Marks
Y (Vertical)
X (Horizontal)
TIM-X100F
Note
Fig. 13
When this function is set to "Enable", always put a bad mark of
overall P.C.B. B.B.R. for a bad mark to be put on the unit P.C.B.
Otherwise, all the unit P.C.B.'s are regarded as good P.C.B.'s.
Note
Tg0756-PM-SO0206-001 14
5.1 Pattern Program
5.1.3 Placement Data

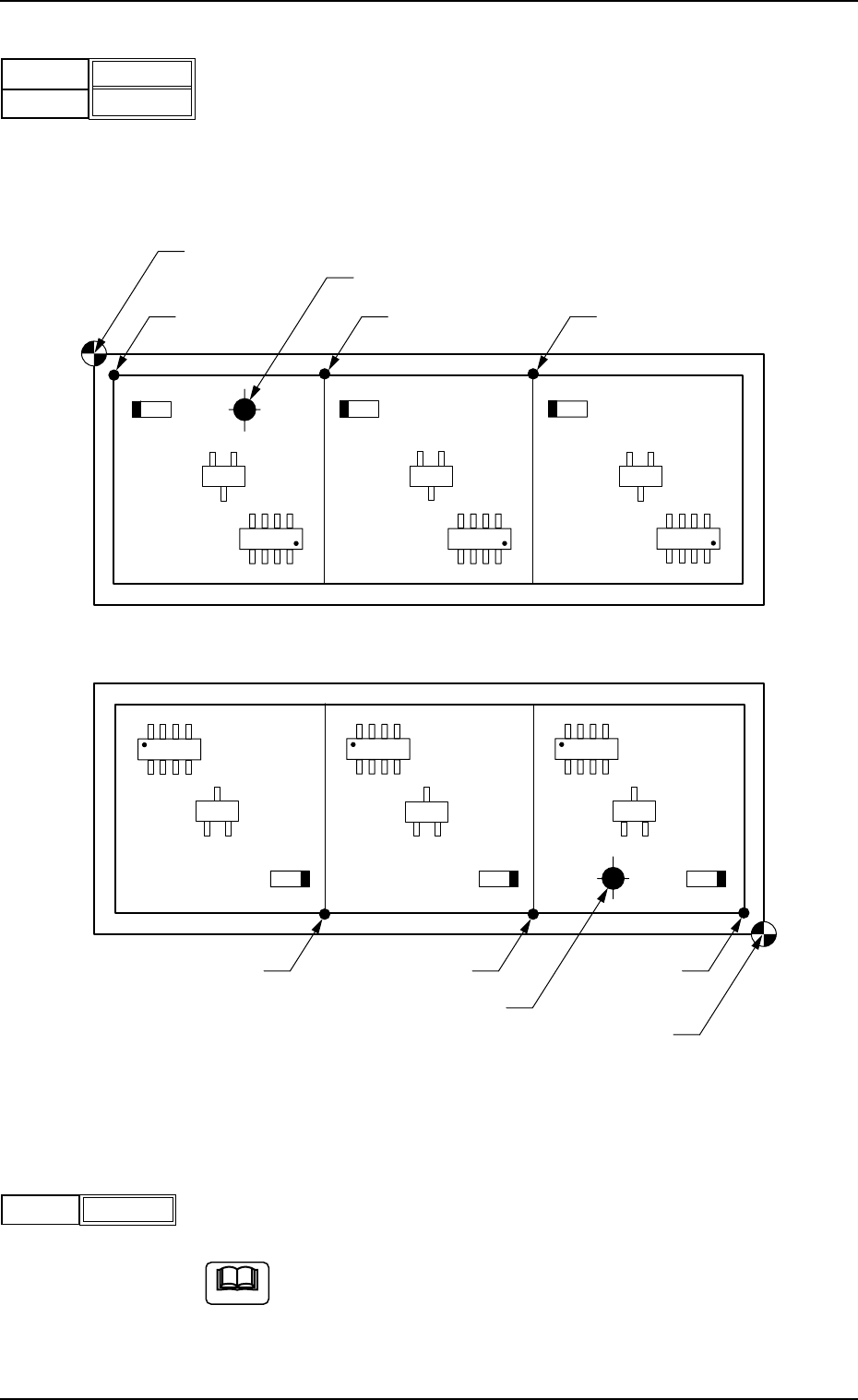

Fig. 14 Edit Window (Example)
Tg0756-PM-SO
Location of Bad Mark (BX
1
, BY
1
)
Placement Coordinate Reference Point
(OX
1
, OY
1
)(OX
2
, OY
2
)Pattern Origin (OX
3
, OY
3
)
Location of Bad Mark (BX
1
, BY
1
)
(OX
1
, OY
1
) (OX
2
, OY
2
) Pattern Origin (OX
3
, OY
3
)
Placement Coordinate Reference Point
(3) X, Y for P-No. 1 Step
Set the coordinates (BX
1, BY1) for the bad mark position.
Unit: mm
Fig. 15
X [mm]
Y [mm]
010.00
010.00
TIM-X100R
Fig. 16
TIM-X100F
(4) C for P-No. 1 Step
Set the control command to "B".
Do not set a B command for other than P-No. 1.
Fig. 17
CB
0206-001 15
5.1 Pattern Program
Note
