(9) Indicate the step to be checked using the vertical scroll bar on
the step data display section and select the step.
When the [Desig Step] button *6 is pressed on the lower
left of the step display, the step can be entered directly
using the ten-key.
(10) Select the [Move to Teach Pt] button *4 and then the "Move"
[ON] button *11. Within two seconds, press the [ENABLE]
button on the operation panel.
The X/Y table will move to the selected step position.
(11) When the new PCB origin offset is entered formally, press the
[End] button *10.
The "Is data saved temporarily ?" window is displayed.
Changing the Current Pattern Program Data (Save)
When the [YES] button is pressed in the "Is data saved
temporarily ?" window, the "Overwrite data. Is it OK ?"
window is displayed.
Press the [YES] button, then the temporarily entered data
about the PCB origin offset will be overwritten.

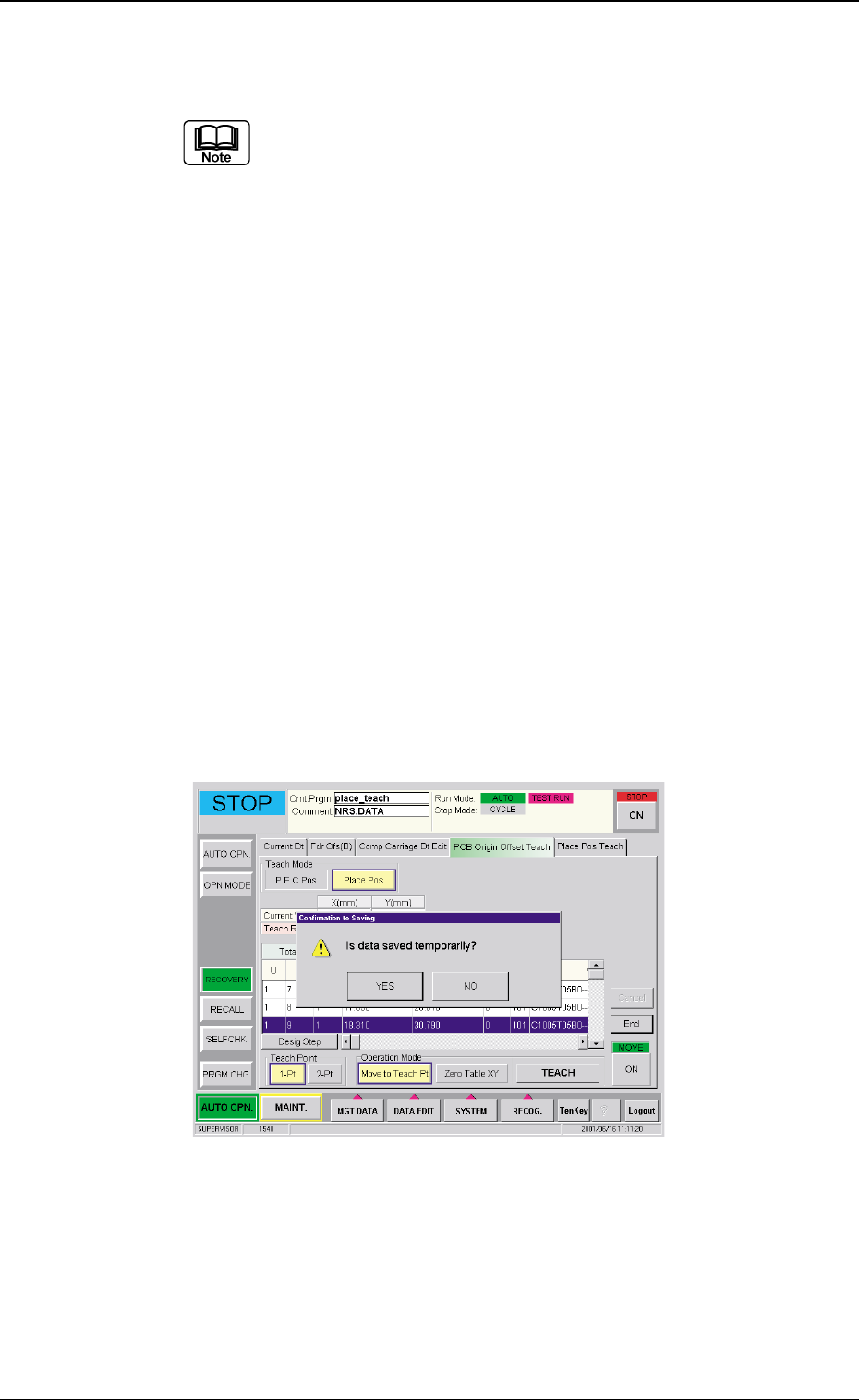

Fig. 3 "Confirmation to Saving" Window
0301-002
4. PCB Origin Offset Teach
13 Tg0590-PM-SO
Maintaining the Current Pattern Program Data (Save As)
When the [NO] button is pressed in the "Is data saved tem-
porarily ?" window, the "File Name Entry" window is indi-
cated.
Enter the new file name and press the [SET] button.
The temporarily saved PCB origin offset data is saved with a
newly entered file name.
Deleting the Teach Data (All Teach Data Delete)
Press the [NO] button in the "Is data saved temporarily ?"
window.
0301-001
4. PCB Origin Offset Teach
14 Tg0590-PM-SO
5. Placement Position Teach
Pn and On are taught as follows.
0301-002

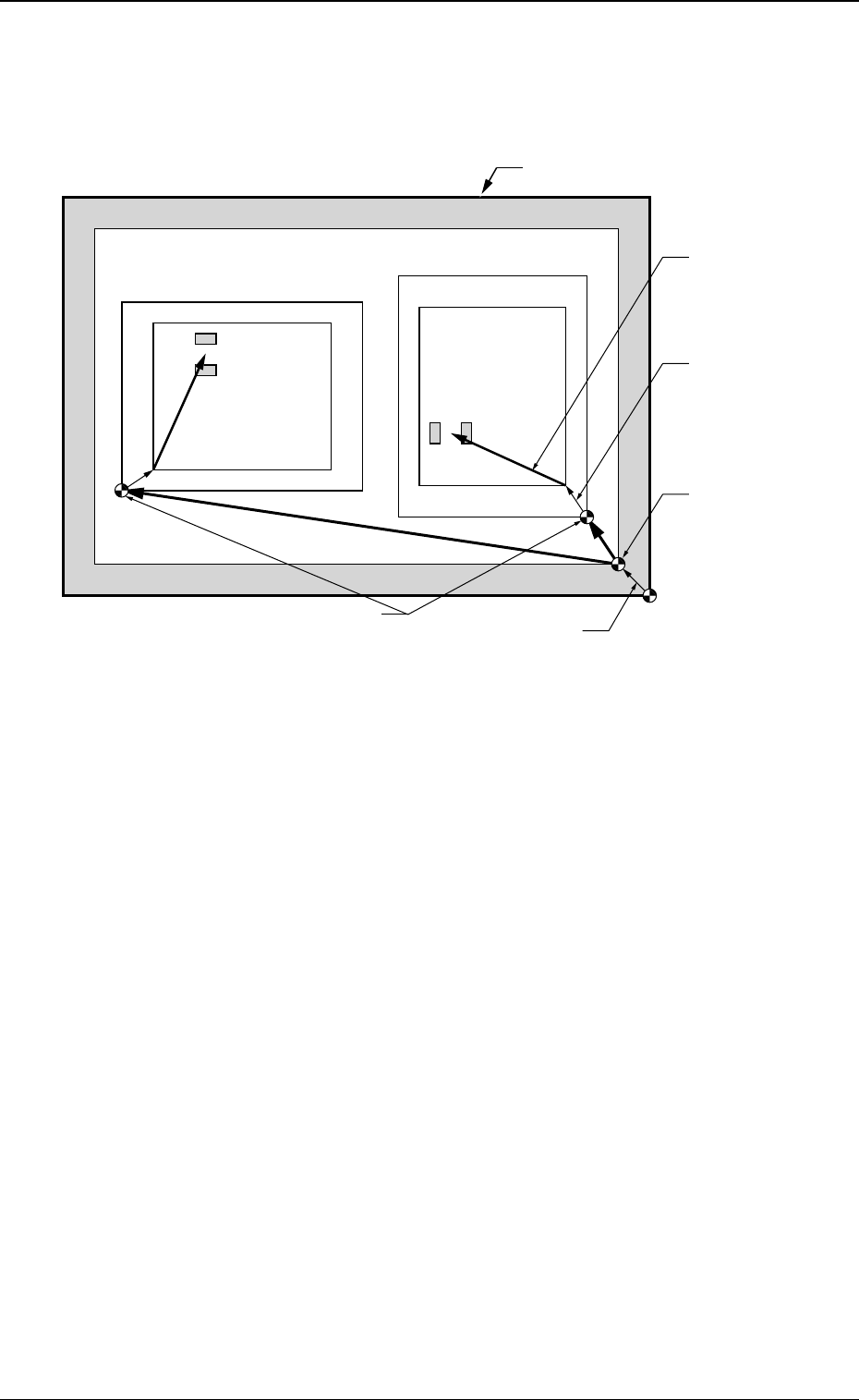

Fig. 4 Items to be Taught in Placement Position Teach
5. Placement Position Teach
Unit Pattern Angle: 270
°
Unit Pattern Angle: 0
°
Pn
Pn
PCB Outermost Shape
Placement
Position
O
2
O1
PCB Positioning
Reference
Pattern Origin
Unit Control
Offset
PCB Origin
PCB Origin Offset
