5 Tg0590-PM-SO 3. Notes on T eaching Operation Notes on T eaching Operation • Before performing the placement position teach operation, always check that the PCB origin offset is correct on the "PCB Origin Of fset T…
4 Tg0590-PM-SO0301-002
1. Scope
••
••
• PCB Origin Offset Teach
When the placement position in the pattern program deviates in
both X and Y directions, the deviation can be corrected by changing
the values in "PCB Origin Offset (X, Y)" of the operation data.
This function semi-automatically estimates the deviation by using
the P.E.C. recognition camera and shows the resultant values in
the "PCB Origin Offset (X, Y)" in order to correct any deviations in
X and Y directions.
••
••
• Placement Position Teach
The PCB pattern is displayed within the window size using the
P.E.C. recognition camera to check that each placement position
specified in the pattern program is correct.
If not correct, this function corrects the pattern program data by
using the manual alignment function (matching operation of compo-
nent outline display and PCB pattern using the pointing device).
2. Data to be Taught
The following are data items to be taught.
(1) PCB Origin Offset Teach
• PCB Origin Offset (X, Y)
This is on the operation data in the pattern program.
(2) Placement Position Teach
• PCB Placement Position P1 to Pn Step (X, Y) on Placement
Data (P).
• Pattern Origin O1 to On Coordinates (X, Y) on the Placement
Data (O).
1. Scope
5 Tg0590-PM-SO
3. Notes on Teaching Operation
Notes on Teaching Operation
• Before performing the placement position teach operation, always
check that the PCB origin offset is correct on the "PCB Origin Offset
Teach" tab sheet. If not correct, at first perform the PCB origin
offset teach operation.
Notes on PCB Origin Offset Teach Operation
• As the PCB origin offset teach operation affects all coordinate data
in the pattern program, this operation can be performed only when
the machine operation status is shown as STOP.
Notes on Placement Teach Operation
• When the P.E.C. recognition is set to ON on the pattern program
data, all the P.E.C. recognition processing should be completed
before the placement position check in the placement position
teach operation.
If the P.E.C. recognition has been set to ON, when the teaching is
started while the machine is stopped, the P.E.C. recognition will be
performed at first.
Bad Mark Processing Operation
• When the UNIT P.C.B. B.B.R. function is set to ON on the pattern
program data, the bad marks are not detected in the placement
position teach operation. All unit PCBs are subject for the teaching.
0301-002
3. Notes on Teaching Operation
6 Tg0590-PM-SO
4. PCB Origin Offset Teach
The PCB origin offset teaching operation is performed.
The PCB origin offset is the datum designating the reference for all
coordinate data set on the pattern program.
This offset is used for the pattern data where the PCB on the mother
board has an edge (ear) with no pattern, or when the actual pattern is
not evenly dispersed.
0301-002

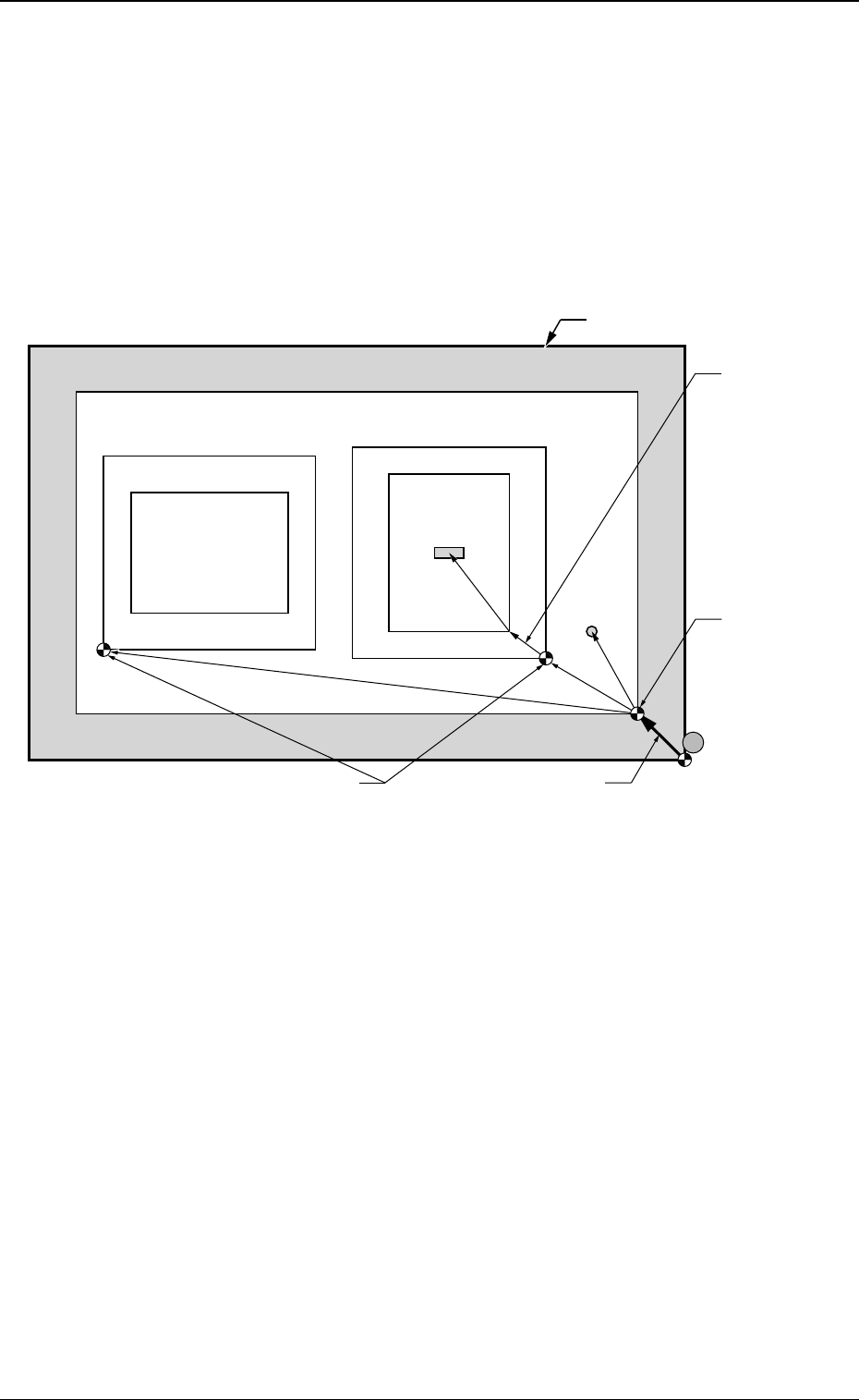

Fig. 1 Items to be Taught in PCB Origin Offset Teach Operation
4. PCB Origin Offset Teach
Unit Pattern Angle: 270
°
Unit Pattern Angle: 0
°
Pattern Domain
PCB Outermost Shape
Component
Placement
Position
Whole PCB
Recognition
Mark
O
1
O
2
PCB Origin Offset
Outline
Positioning Pin
PCB Positioning
Reference
Pn
Pattern Origin
Unit Control
Offset
PCB Origin
