4 80S-20/OPTIONS Circu it Diagrams 94 00327615-020101TD3 Control unit, dual conv ey or (view ed from the front/bac k) (assemblies o verview) 26 21 17 10 6 Half bridge board 26.06.1996 Dietel 1. Wer Wer 2. 14.05.97 14.05.…

4 80S-20/OPTIONS Circuit Diagrams 93

00116025-020101LD3 Dual conveyor, stationary side left-hand side/right-hand side

Conversion board

16.05.97

16.05.97 Tu.

Tu.

05.11.1996

SMD Placement System 80S20/F

Dual conveyor, stationary side

left-hand / right-hand side

00116025-020101LD3

SIEMENS

Aktiengesellschaft

AUT 5 BPB BS1

Date

Author

Check.

Stand.

Name

File name:

Stat.

Modified

Date

Name

(Drawing number)

Format A4

Drawing no.: FS PS DS S/F

Sheet

Scale

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung ihres

Inhaltes nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen

verpflichten zu Schadenersatz. Alle Rechte für den Fall der Patenterteilung oder GM-

Eintragung vorbehalten.

Copying of this document, and giving it to others and the use or communication of the

contents thereof, are forbidden without express authority. Offenders are liable to the

payment of damages. All rights are reserved in the event of the grant of a patent or the

registration of the utility model or design.

Function status

Product status

Document status

(a1_1to1.vsd)

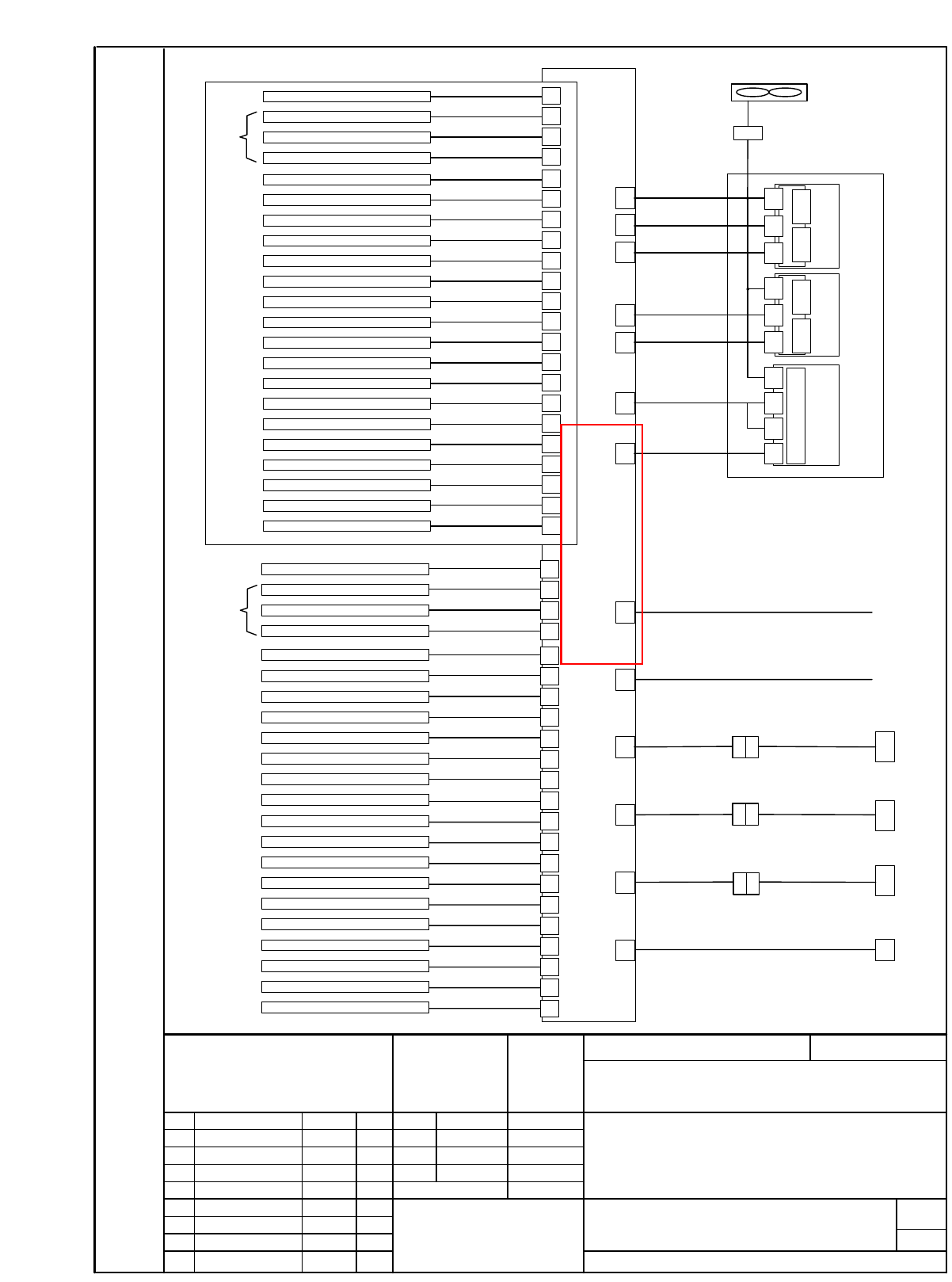

Step motor control

00 327 615-xx

Lift/width 1

X7 X10 X11 X8 X9 X2X1 X5X3 X13X12X4

X14

X2sf X4sg X2sg

Half bridge Lift/width 2

X3X2 X3 X4 X5 X5X4X3X4 X5

X2 X1 X2 X1

00326070-01

To servo

To S5-I/O boards

terminal strip

00321505-03 (S2)

00321778-03 (F4)

00329284-01

00321780-03 (F4)

00321501-04(S4/F4)

00321507-03 (S4)

0011602521.vsd

1/1

00325581-03

X5´

X3´

X4´

00326063-01

00326061-01

00326064-01

00326062-01

00326065-01

00326067-01

00331297-01

00326068-01

00326069-01

00329285-01

00329283-01

Dietel

X5d

Fan

X24 X26 X28 X30 X32 X34 X36 X38 X40 X42 X44 X46 X48 X18 X20 X22 X16 X14

Conveyor 1

Bero, position width adjustment 1

Bero, lifting table top pos. 1

Bero, lifting table bottom pos. 1

switch, width wider 1

Switch, width narrower 1

Sonar bero, input conveyor 1

Sonar bero, center conveyor 1

Sonar bero, output conveyor 1

Bero, stopper 1

Valve, stopper 1

Adhesive wiper facility 1

Bero, ceram. subst. centering 1

Valve, ceram. subst. centering 1

Motor, input conveyor 1

Motor, center conveyor 1

Motor, output conveyor 1

Motor, width adjustment 1

Motor, lifting table 1

00326017-02

00326020-02

00326021-02

00326018-02

00326019-02

00326022-01

00326023-01

00326024-01

00326025-02

00326026-02

00326027-01

00326029-01

00326032-01

00326031-02

00326033-02

00326030-02

00326034-01

00326028-01

X50 X52 X54 X56

Light barrier, input conveyor 1

Light barrier, center conveyor 1

Light barrier, output conveyor 1

Ceramic substrate centering 1

00330944-01

00330946-01

00330945-01

00330950-01

Special design

Bosch

Option

fluxing

Conveyor 2

X25 X27 X29 X31 X33 X35 X37 X39 X41 X43 X45 X47 X49 X19 X21 X23 X17 X15

00326058-01

Bero, position width adjustment 2

Bero, lifting table top pos. 2

Bero, lifting table bottom pos. 2

Switch, width adjust. wider 2

Switch, width adjust. narrower 2

Sonar bero, input conveyor 2

Sonar bero, center conveyor 2

Sonar bero, output conveyor 2

Bero, stopper 2

Valve, stopper 2

Adhesive wiper facility 2

Bero, ceram. subst. centering 2

Valve, ceram. subst. centering 2

Motor, input conveyor 2

Motor, center conveyor 2

Motor, output conveyor 2

Motor, width adjustment 2

Motor, lifting table 2

00326035-02

00326038-01

00326039-01

00326036-01

00326037-01

00326041-01

00326042-01

00326043-01

00326044-02

00326045-02

00326047-01

00326049-01

00326051-01

00326052-01

00326053-02

00326054-02

00326056-02

X51 X53 X55 X57

00330951-01

Light barrier, input conveyor 2

Light barrier, center conveyor 2

Light barrier, output conveyor 2

Ceramic substrate centering 2

00330947-01

00330948-01

00330949-01

Special design

Bosch

Option,

fluxing

See page 126

4 80S-20/OPTIONS Circuit Diagrams 94

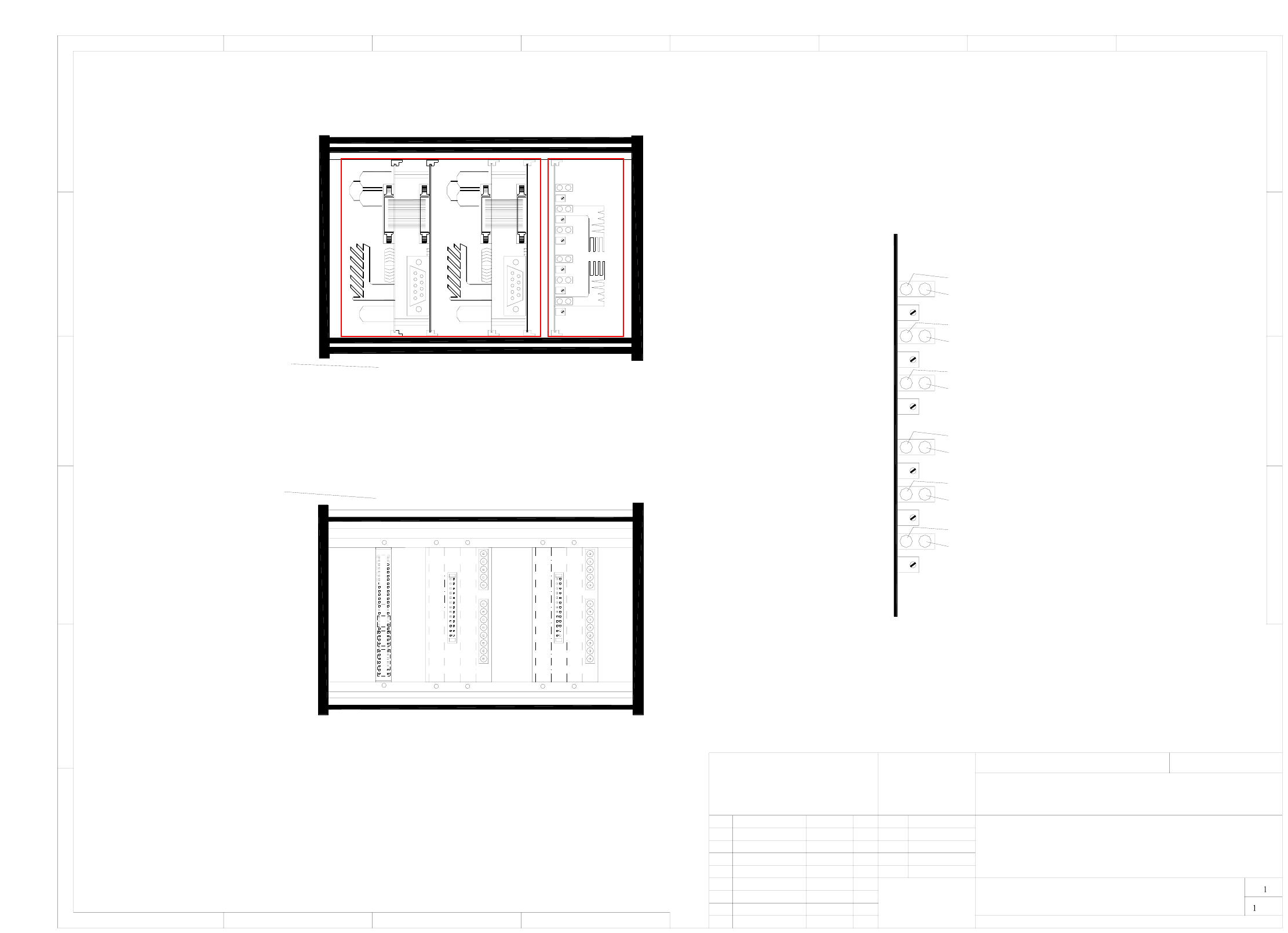

00327615-020101TD3 Control unit, dual conveyor (viewed from the front/back) (assemblies overview)

26 21 17 10 6

Half bridge board

26.06.1996

Dietel

Wer

14.05.97

Wer

80S20/DCTA/

32761521_d

(assemblies overview)

Input conveyor 2

Output conveyor 2 slow 2

Input conveyor 2 fast

Output conveyor 2

Output conveyor 2 slow 1

X4c X5c X2c

X3c

X3a

X5a

X4a

X3b

X5b

X4b

Half bridge board

Backplane, twin step

motor board, conveyor 1

Backplane, twin step

motor board, conveyor 2

Viewed from the back

module rail hole no.

Board rail in

Viewed from the front

22/2318/1911/12 25/267/8

Twin step motor board, conveyor 2

Twin step motor board, conveyor 1

Output conveyor 2 fast

Center conveyor 2

Center conveyor 2 slow

Center conveyor 2 fast

Center conveyor 1

Center conveyor 1 slow

Center conveyor 1 fast

Output conveyor 1

Output conveyor 1 slow 1

Output conveyor 1 fast

Input conveyor 1

Output conveyor 1 slow 2

Input conveyor 1 fast

Half bridge board

(viewed from the front/back)

Control unit, dual conveyor

00327615-020101TD3

Siemens AG

243

2345678

AUT5-BSM

SMD-Placement System Siplace 80S20

Function status

Doc. status

Product status

Multipole connector / backplane

of module rail.

Mat.-Nr. :

CAD file:

Stat. Modified Date Name

Author

Stand.

Check.

Date

Scale

Sh.

in internally threaded hole no.

See page 125

See page 124

4 80S-20/OPTIONS Circuit Diagrams 95

00117185-010101FD4 110/208V conversion kit for SIPLACE 80 S20 / S23 / F4 / F5 (Sh. 1 of 2)

00117185-010101FD4 110/208V conversion kit for SIPLACE 80 S20 / S23 / F4 / F5 (Sh. 2 of 2)

01.

14.01.99

14.01.99 Tek

Tek

14.01.1999

09.02.99

SMD Placement Systems 80 S20 / S23 / F4 / F5

Conversion kit 110/208V

for SIPLACE 80 S20 / S23 / F4 / F5

00117185-010101FD4

SIEMENS

Aktiengesellschaft

PL EA 1 E2

Date

Author

Check.

Stand.

Name

Filename:

Stat.

Modified

Date

Name

(Drawing number)

Format A4

Drw. no.: FS PS DS S/F

Sheet

Scale

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung ihres

Inhaltes nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen

verpflichten zu Schadenersatz. Alle Rechte für den Fall der Patenterteilung oder GM-

Eintragung vorbehalten.

Copying of this document, and giving it to others and the use or communication of the

contents thereof, are forbidden without express authority. Offenders are liable to the

payment of damages. All rights are reserved in the event of the grant of a patent or the

registration of the utility model or design.

Function status

Product status

Document status

(a1_1zu1.vsd)

00117185.vsd

1/2

Berger

Instructions for converting SIPLACE 80 S20 / S23 / F4 / F5

from 230/400V to 110/208V

a) Terminal panel (right side)

Terminal panel (right side) S20/F4: 00321510

Terminal panel (right side) S23 : 00337342

- BR3/4 jumpers N terminal

↔

PE terminal

Note re BR3/4 :

BR3/4 jumpers should only be used in a 4-wire system.

b) Power supply for S20 / S23 / F4 / F5

Power supply for S20/F4: 00321086

Power supply for S23 : 00336812

- Transformer T1 Pin 6

⇒

Pin 4

- Transformer T2 Pin 1

⇒

Pin 7 ( 400

⇒

208 )

Pin 2

⇒

Pin 8 ( 400

⇒

208 )

Pin 3

⇒

Pin 9 ( 400

⇒

208 )

-Fuse F1 16A

-Fuse F2 16A

-Fuse F3 10A

- Inrush current limiter A1 400V

⇒

230V

From FS05 onwards

(power supply for S20/F4 00321510) and

from FS02 onwards

(power supply for S23 00336812), follow the instructions on the 3rd page of the circuit

diagram when carrying out the conversion:

- Inrush current limiter ESP-S20 A1 400V

⇒

230V

(Material number: 00342988-01 )

TN-C system:

Neutral and protective earth

functions are combined in a

single conductor throughout

the system - the PEN conductor.

L 1

L 2

L 3

Grounding of system

01.

14.01.99

14.01.99 Tek

Tek

14.01.1999

09.02.99

SMD Placement Systems 80 S20 / S23 / F4 / F5

Conversion kit 110/208V

for SIPLACE 80 S20 / S23 / F4 / F5

00117185-010101FD4

SIEMENS

Aktiengesellschaft

PL EA 1 E2

Date

Author

Check.

Name

Filename:

Stat.

Modified

Date

Name

(Drawing number)

Format A4

Drw. no.: FS PS DS S/F

Sheet

Scale

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung ihres

Inhaltes nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen

verpflichten zu Schadenersatz. Alle Rechte für den Fall der Patenterteilung oder GM-

Eintragung vorbehalten.

Copying of this document, and giving it to others and the use or communication of the

contents thereof, are forbidden without express authority. Offenders are liable to the

payment of damages. All rights are reserved in the event of the grant of a patent or the

registration of the utility model or design.

Function status

Product status

Document status

(a1_1zu1.vsd)

00117185.vsd

2/2

Berger

a) Service socket 00300272

- Plug-in adapter X1

b) Transformer for component table 00301239

- Transformer T1 Pin 5

⇒

Pin 4

- Fuse F1 3.16AT

⇒

6.30AT

- Adhesive label 6.3AT/110V

c) Power supply for WPC 00320064

- Transformer T1

⇒
