Page 1-14 2) Removing the Fixing Brackets (Red) Remove all the fixing brackets. Keep the removed brackets. 3) Height Adjustment and Leveling Level the rear-side height with the reference height of the CM301. [1] Adjust t…
Page 1-13
INSTALLATION
1
1-2-2 DT40T-40U Installation Procedure
Coupling DT40T-40U to CM301
1) The Transport State of the Machine
During the machine transport, the fixing brackets (red) fix
the lift shafts and the drawers not to move.
4X4C-E-IMA01-A01-00
1.Multi-step Tray Lift Fixing
Bracket (Two in All)
2. Multi-step Tray Drawer Fixing
Bracket (Two in All)
View seen from A View seen from A
A
4M4C-AG00
4X4C-010E
4X4C-011E
Page 1-14
2) Removing the Fixing Brackets (Red)
Remove all the fixing brackets. Keep the removed brackets.

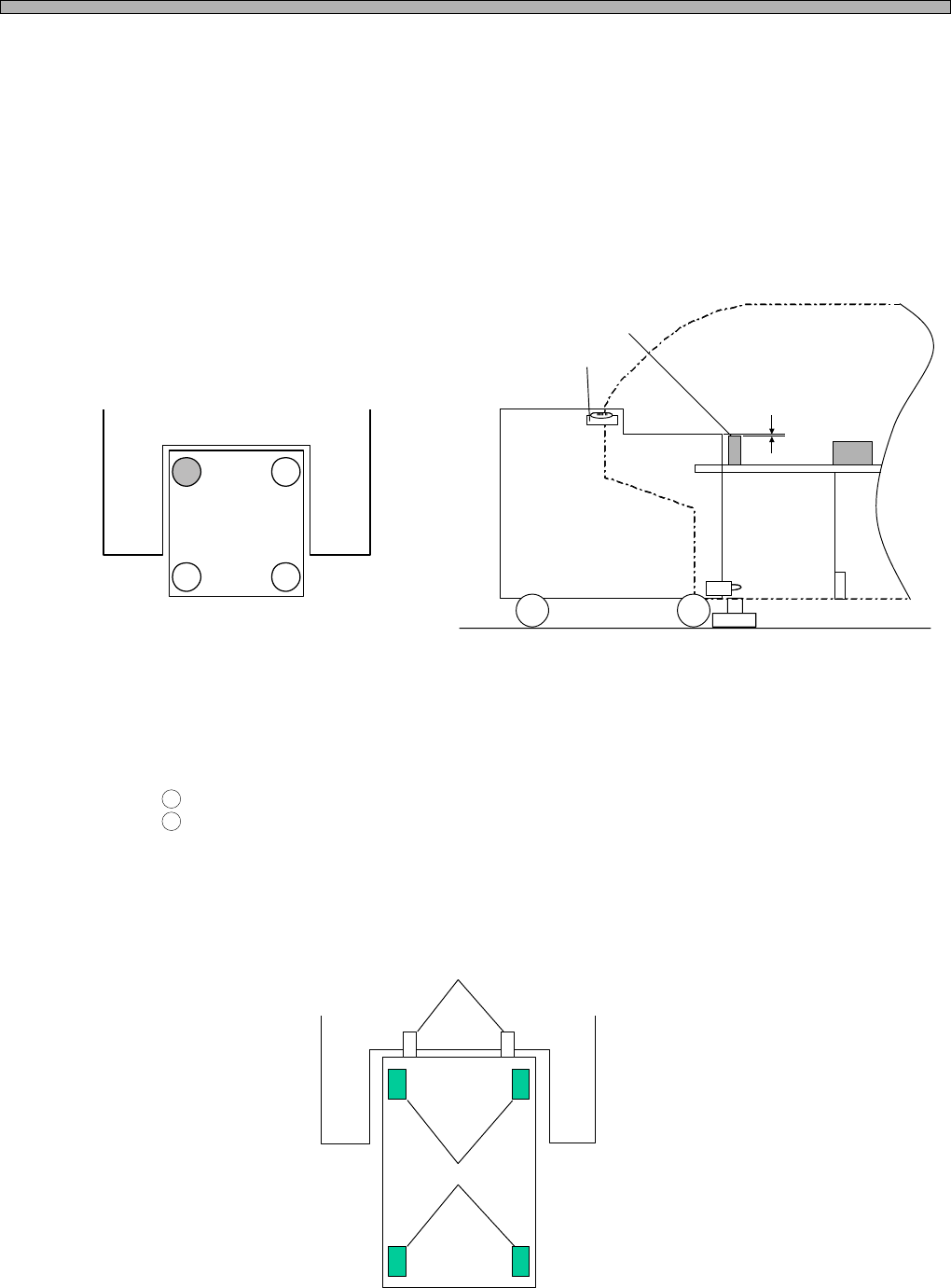

3) Height Adjustment and Leveling
Level the rear-side height with the reference height of the CM301.
[1] Adjust the adjuster bolt of the caster A so that the height will be ± 1 mm or under against the
heiight check post. After adjusted, fix the bolt by tightening the lock nut.
[2] While checking the built-in level, Adjust the adjuster bolts of the caster B, C and D so that the
height will be ± 0.3 mm/m or under.
4) Inserting DT40T-40U into the CM301
[1] Insert the DT40T into the CM301.
[2] Check if they are level.
1
Is the value of the level ± 0.3 mm/m or under?
2
Isn’t the caster A or B floating?
If floating, the coupling pins have run up onto the machine. Pull the DT40T out of the CM301,
and insert it again.
[3] When the above check points are cleared, fix the adjuster bolts of the caster B, C and D by
tightening the lock nuts.
4X4C-E-IMA01-A01-00
4X4C-006E
4X4C-003E
4X4C-004E
Height Check Post
Level
± 0.3 mm/m or under
± 1 mm or under
Coupling Pin
Caster
A
C
B
D
A
C
B
D
Page 1-15
INSTALLATION
1
4X4C-E-IMA01-A01-00
[4] Then check the space between the DT40T-40U and CM301.
1
Is the insertion space against the CM301 within 5 mm ± 2 mm?
2
Is the difference in level between the nozzle changer and the DT40T within 9 mm ± 4 mm?
[5] When the above check points are cleared, attach the fixing brackets and fix the DT40T-40U to
the CM301 by using the coupling settlement knobs.
NOTICE
The power and air sources of the DT40T are supplied from the CM301. When the
power of the CM301 is turned ON, that of the DT40T is also turned ON.
6) Connecting to the Power Source, the Air Source and the Signal Cables
Connect the power source, the air source and each signal cable with the CM301.
7) Adjusting the Air Pressure
Adjust the regulator so that the secondary air pressure is 0.30 MPa to 0.35 MPa.
∗ Adjust the air pressure of the CM301 beforehand.
M92E
POWER AND AIR SOURCES SHOULD BE CONNECTED AT THE LAST OF
INSTALLING OPERATION.
If they are connected earlier, you may get an electric shock or injured.
WARNING
4X4C-005E
4X4C-013E
Upper Cover
Rear Cover
Nozzle Changer
(Upper Side of the Shutter)
