Page 1-16 4X4C-E-IMA01-A01-00 Final Check of Leveling After the DT40T -40U is fixed to the CM301, finally check leveling by performing the following procedure. 1) T urning ON the Power of the CM301 T urn ON the power swi…
Page 1-15
INSTALLATION
1
4X4C-E-IMA01-A01-00

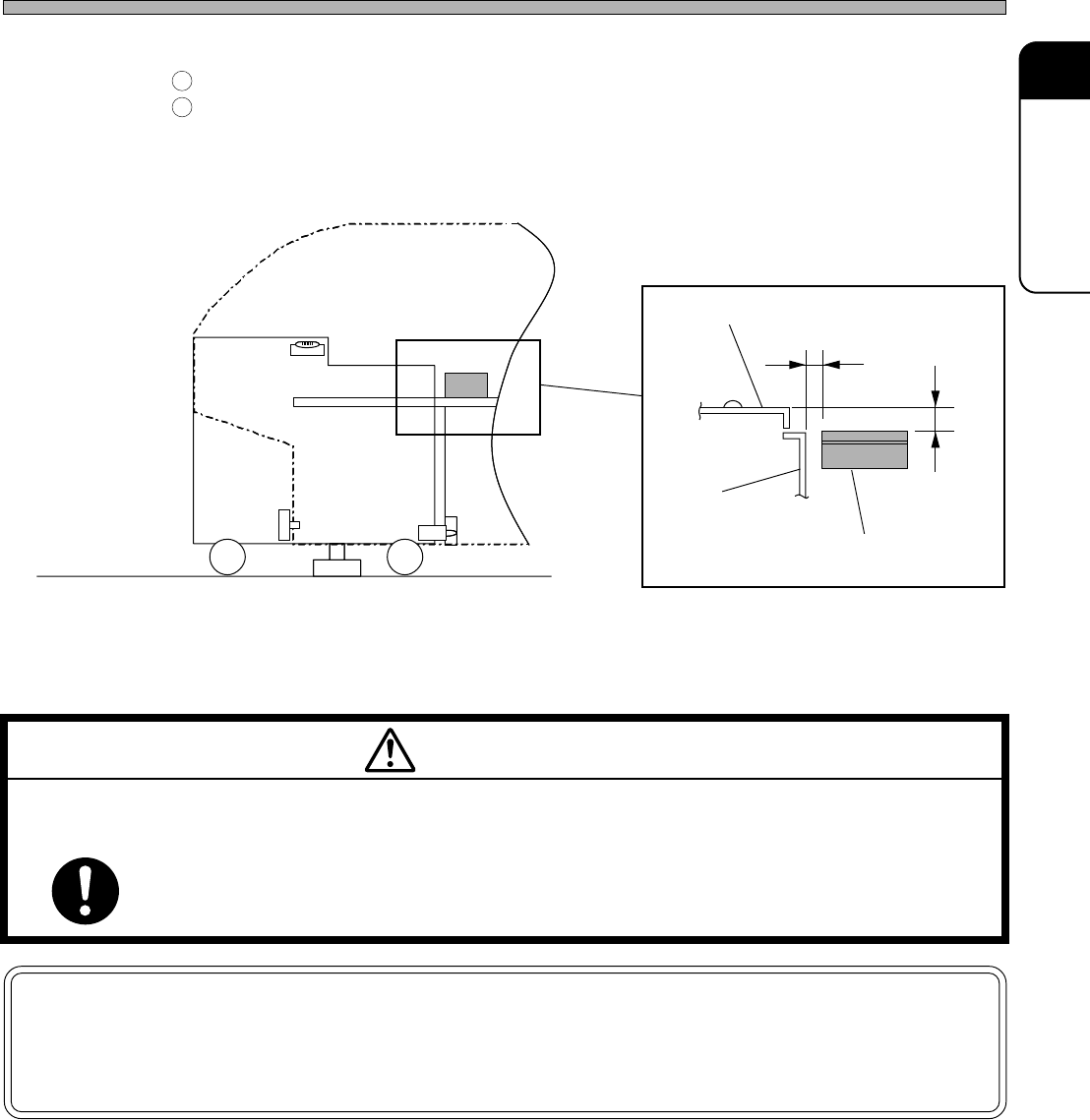

[4] Then check the space between the DT40T-40U and CM301.
1
Is the insertion space against the CM301 within 5 mm ± 2 mm?
2
Is the difference in level between the nozzle changer and the DT40T within 9 mm ± 4 mm?
[5] When the above check points are cleared, attach the fixing brackets and fix the DT40T-40U to
the CM301 by using the coupling settlement knobs.
NOTICE
The power and air sources of the DT40T are supplied from the CM301. When the
power of the CM301 is turned ON, that of the DT40T is also turned ON.
6) Connecting to the Power Source, the Air Source and the Signal Cables
Connect the power source, the air source and each signal cable with the CM301.
7) Adjusting the Air Pressure
Adjust the regulator so that the secondary air pressure is 0.30 MPa to 0.35 MPa.
∗ Adjust the air pressure of the CM301 beforehand.
M92E
POWER AND AIR SOURCES SHOULD BE CONNECTED AT THE LAST OF
INSTALLING OPERATION.
If they are connected earlier, you may get an electric shock or injured.
WARNING
4X4C-005E
4X4C-013E
Upper Cover
Rear Cover
Nozzle Changer
(Upper Side of the Shutter)
Page 1-16
4X4C-E-IMA01-A01-00
Final Check of Leveling
After the DT40T-40U is fixed to the CM301, finally check leveling by performing the following
procedure.
1) Turning ON the Power of the CM301
Turn ON the power switch of the CM301. At the same time, the power of the DT40T will be turned
ON.
2) Traveling the Drawer Shaft to the Supply Area Height
Perform the following operations at the “Machine Adjustment” screen in the serviceman mode.
NOTICE
Users cannot perform operations in the serviceman mode. (The key disk is
required.)Entrust these operations to a serviceman.
[1] Perform “Returning to Origin”.
[2] Make sure the supply shutter is “open”
by a visual inspection.
[3] Enter the “Shaft Traveling” mode.
[4] Press AR .
[5] Press TLA .
[6] Make sure the “Current Position” is ± 3.
• If Mit is not within ± 3, perform “Returning to
Origin”.
[7] Press Distance , and input “422”.
[8] Press Z↑ .
• The lift shaft will be raised up.
[9] Press TLB .
[10] Perform steps [6] to [8].
• The lift shaft will be raised up, in the same way
as the A side.
Traveling to
the supply position
4X4C-007E
Page 1-17
INSTALLATION
1
4X4C-E-IMA01-A01-00
3)
Checking the Difference in Level between the Drawer Shaft ResinGuide and the
Fixed Guide at the CM301 side

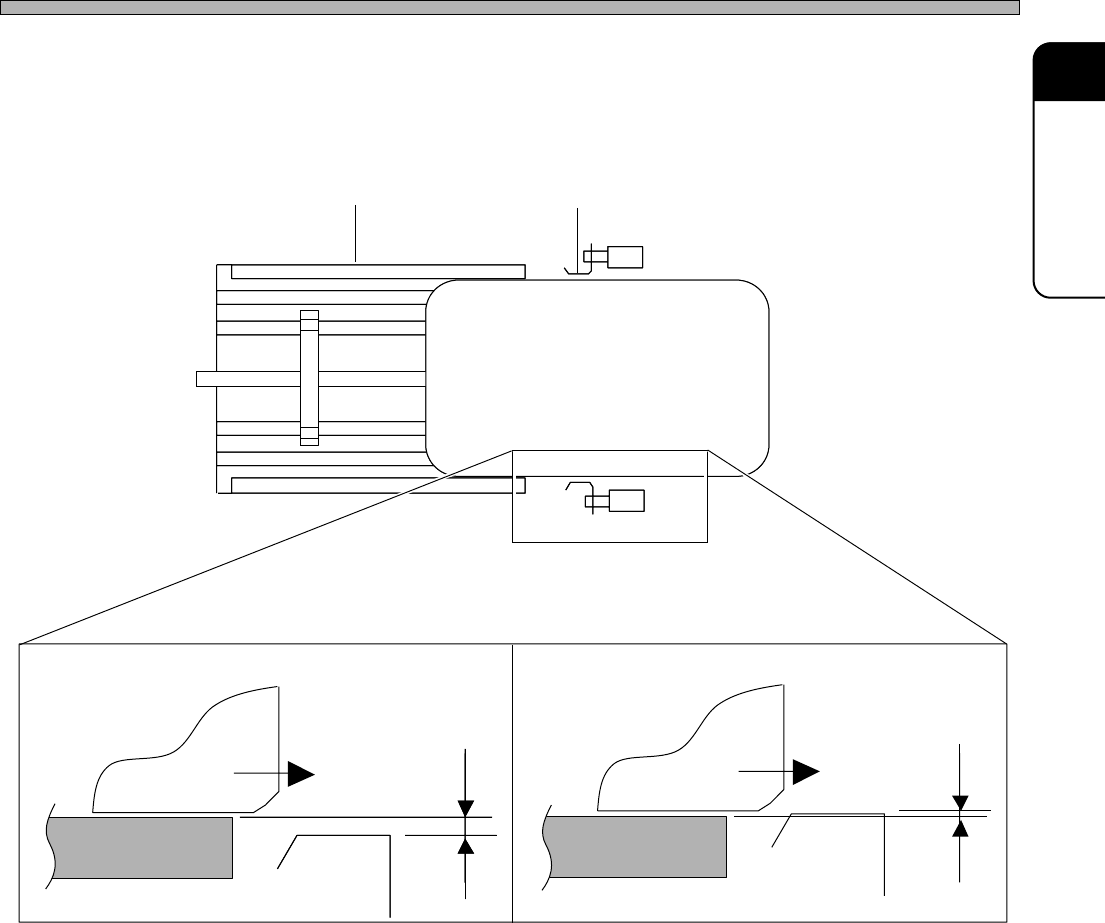

Make sure the pallet drawn out from the drawer is not interfered with the fixed guide at the DT40T.
• There are four checkpoints. Each one is on right and left for each side (A and B).
∗ If interfered, perform leveling again.
4) Performing the Tray Pickup Position Teaching
Teach the “tray pickup position” at the machine parameters teaching.
• See the Maintenance Manual for how to operate
4X4C-008E
4X4C-009E
Drawer Guide of the Main Body
Pallet
Not Interfered
Interfered
OK NG
