Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006 Fig. 2-14: Network configuration Note: Normally you will see one network conne ction “Local Area Connection”. → Click on “Local Area Conn ection”…
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006
Windows 2003 is searching for feasible driver software during the first reboot. You have to wait.
Windows 2003 will switch screen resolution several times to find best support for your hardware.
Note:
Windows can only find the driver software, which is bundled on the Windows installation.
You can adjust the driver configuration after Windows installation completes.
The computer will reboot and installation will be completed.
The logon screen will appear.

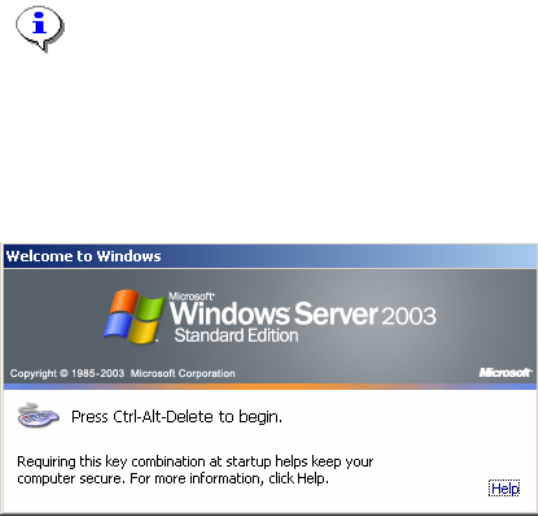

Fig. 2-13: Logon
→ Please logon to complete this part of installation.
2.2 Configure Network parameters
Windows will always configure the network configuration parameters automatically, if it can do that.
When no network infrastructure, like a DHCP Server, is available it will use some default values.
Normally it is necessary to adjust these parameters.
→ Start Configuration by selecting Start->Settings->Network Connections ->Local Area
Connection
You will see a Connection for every network card in your computer
15 / 34
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006
Fig. 2-14: Network configuration
Note:
Normally you will see one network connection “Local Area Connection”.
→ Click on “Local Area Connection”
16 / 34
Installation Manual for Windows 2003 Server (manual setup) Edition 04/2006
Fig. 2-15: Local Area Connection
Fig. 2-16: Configure Network connection
→ Select the network component “Internet Protocol (TCP/IP)”
→ Select the button Properties
17 / 34
